Chapter 1 Preparation — Precautions for use
22 - ENGLISH
Cautions when setting up the projector
f Use the adjustable feet only for the oor standing installation and for adjusting the angle. Using them for other
purposes may damage the projector.
f When using the projector in any method other than the oor installation using the adjustable feet or ceiling
mounting installation using the Ceiling Mount Bracket, use the four screw holes for ceiling mount (as shown in
the gure) to x the projector.
In such case, make sure that there is no clearance between the screw holes for ceiling mount on the projector
bottom and the setting surface by inserting spacers (metallic) between them.
f Use a torque screwdriver or Allen torque wrench to tighten the xing screws to their specied tightening torques.
Do not use electric screwdrivers or impact screwdrivers.
For the screws to x the projector, use commercially available ISO 898-1 standard screws (made of carbon steel
or alloy steel).
(Screw diameter: M6, tapping depth inside the projector: 12 mm (15/32"), torque: 4 ± 0.5 N·m)

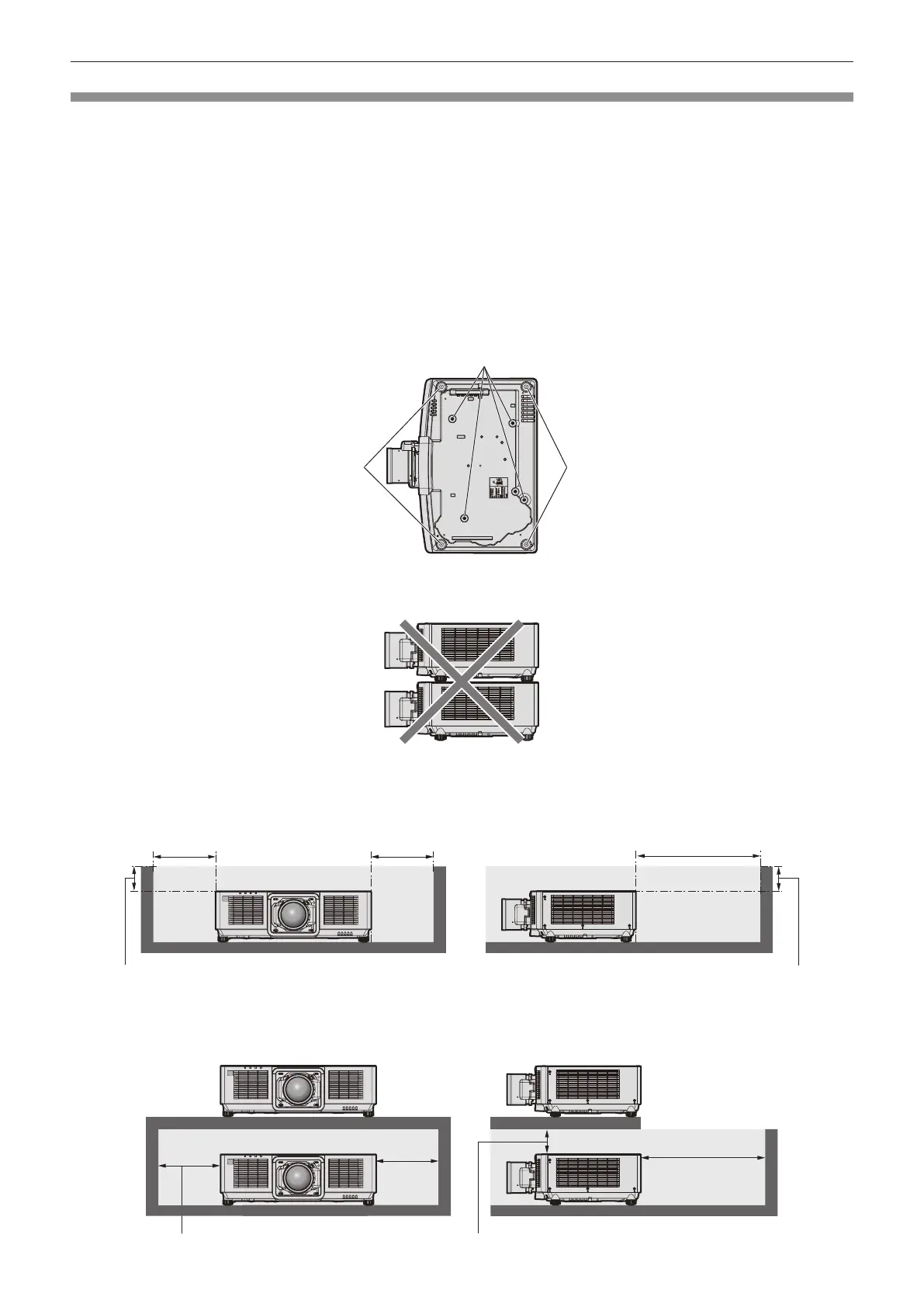

Positions of screw holes for ceiling mount and adjustable feet
f Do not stack projectors on top of each other.
f Do not block the intake/exhaust vents of the projector.
f Prevent hot and cool air from the air conditioning system or exhaust of other projectors from blowing directly to
the intake/exhaust vents of the projector.
f Do not install the projector in a conned space.
When installing the projector in a conned space, provide air conditioning or ventilation separately. Exhaust heat
may accumulate when the ventilation is not enough, triggering the protection circuit of the projector.
Adjustable feet Adjustable feet
Screw holes for ceiling mount (M6)
100 mm (3-15/16") or shorter100 mm (3-15/16") or shorter
300 mm (11-13/16")
or longer
300 mm (11-13/16")
or longer
600 mm (23-5/8")
or longer
300 mm (11-13/16") or longer
300 mm (11-13/16") or longer
600 mm (23-5/8")
or longer
100 mm (3-15/16") or longer
