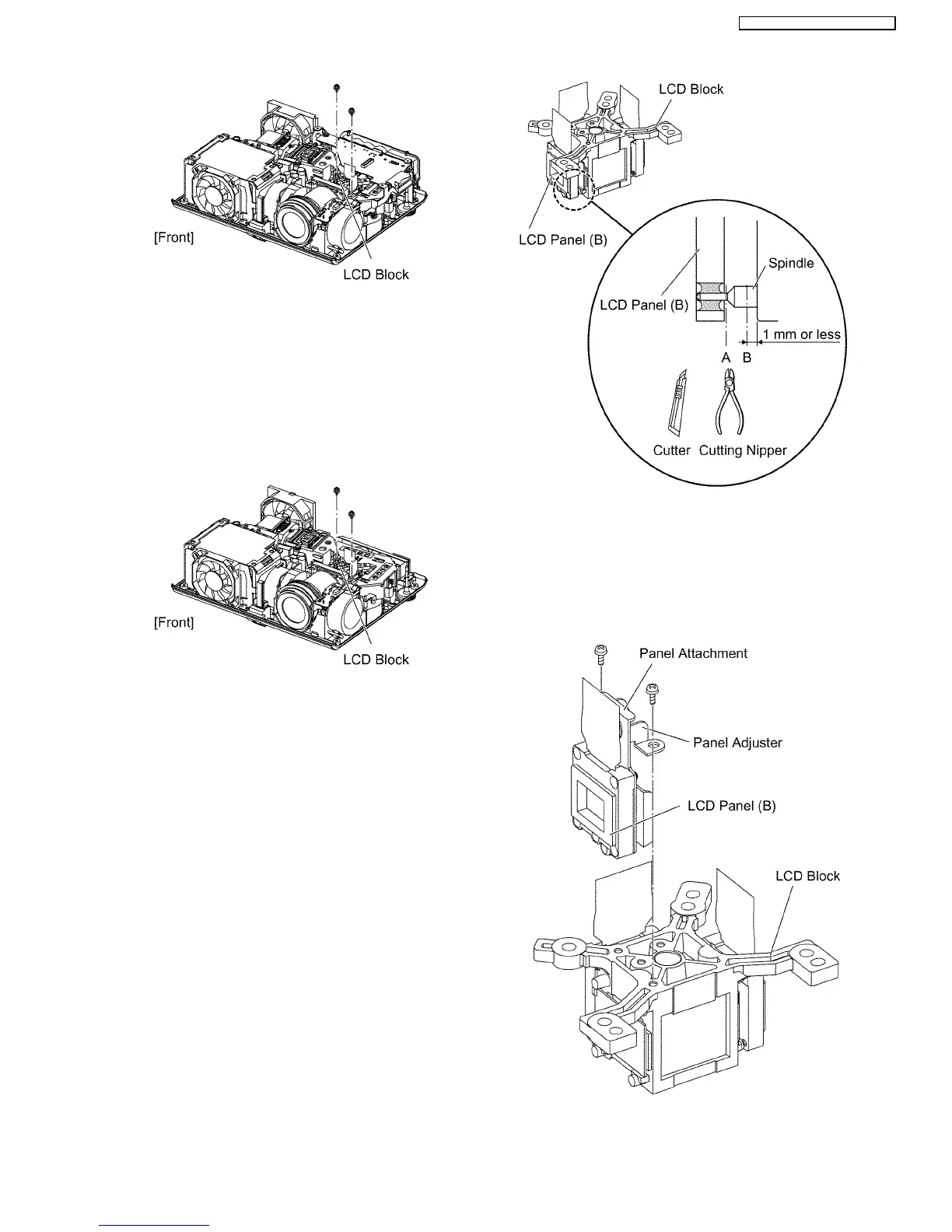

6.13. Replacement of LCD Panel (B)
1. Remove the A-P.C.Board block according to the steps 1
through 4 in the section 6.4. "Removal of J-P.C.Board".
2. Unscrew the 2 screws and remove the LCD block.
Note:
· Be careful not to touch the surface of prism and LCD
panel.
3. Cut the 4 LCD panel installation spindles at the position A
and remove the LCD panel.
4. Cut the 4 LCD panel installation spindles at the position B
and remove them.
Notes:
· Work carefully not to apply external force around the
spindle part by using a cutter, cutting nipper or the
like for cutting the spindle.
· Adjust the height after the spindle is cut to 1 mm or
less.
5. Tighten the 2 screws temporarily just until new LCD panel
(with the panel attachment and panel adjuster) can be
shifted by your fingers.
Note:
· THe panel adjuster complete set (adjuster and
attachment) is the option for service.
6. Reassemble the projector in the reverse order of
disassembling, but leave the upper case and the screws
15
PT-P1SDU / PT-P1SDE / PT-P1SDEA
