Panasonic pt-p1sdea

Ref.
No.
Part No. Part Name & Description Remarks
[MECHANICAL PARTS]
D4CDH5030003 TEMP SENSOR
1 DFGB0089VB-0 PANASONIC BADGE
2 K1HA15DA0002 VGA CABLE
3-1 K2CG3DR00005 POWER CORD PT-P1SDU
3-2 K2CM3DR00002 POWER CORD(EUROPE)
PT-P1SDE/EA
3-3 K2CT3DR00005 POWER CORD(UK) PT-P1SDEA
K4CF01000033 PIN
4 L0AA02A00064 SPEAKER
5 L5BDAXN00079 LIQUID CRYSTAL
DISPLAY(R)
L3P06S-45G10
(RED MARK)
6 L5BDAXN00083 LIQUID CRYSTAL
DISPLAY(G)
L3P06S-46G10
(GREEN MARK)
7 L5BDAXN00081 LIQUID CRYSTAL
DISPLAY(B)
L3P06S-45G10
(BLUE MARK)
5 L5BDAXN00082 LIQUID CRYSTAL
DISPLAY(R)
L3P06S-46G10
(RED MARK)
6 L5BDAXN00080 LIQUID CRYSTAL
DISPLAY(G)
L3P06S-45G10
(GREEN MARK)
7 L5BDAXN00084 LIQUID CRYSTAL
DISPLAY(B)
L3P06S-46G10
(BLUE MARK)
8 L6FAYYYH0002 POWER FAN
9 L6FAYYYH0003 FAN
10 L6FCYYYH0004 FAN 1
11 L6FCYYYH0005 FAN 2
12 N2QAYC000001 REMOTE CONTROLLER
13 RHD26046 SCREW
RPF0046-1 BAG
14 TBLB0052 ADJUST LEG(FRONT)
15 TBLB3174 ADJUST LEG(REAR)
16 TBLG3082 RUBBER LEG(REAR)
TBMG137 MODEL NAME PLATE PT-P1SDU
TBMG139 MODEL NAME PLATE PT-P1SDE
TBMG141 MODEL NAME PLATE PT-P1SDEA
TBMG138 MODEL NO. LABEL PT-P1SDU
TBMG140 MODEL NO. LABEL PT-P1SDE
TBMG142 MODEL NO. LABEL PT-P1SDEA
17 TBXA48401 CONTROL BUTTON
18 TEEC5216 DUCT 1
19 TEEC5217 DUCT 2
Ref.
No.
Part No. Part Name & Description Remarks
20 TEEC5218 DUCT 3
21 TEEC5225 SOCKET HOLDER
TEWA693 SHIELD GASKET
72 TEFC5031 RUBBER CAP
22 THEC084N SCREW (D-SUB)
23 TKGF0099-1 LENS
24 TKGP0031 POLARIZING PLATE/OUT(G)
25 TKGP5287 PBS
26 TKGP5288 POLARIZING PLATE/IN(R)
27 TKGP5289 POLARIZING PLATE/IN(G)
28 TKGP5290 POLARIZING PLATE/IN(B)
29 TKGP5291 POLARIZING PLATE/OUT(R)
30 TKGP5294 POLARIZING PLATE/OUT(B)
31 TKKC5232 LED PLATE 1
32 TKKC5233 LED PLATE 2
33 TKKC5234 LED PLATE 3
34 TKKC5235 REMOTE RECEIVER PLATE
35 TKKH5100 VENTILATION COVER
36 TKNE060 FILTER
37 TKPB00301 TERMINAL COVER
38 TKZF5044 TERMINAL PLATE
39 TKZJ5063 FAN INSTALL METAL
TMKG671 SPACER
40 TMKK242 SPEAKER GASKET
TMKX100 WASHER
41 TMKX987 INSULATION SHEET (A-PCB)
42 TMKX989 SHIELD SHEET (K-PCB)
43 TMKX990 POWER SHIELD SHEET
44 TMKX991 VENTILATION FAN COVER
45 TMKX992 SD SHELTER SHEET
46 TMKX993 SD SHELTER SHEET 2
47 TMKY007 POWER GUIDE PLATE
48 TMKY008 BALLAST GUIDE PLATE
TMME259 SPACER (PCB)
TMMX139 SPACER
49 TMXC022 TEMP FUSE INSTALL METAL
50 TMXE045 POWER HOLDER 1
51 TMXE046 POWER HOLDER 2
52 TMXE047 POWER HOLDER 3
53 TMXE048 POWER HOLDER 4
54 TMZX5057 FILTER INSTALL METAL
55 TNMX001 SHEET

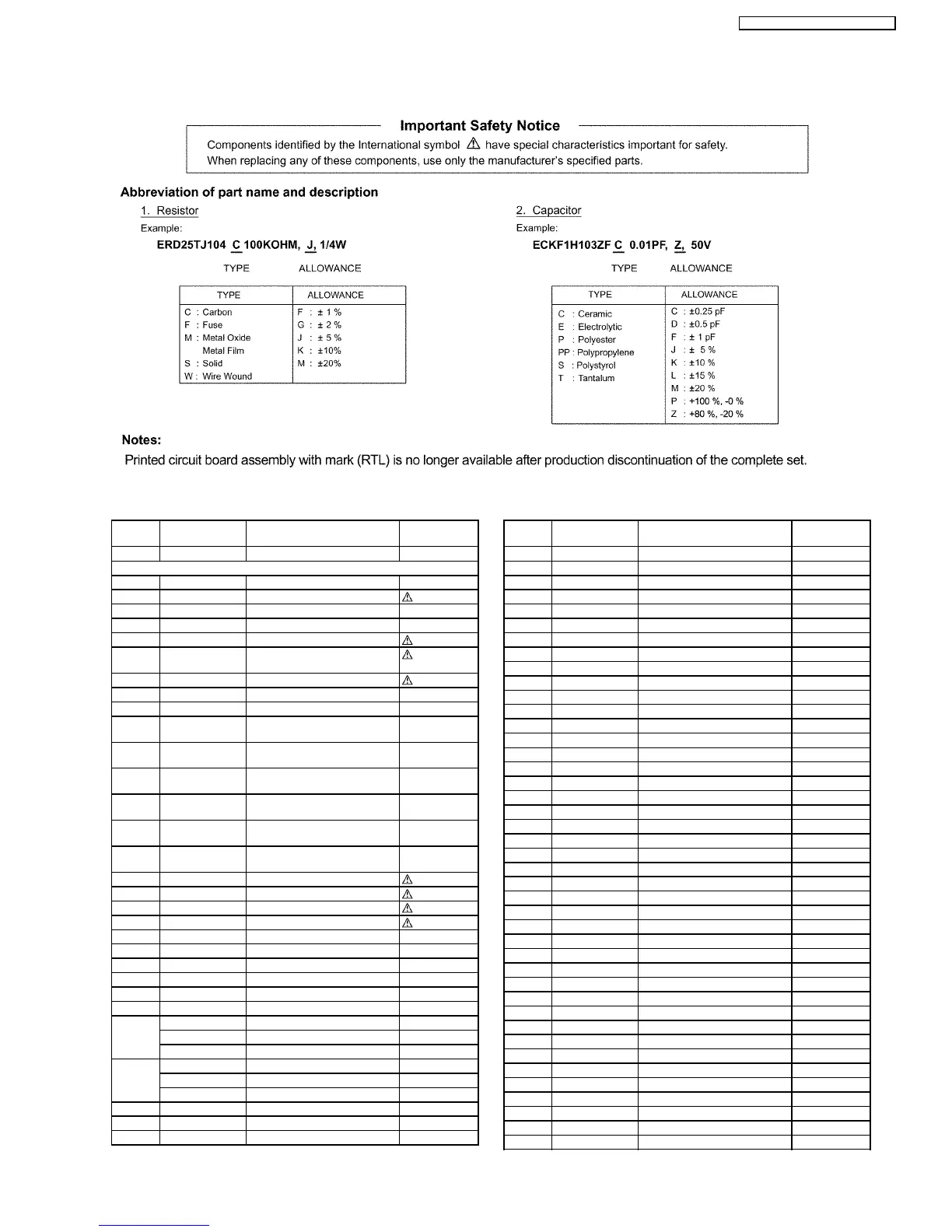

15 Replacement Parts List
63
PT-P1SDU / PT-P1SDE / PT-P1SDEA
