Panasonic RX-D50 - Disassembly of Top Cabinet Assembly

23

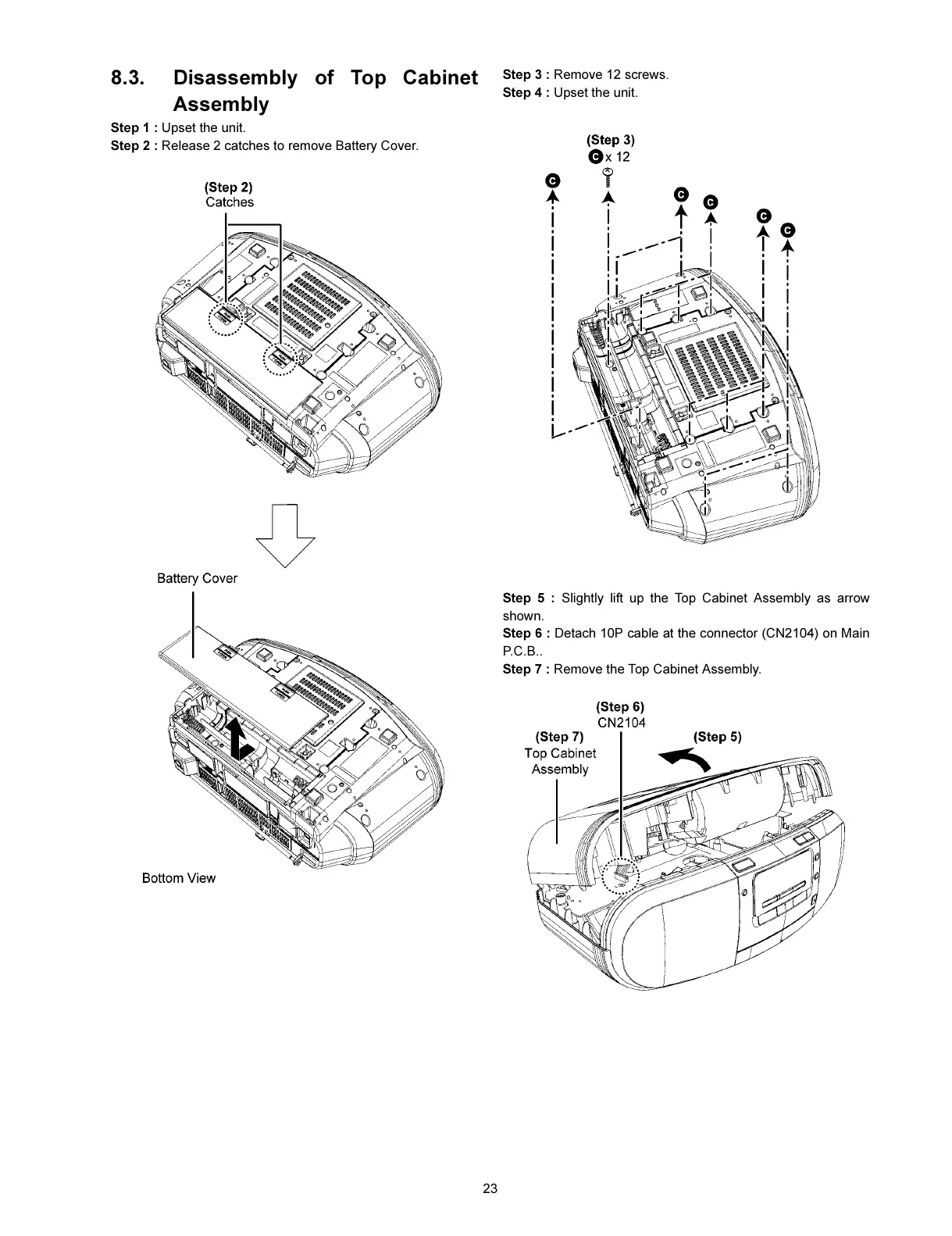

8.3. Disassembly of Top Cabinet
Assembly
Step 1 : Upset the unit.
Step 2 : Release 2 catches to remove Battery Cover.
Step 3 : Remove 12 screws.
Step 4 : Upset the unit.
Step 5 : Slightly lift up the Top Cabinet Assembly as arrow
shown.
Step 6 : Detach 10P cable at the connector (CN2104) on Main
P.C.B..
Step 7 : Remove the Top Cabinet Assembly.
