Panasonic RX-D50 - 10 Service Position; Checking & Repairing Deck P.C.B; Checking & Repairing Panel P.C.B

46

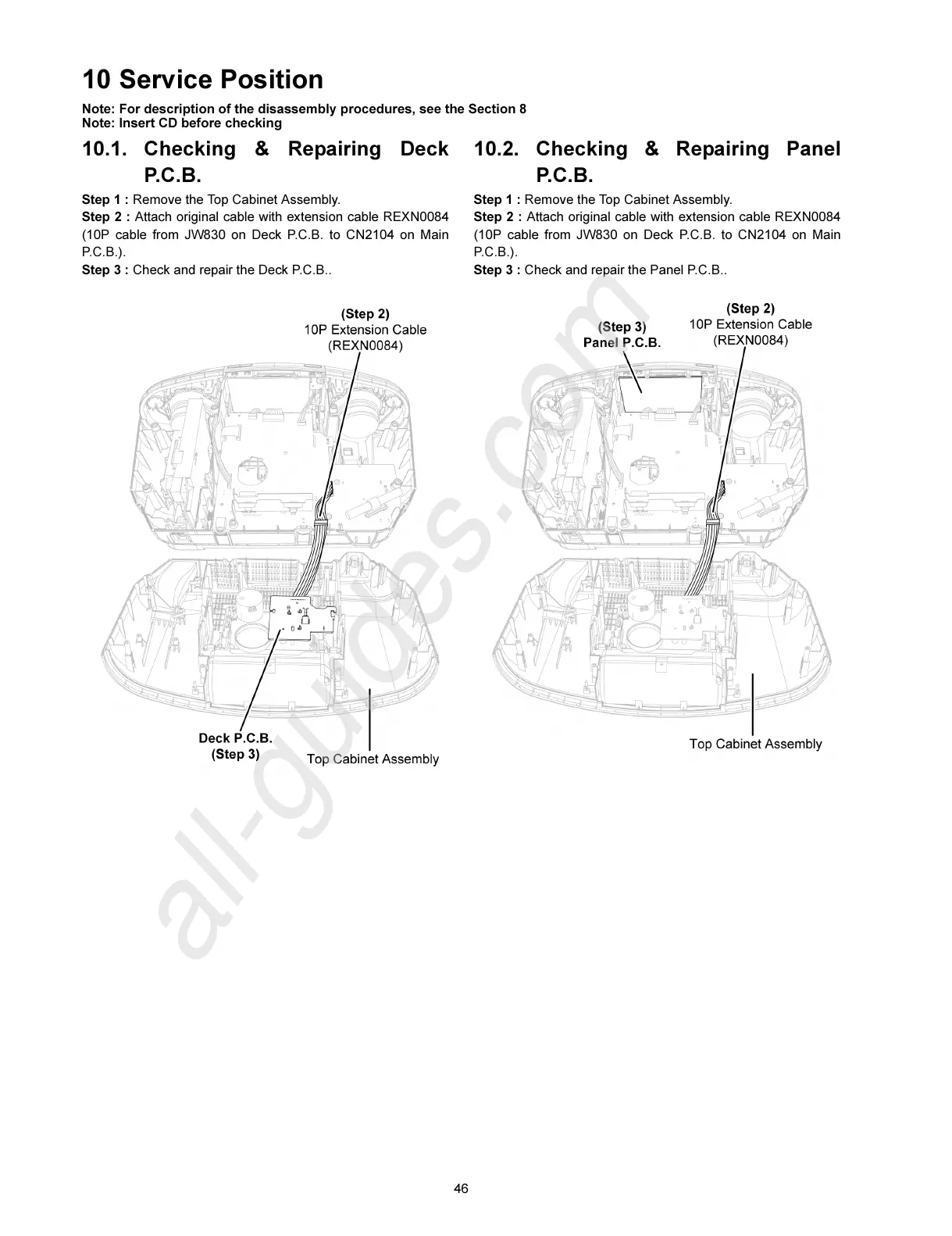

10 Service Position
Note: For description of the disassembly procedures, see the Section 8
Note: Insert CD before checking
10.1. Checking & Repairing Deck
P.C.B.
Step 1 : Remove the Top Cabinet Assembly.
Step 2 : Attach original cable with extension cable REXN0084
(10P cable from JW830 on Deck P.C.B. to CN2104 on Main
P.C.B.).
Step 3 : Check and repair the Deck P.C.B..
10.2. Checking & Repairing Panel
P.C.B.
Step 1 : Remove the Top Cabinet Assembly.
Step 2 : Attach original cable with extension cable REXN0084
(10P cable from JW830 on Deck P.C.B. to CN2104 on Main
P.C.B.).
Step 3 : Check and repair the Panel P.C.B..
