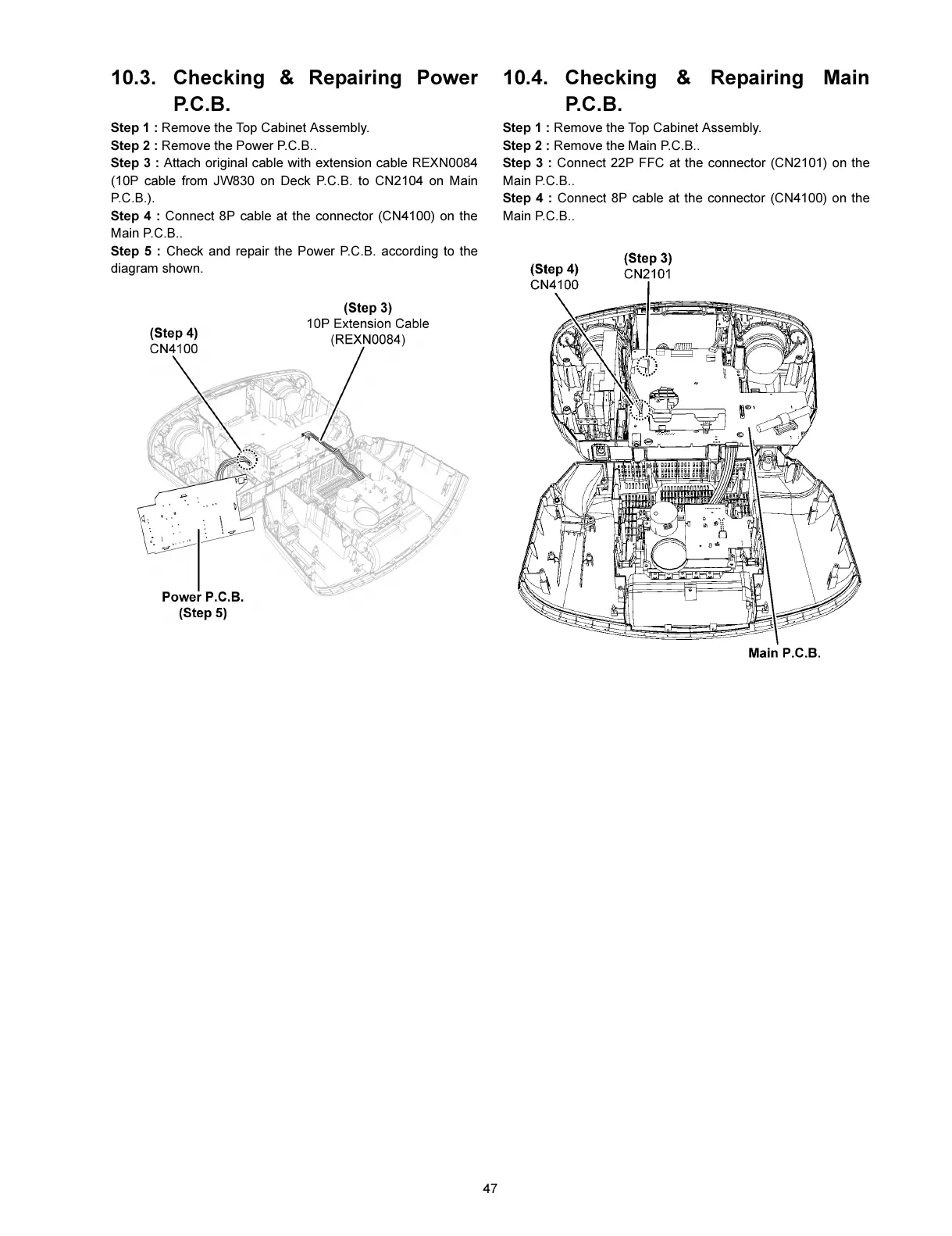

10.3. Checking & Repairing Power
P.C.B.
Step 1 : Remove the Top Cabinet Assembly.
Step 2 : Remove the Power P.C.B..
Step 3 : Attach original cable with extension cable REXN0084
(10P cable from JW830 on Deck P.C.B. to CN2104 on Main
P.C.B.).
Step 4 : Connect 8P cable at the connector (CN4100) on the
Main P.C.B..
Step 5 : Check and repair the Power P.C.B. according to the
diagram shown.
10.4. Checking & Repairing Main
P.C.B.
Step 1 : Remove the Top Cabinet Assembly.
Step 2 : Remove the Main P.C.B..
Step 3 : Connect 22P FFC at the connector (CN2101) on the
Main P.C.B..
Step 4 : Connect 8P cable at the connector (CN4100) on the
Main P.C.B..
