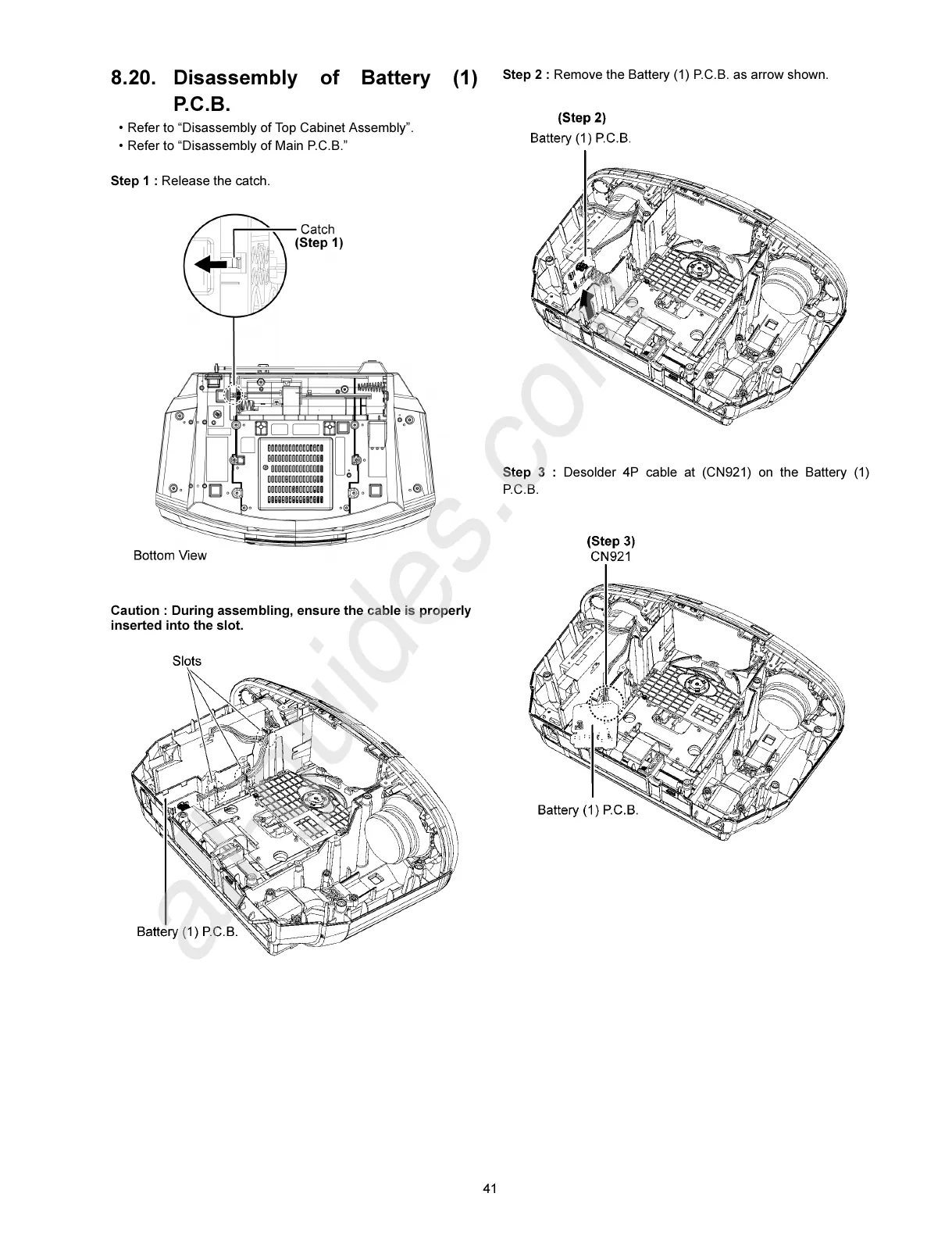

8.20. Disassembly of Battery (1)
P.C.B.
• Refer to “Disassembly of Top Cabinet Assembly”.
• Refer to “Disassembly of Main P.C.B.”
Step 1 : Release the catch.
Caution : During assembling, ensure the cable is properly
inserted into the slot.
Step 2 : Remove the Battery (1) P.C.B. as arrow shown.
Step 3 : Desolder 4P cable at (CN921) on the Battery (1)
P.C.B.
