Panasonic SA-AK770PL - Voltage Measurement and Waveform Chart; Voltage Measurement

14 Voltage Measurement and Waveform Chart
Note:
Circuit voltage and waveform described herein shall be regarded as reference information when probing defect point, because it
may differ from an actual measuring value due to difference of Measuring instrument and its measuring condition and product itself.

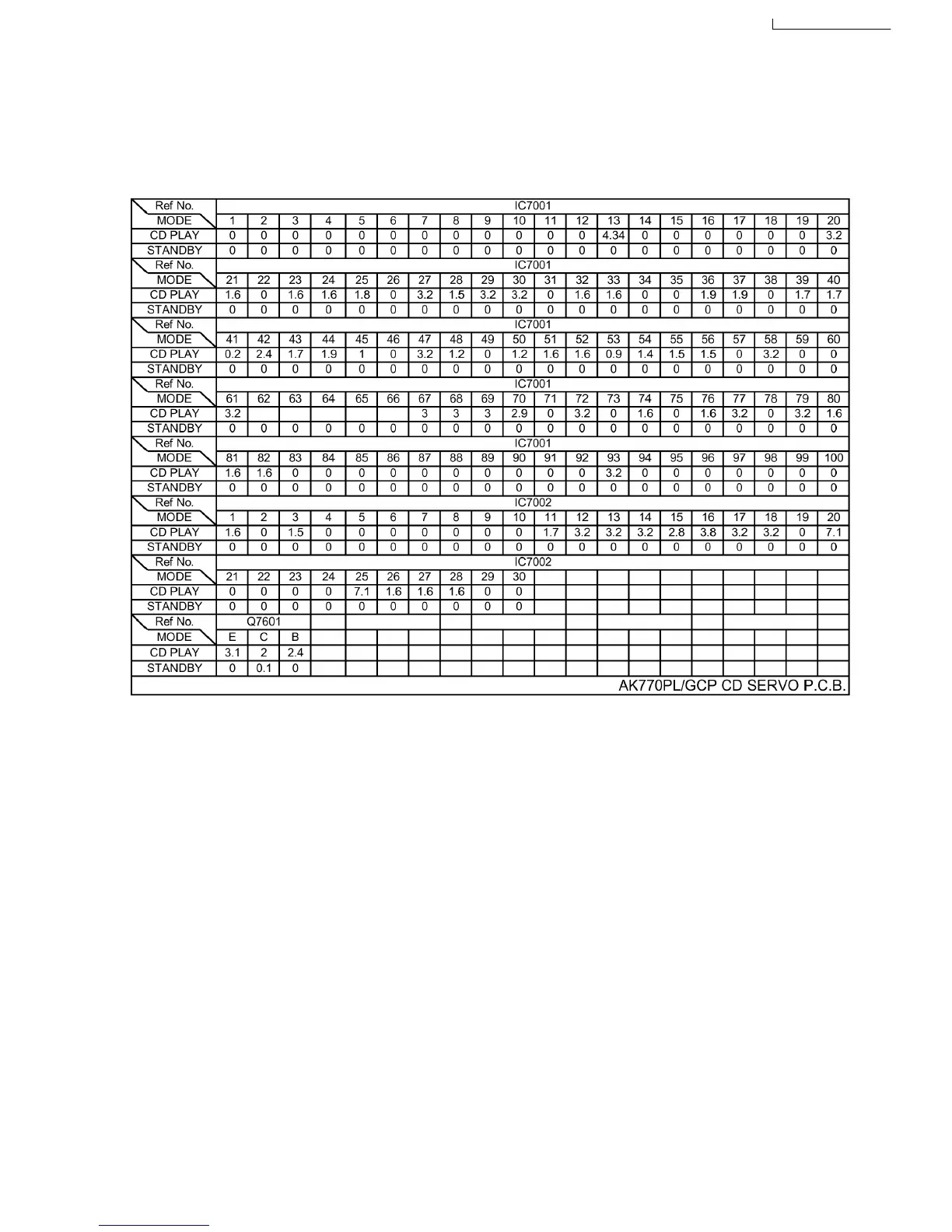

14.1. Voltage Measurement
14.1.1. CD Servo P.C.B.
71
SA
-
AK
77
0PL / SA
-
AK
77
0GCP
