Standby indicator [^]
When the unit is connected to the AC mains
supply, this indicator lights up in standby mode
and goes out when the unit is turned on.
Standby/on switch [8]
Press to switch the unit from on to standby mode
or vice versa. In standby mode, the unit is still
consuming a small amount of power.

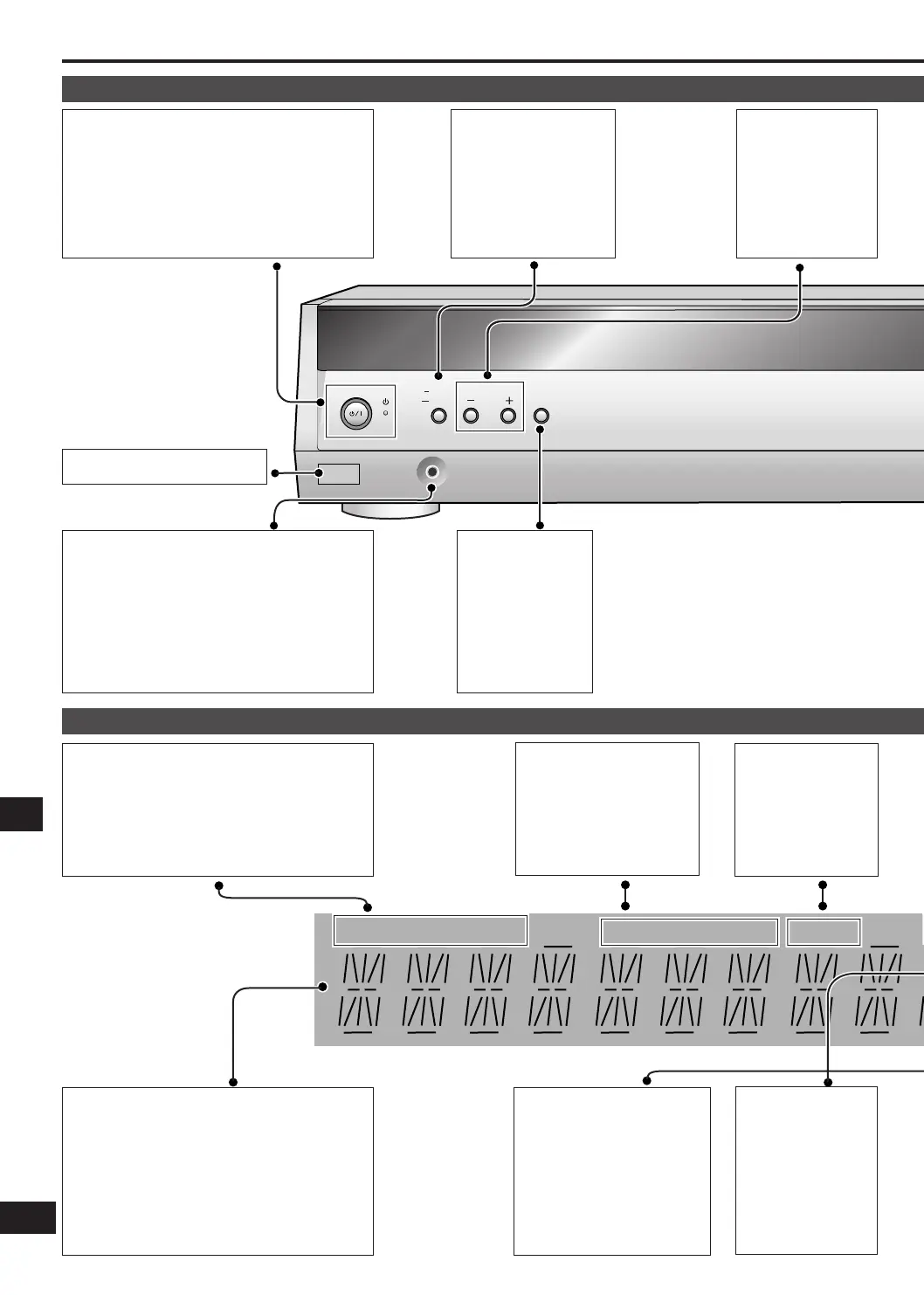

Main unit
Display
Remote control signal sensor
[-MENU,
―
SETUP,
RETURN]
For entering menus to
make various settings.
For returning to
previous menus.
•
•
[TUNE, 3, 4]
For tuning the radio
and selecting menu
or setup items.
[MUSIC PORT]
You can playback sound from portable audio
equipment.
Reduce the volume to minimum before
connecting and disconnecting the equipment.
Use an audio cord for connection.
•
•
•
[kHz, MHz]
Frequency unit indicators
kHz: AM, or PCM sampling
frequency
MHz: FM
[TUNED, ST, MONO]
Radio indicators
TUNED: A station is tuned
ST: A stereo FM broadcast is tuned
MONO: You have switched to monaural mode to
improve reception
[SLEEP]
Sleep timer indicator.
General display
Shows the input mode, radio frequency and other
general information.
[ENTER]
Used during menu
or setup operations.
[RDS, PS, PTY]
Shows the current RDS
display mode.
[M]
Fl a s hes or li ght s
during presetting.
