Panasonic SA-PM35MD - Page 20

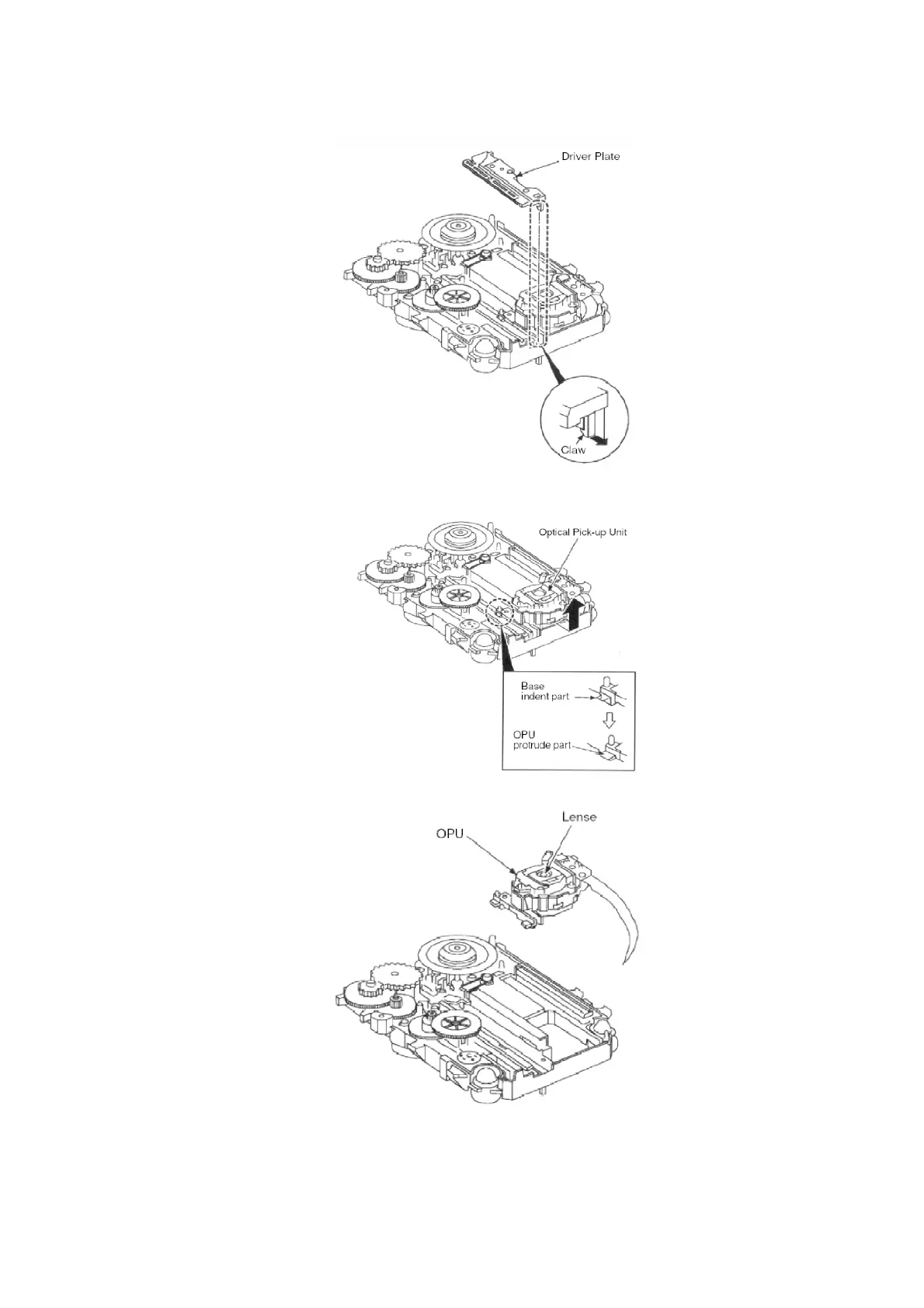

Step 6 Release the claw and remove the Driver Plate.
Step 7 Slide out the Optical Pick-up Unit from the indent opening.
NOTE : Do not touch the Lense on the OPU.
7.3.2. Removal of the Deck P.C.B. and Mechanism P.C.B. for replacing parts.
20
