Panasonic SA-PM35MD - Page 26

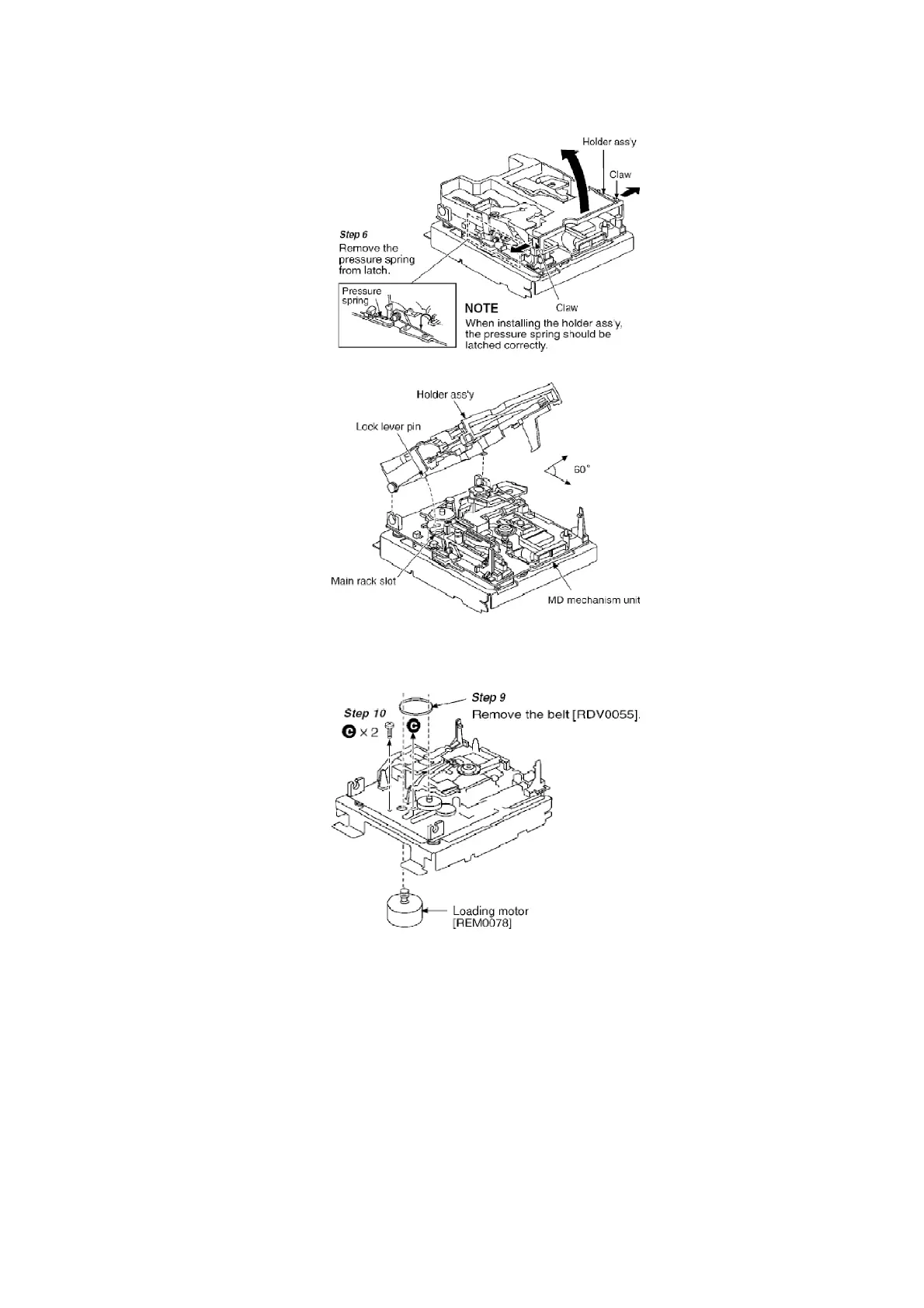

Step 7 Release the 2 claws and then lift up the holder ass’y.
Note : When installing the holder ass’y, align the lock lever pin with the main rack slot.
Step 8 Set the holder ass’y and MD mechanism unit at a 60 degree angle, and then pull out the
holder ass’y.
Notice for installing the loading motor
26
