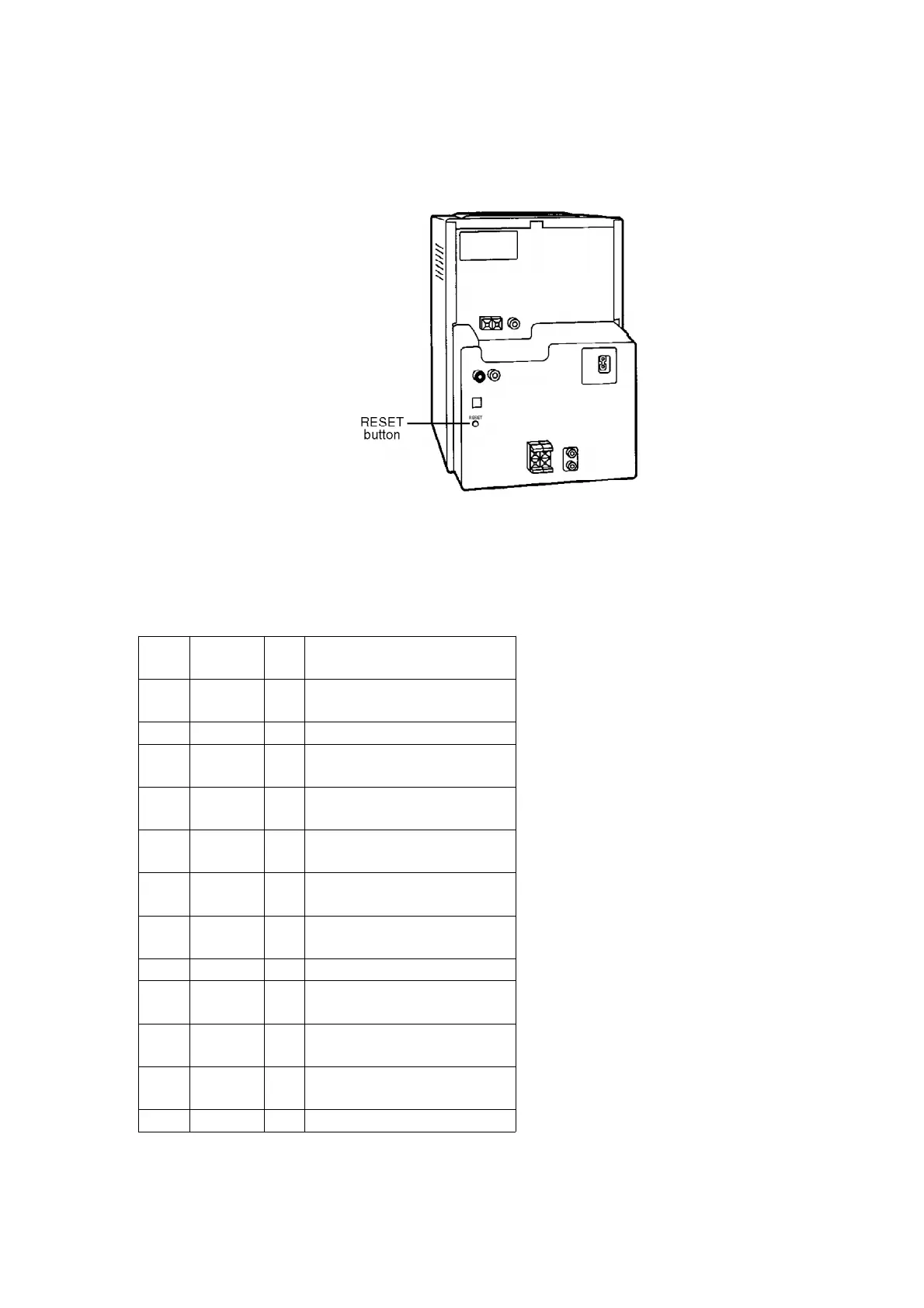

The unit returns to the state same as shipping from the factory.
(Memories such as preset broadcasting station will be lost.)
10. Illustration of IC’s, Transistors and Diodes
11. Terminal Function of IC's
11.1. IC1 (AN8772FHQ) : RF AMP
Pin
No.
Mark I/O Function
1 CENVD — D signal det. capacitor
connection terminal
2 LDO O Laser amp output terminal
3 APCPD I Photo diode light quantity
det. input terminal
4 LD IN I Laser amp reverse input
terminal
5 APC REF I APC amp criterion voltage
input terminal
6 TEMP IN I Temperature sensor amp
input terminal
7 TEMP O Temperature sensor amp
output terminal
8 ADIP O ADIP signal output terminal
9 TOFS I Tracking error offset
adjustment terminal
10 TBAL I Tracking ballance
adjustment terminal
11 TE O Tracking error signal
output terminal
12 CRS IN I Track cross input terminal
