8.20. Disassembly of Inner Chassis
• Follow the (Step 1) - (Step 5) of Item 8.3
• Follow the (Step 1) - (Step 8) of Item 8.4
• Follow the (Step 1) - (Step 6) of Item 8.9

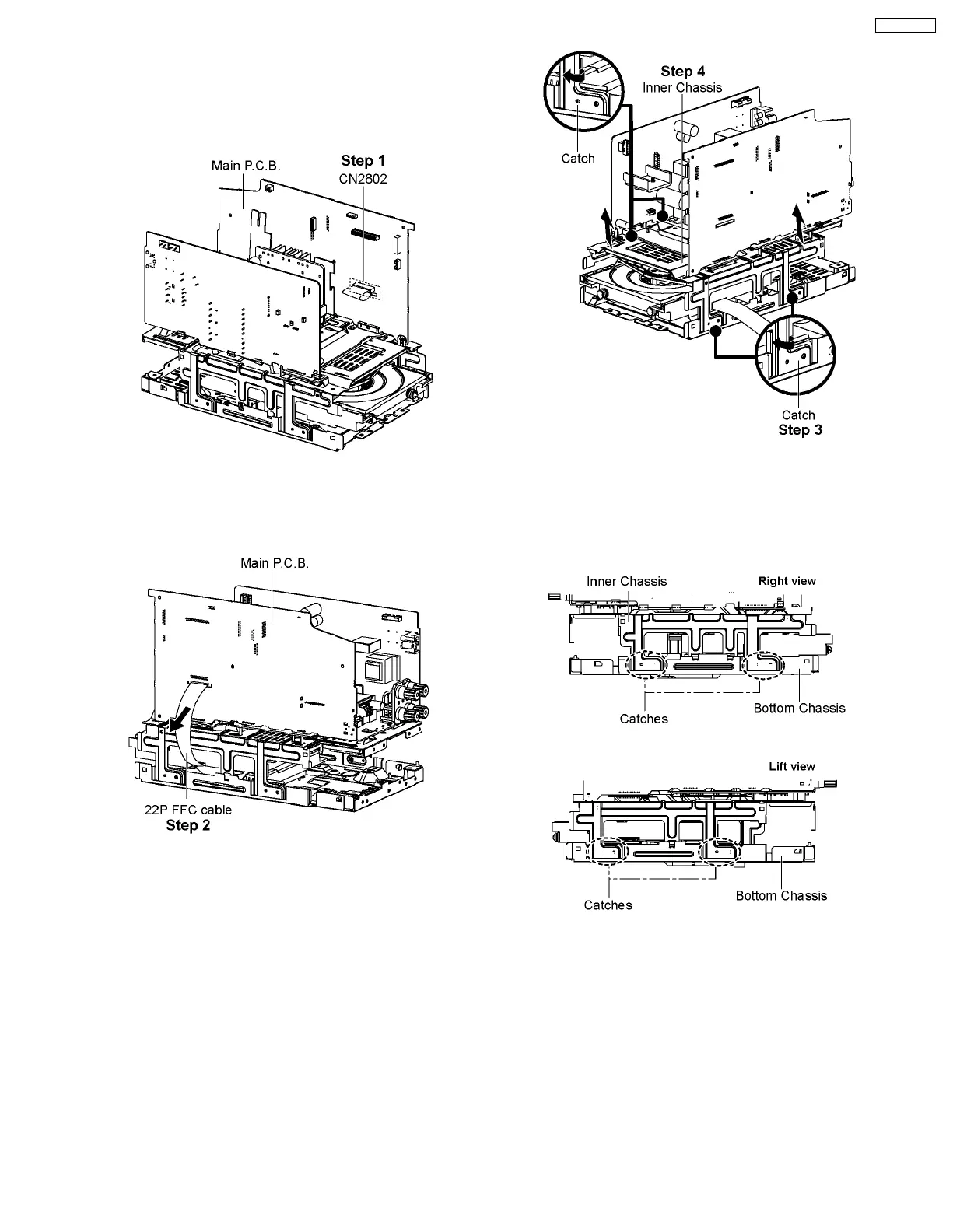

Step 1 : Detach 22P FFC cable at the connector (CN2802) on
Main P.C.B..
Step 2 : Detach 22P FFC cable at the connector from Main
P.C.B..
Step 3 : Release the Catch at each side of the Inner Chassis.
Step 4 : Remove Inner Chassis as arrows shown.
• Assembly of Inner Chassis
Note: During reassembling procedures, ensure Inner
Chassis are properly catched onto Bottom Chassis.
