8.21. Disassembly of Mechanism
Unit
• Follow the (Step 1) - (Step 5) of Item 8.3
• Follow the (Step 1) - (Step 8) of Item 8.4
• Follow the (Step 1) - (Step 6) of Item 8.9
• Follow the (Step 1) - (Step 4) of Item 8.20

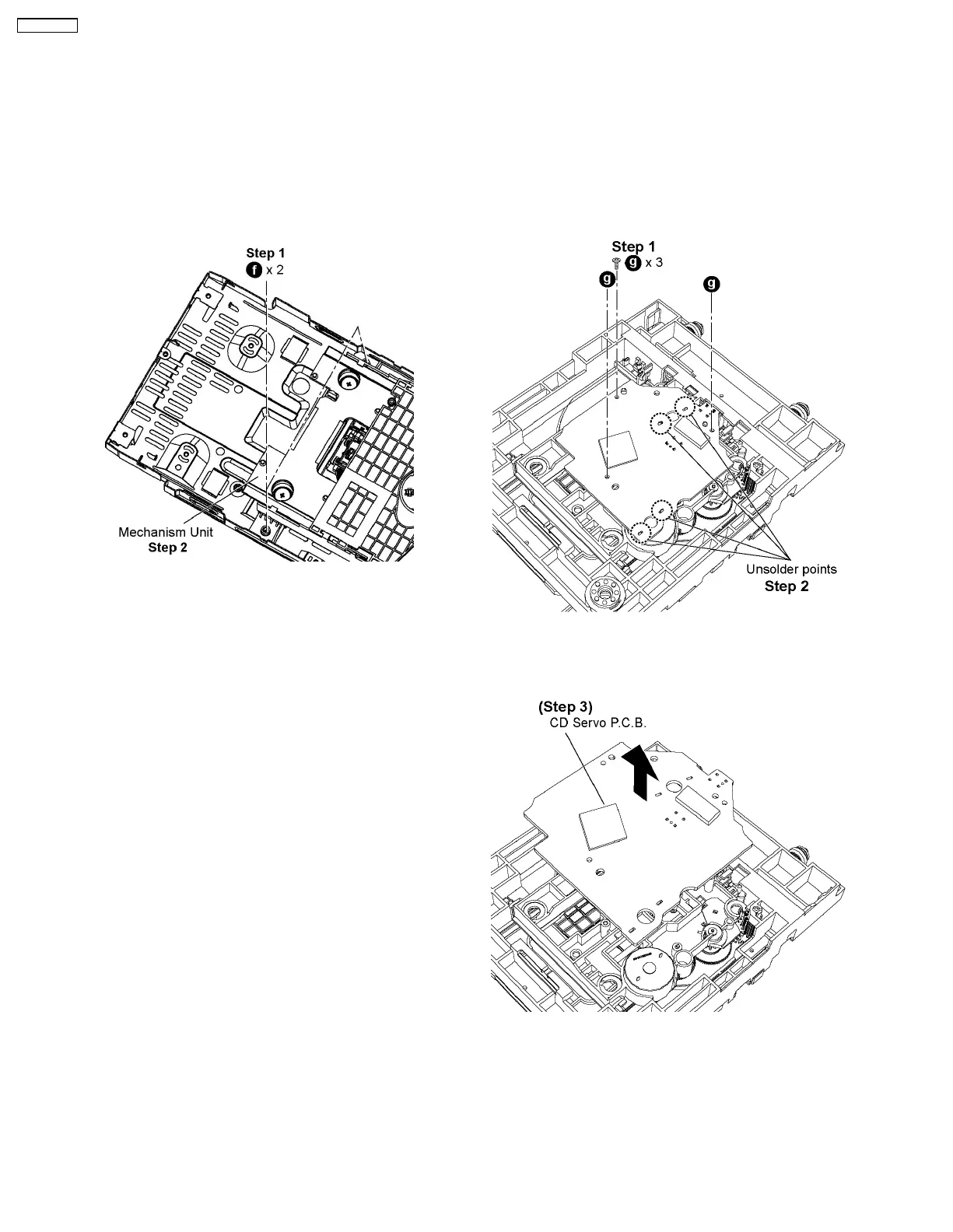

Step 1 : Remove 2 screws.
Step 2 : Lift up to remove Mechanism Unit.
8.22. Disassembly of CD Servo
P.C.B.
• Follow the (Step 1) - (Step 5) of Item 8.3
• Follow the (Step 1) - (Step 8) of Item 8.4
• Follow the (Step 1) - (Step 6) of Item 8.9
• Follow the (Step 1) - (Step 4) of Item 8.20
• Follow the (Step 1) - (Step 2) of Item 8.21
Step 1 : Remove 3 screws.
Step 2 : Unsolder 4 points.
Step 3 : Remove CD Servo P.C.B. as arrow shown.
Note : For Disassembly and assembly of traverse unit, Please
refer to orginal service manual DLS6C Order No.
MD0803034CE.
