8.23. Disassembly of USB Lid
• Follow the (Step 1) - (Step 5) of Item 8.3
• Follow the (Step 1) - (Step 8) of Item 8.4
• Follow the (Step 1) - (Step 4) of Item 8.5
• Follow the (Step 1) - (Step 4) of Item 8.6

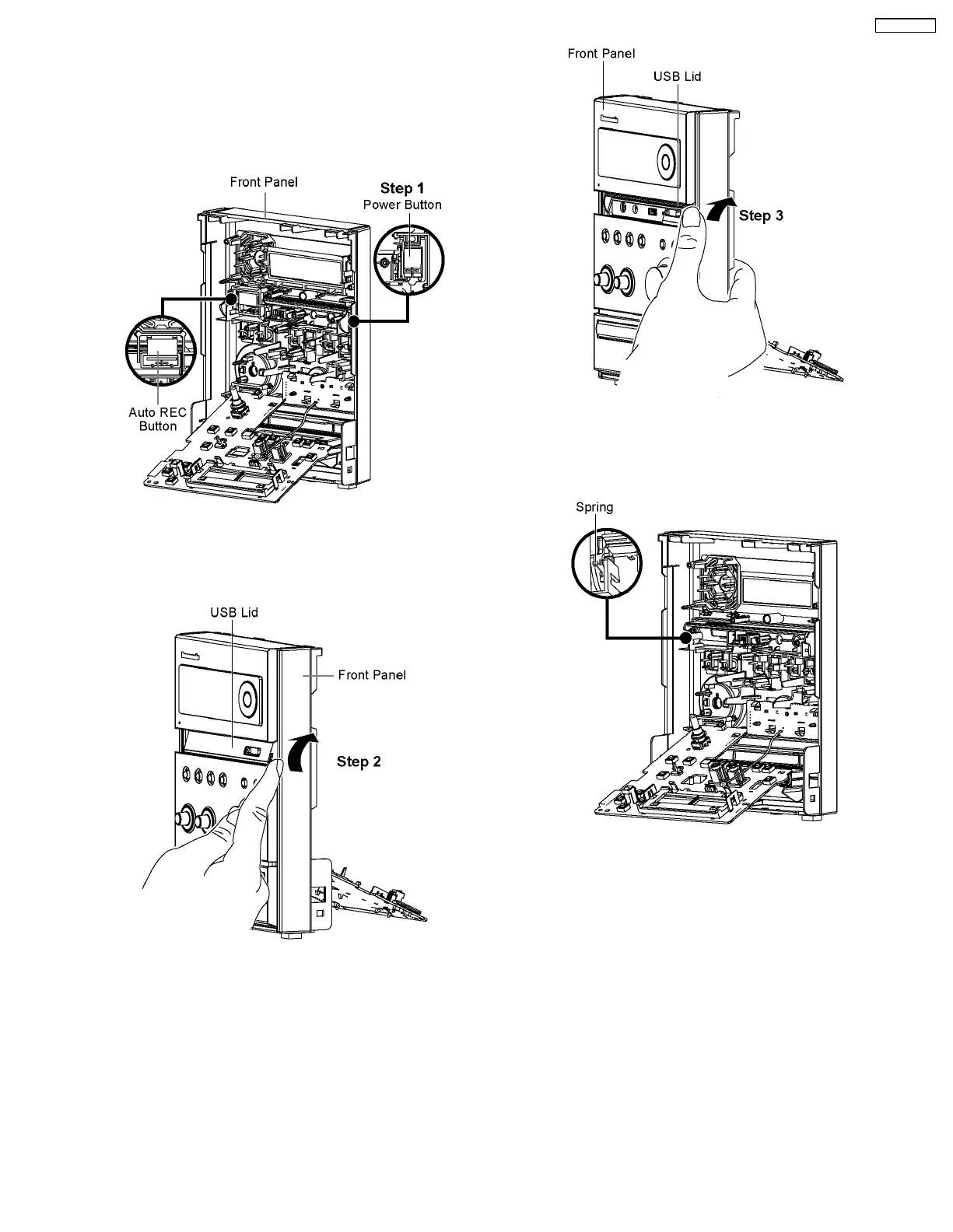

Step 1 : Remove Power Button and Auto REC Button from
Front Panel.
Step 2 : Lift up USB Lid as arrow shown.
Step 3: Press USB Lid at the right side as arrow shown.
• Disassembly of USB Lid Spring
Caution : Keep the USB Lid Spring unit in safe place.
