Panasonic SA-PMX3GN - Page 38

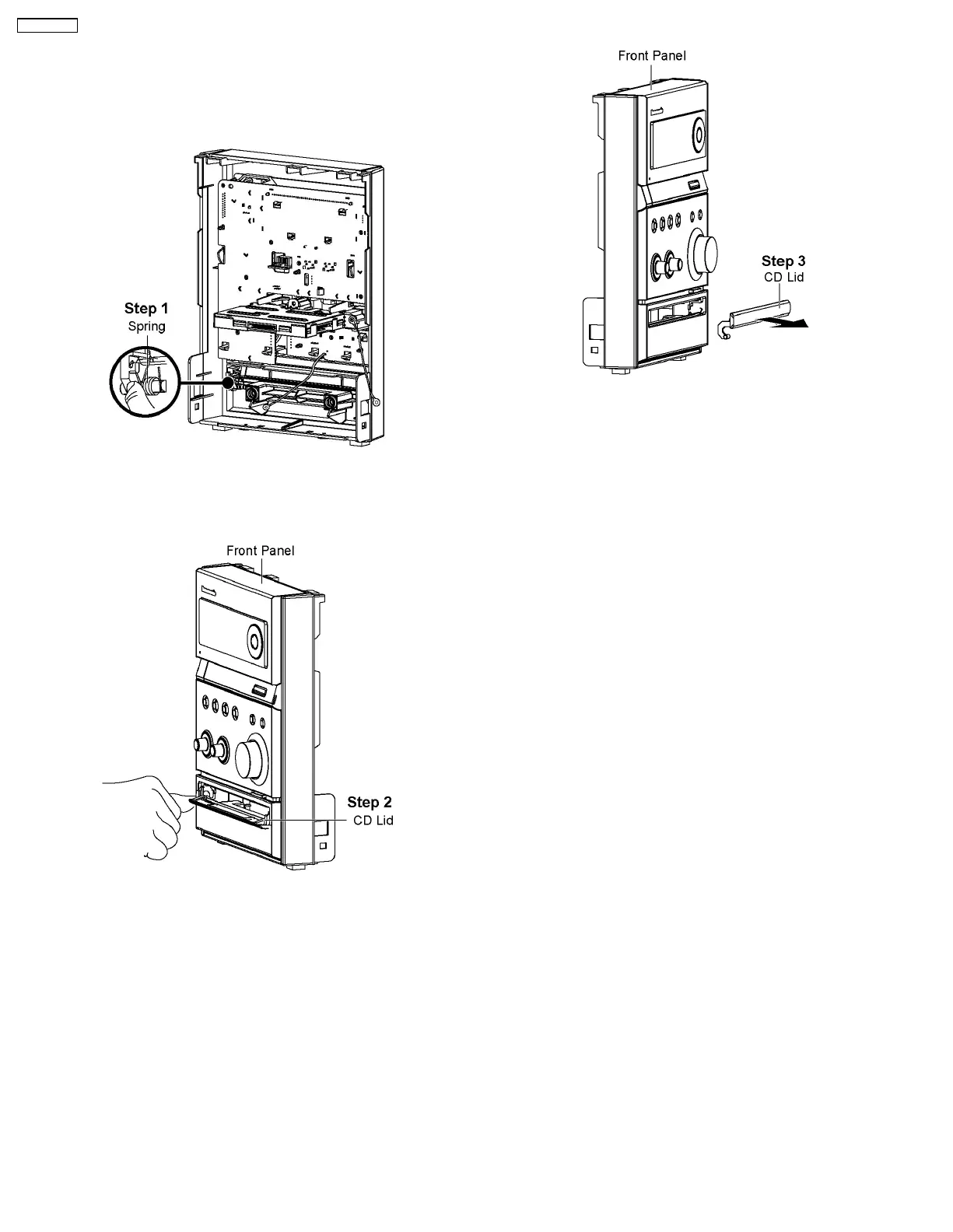

8.24. Disaasembly of CD Lid
• Follow the (Step 1) - (Step 5) of Item 8.3
• Follow the (Step 1) - (Step 8) of Item 8.4
Step 1 : Release the Spring.
Step 2 : Exert force to push towards the right side to release
CD Lid.
Step 3: Remove CD Lid as arrow shown.
38
SA-PMX3GN
