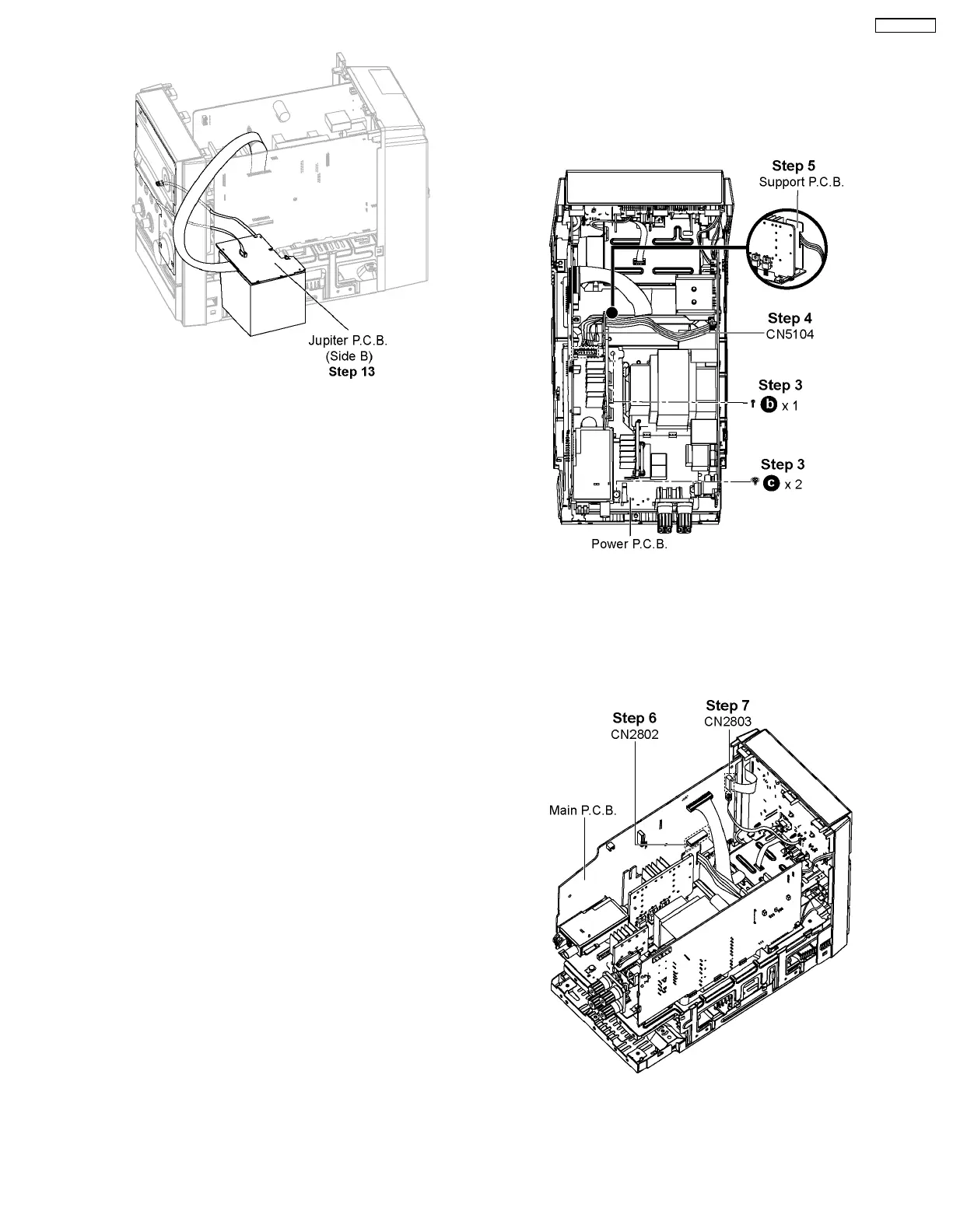

Step 13 : Flip Jupiter P.C.B. to its Side B.
11.5. Checking & Repairing Power
P.C.B.
Step 1 : Remove Top Panel.
Step 2 : Remove Rear Panel.
Step 3 : Remove 3 screws on Power P.C.B..
Step 4 : Detach 8P cable at the connector (CN5104) on Power
P.C.B..
Step 5 : Detach 8P cable from Support P.C.B..
Step 6 : Detach 22P FFC cable at the connector (CN2802) on
Main P.C.B..
Step 7 : Detach 17P FFC cable at the connector (CN2803) on
Main P.C.B..
