Panasonic SA-PMX3GN - Page 54

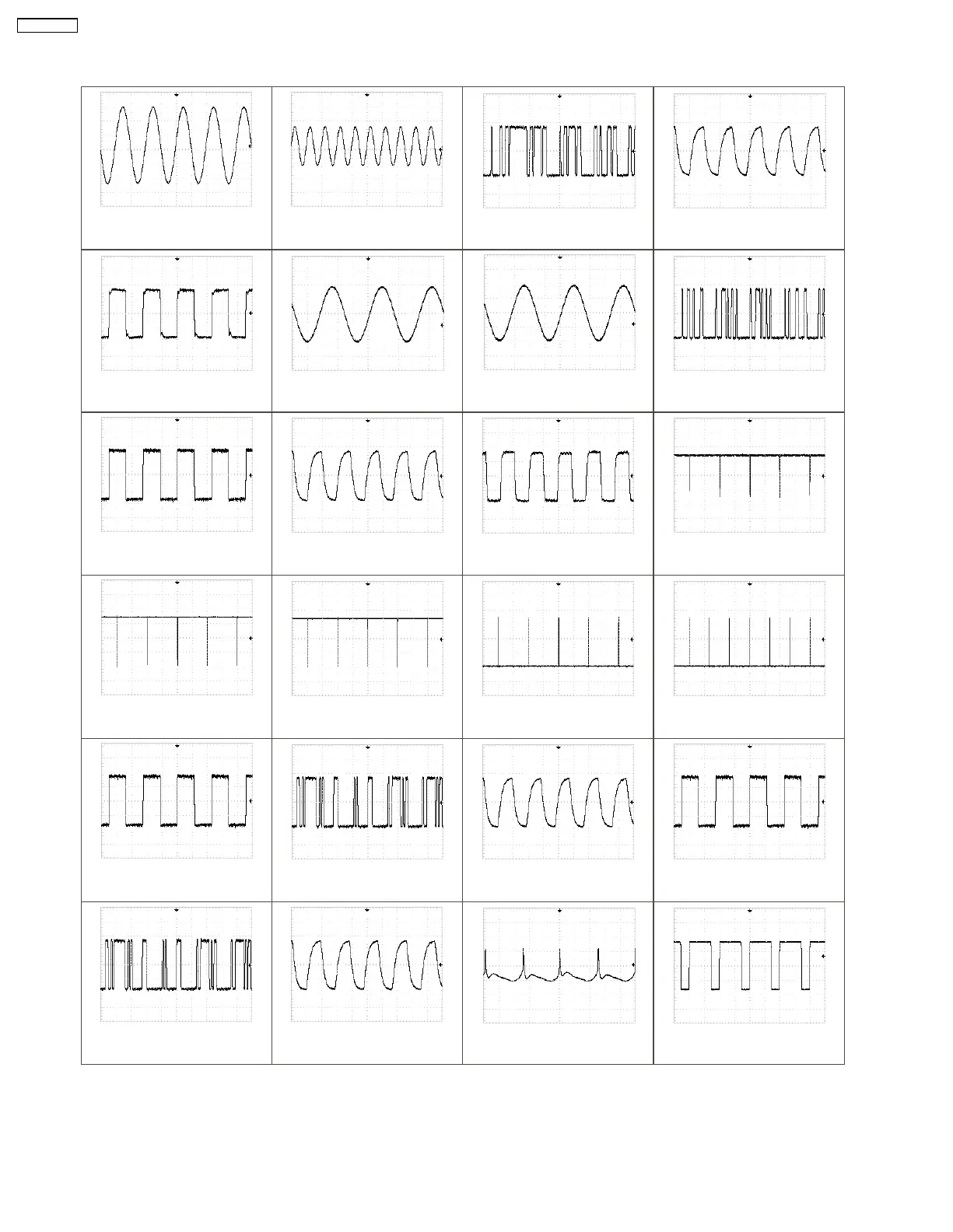

12.2. Waveform Chart
CN2804 PIN 5
CD PLAY
2.70Vp-p (1msec.div)
CN2804 PIN 7
CD PLAY
2.76Vp-p (1msec.div)
CN2804 PIN 18
CD PLAY
3.44Vp-p (250nsec.div)
CN2804 PIN 20
CD PLAY
3.60Vp-p (10usec.div)
CN2802 PIN 1
CD PLAY
1.98Vp-p (5msec.div)
CN2804 PIN 3
CD PLAY
1.98Vp-p (5msec.div)
CN2802 PIN 5
CD PLAY
3.72Vp-p (5usec.div)
CN2802 PIN 6
CD PLAY
3.76Vp-p (10usec.div)
CN2802 PIN 7
CD PLAY
3.56Vp-p (250nsec.div)
CN2802 PIN 8
CD PLAY
180mVp-p (250nsec.div)
CN2802 PIN 9
CD PLAY
3.04Vp-p (5msec.div)
CN2804 PIN 17
CD PLAY
3.64Vp-p (5usec.div)
CN2802 PIN 10
CD PLAY
3.56Vp-p (5msec.div)
CN2802 PIN 11
CD PLAY
3.52Vp-p (5msec.div)
CN2802 PIN 12
CD PLAY
3.48Vp-p (5msec.div)
CN2082 PIN 13
CD PLAY
3.44Vp-p (10msec.div)
JW2001A PIN 1
CD PLAY
3.76Vp-p (10usec.div)
JW2001A PIN 2
CD PLAY
3.68Vp-p (5usec.div)
JW2001A PIN 3
CD PLAY
3.48Vp-p (250nsec.div)
JW2001B PIN 1
CD PLAY
3.76Vp-p (10usec.div)
JW2001B PIN 2
CD PLAY
3.68Vp-p (5usec.div)
JW2001B PIN 3
CD PLAY
3.48Vp-p (250nsec.div)
CN2810 PIN 2
CD PLAY
3.36Vp-p (10msec.div)
CN2806 PIN 1
CD PLAY
2.28Vp-p (2.50msec.div)
54
SA-PMX3GN
