Panasonic SA-PMX3GN - Page 55

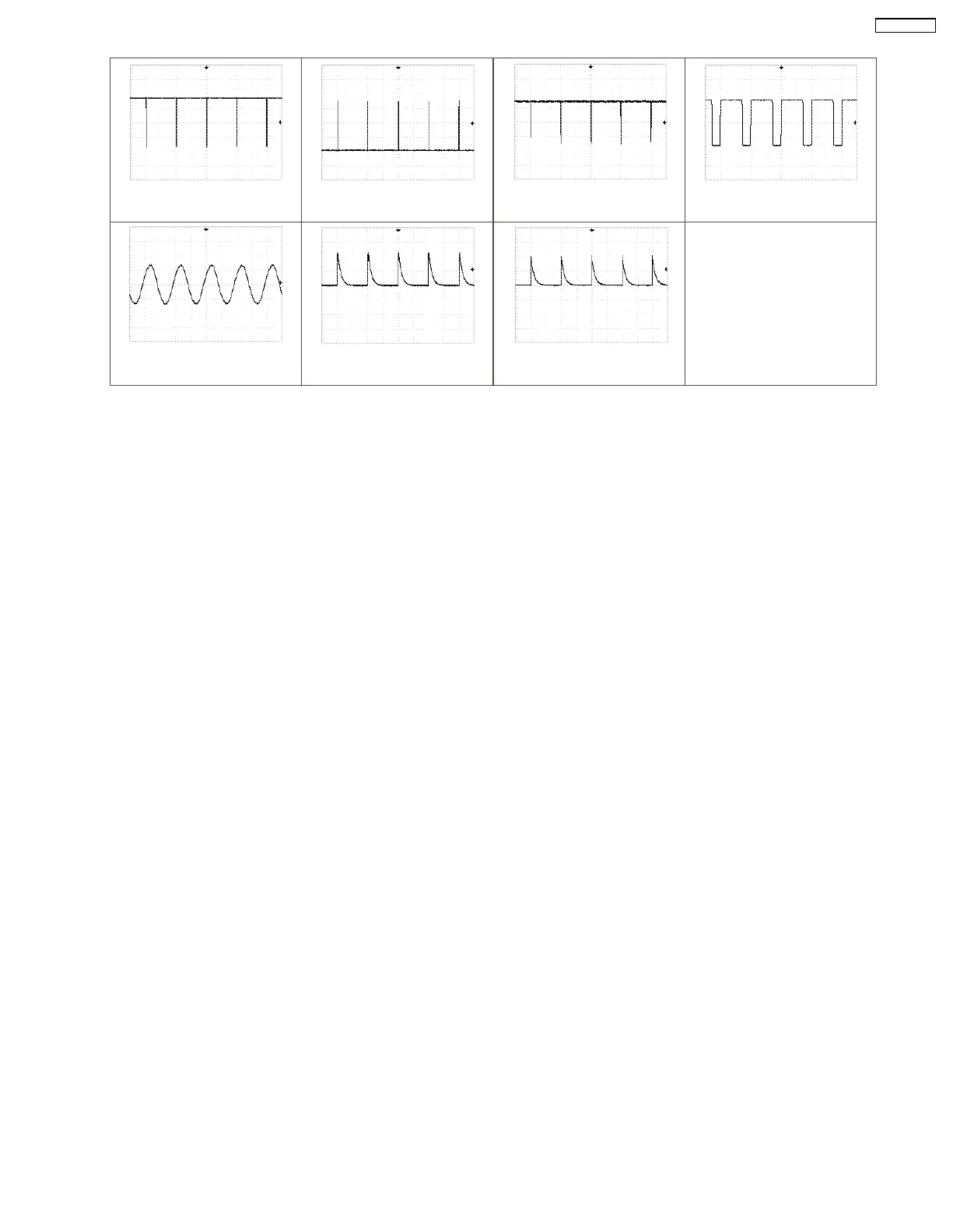

IC2801 PIN 4
CD PLAY
3.52Vp-p (5msec.div)
IC2801 PIN 5
CD PLAY
3.48Vp-p (5msec.div)
IC2801 PIN 6
CD PLAY
3.04Vp-p (5msec.div)
IC2801 PIN 7
CD PLAY
3.22Vp-p (10msec.div)
IC2801 PIN 12
CD PLAY
1.4Vp-p (50nsec.div)
IC2801 PIN 92
CD PLAY
232mp-p (500usec.div)
IC2801 PIN 94
CD PLAY
212mp-p (500usec.div)
55
SA-PMX3GN
