Preset Memory: FM 30 stations
AM 30 stations
Frequency Modulation (FM)
Frequency range:
87.90-107.90 MHz (200-kHz step)
87.50-108.00 MHz (100-kHz step)
Antenna terminals: 75 Ω (unbalanced)
Amplitude Modulation (AM)
520kHz to 1710kHz (10-kHz step)
Digital audio input
Optical digital input: Optical terminal
Sampling frequency: 32 kHz, 44.1 kHz, 48 kHz
Phone jack
Terminal: Stereo, 3.5 mm (1/8”) jack
O
OO
ODISC SECTION
Discs played [8 cm (3”) or 12 cm (5”)]:
(1) DVD (DVD-Video)
(2) DVD-RAM (DVD-VR, MP3
*2, 5
, JPEG
*4, 5
)
(3) DVD-R (DVD-Video, DVD-VR, MP3
*2, 5
, JPEG
*4, 5
)
(4) DVD-R DL (DVD-Video, DVD-VR)
(5) DVD-RW (DVD-Video, DVD-VR, MP3
*2, 5
, JPEG
*4, 5
)
(6) +R/+RW (Video)
(7) +R DL (Video)
(8) CD, CD-R/RW [CD-DA, Video CD, SVCD
*1
,MP3
*2, 5
,WMA
*3,
5
, JPEG
*4, 5
]
*1
Conforming to IEC62107
*2
MPEG-1 Layer 3, MPEG-2 Layer 3
*3
Windows Media Audio Ver.9.0 L3
ONot compatible with Multiple Bit Rate (MBR)
*4
Exif Ver 2.1 JPEG Baseline files
OPicture resolution: between 160 x 120 and 6144 x 4096
pixels (Sub sampling is 4:0:0, 4:2:0, 4:2:2 or 4:4:4).
Extremely long and narrow pictures may not be displayed.
*5
The total combined maximum number of recognizable audio
and picture contents and groups: 4000 audio and picture
contents and 400 groups.
Pick up
Wavelength (DVD/CD): 655/785 nm
Laser power (DVD/CD): CLASS 1/CLASS 1M (Canada)
CLASS II/CLASS I (U.S.A)
Audio output (Disc)
Number of channels: 5.1ch(FL,FR,C,SL,SR,
SW)
O
OO
OVIDEO SECTION
Video system: NTSC
Composite video output
Output level: 1Vp-p(75Ω)
Terminal: Pin jack (1 system)
Component Video Output
O
OO
OY output level: 1Vp-p(75Ω)
O
OO
OP
B
output level: 0.7Vp-p(75Ω)
O
OO
OP
R
output level: 0.7Vp-p(75Ω)
O
OO
OTerminal: Pin jack (Y: green, P
B
:blue,
P
R
:red)(1system)
HDMI AV output
Terminal: 19pin type A connector
HDAVI Control:
This unit supports “HDAVI Control 3” function.
Note:
1. Specifications are subject to change without notice.
Mass and dimensions are approximate.
2. Total harmonic distortion is measured by the digital spectrum
analyzer.
Solder:
This model uses lead free solder (PbF).
Mechanism:
This model uses CR14 mechanism.
Wireless Features (optional):
This model supports multi-room wireless sound system
(eg.SH-FX85).

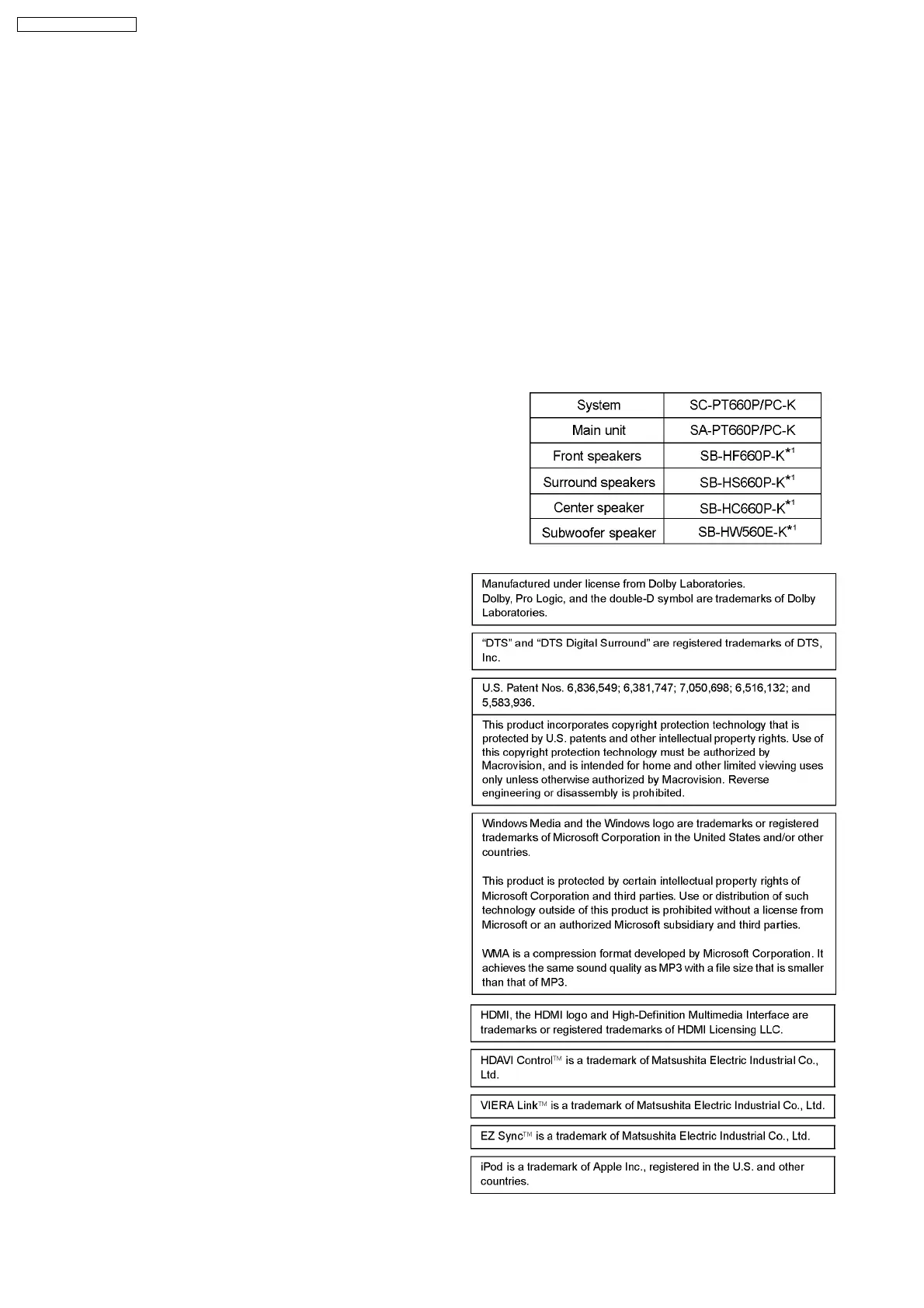

Refer to their respective original service manuals for *1.
2
SA-PT660P / SA-PT660PC
