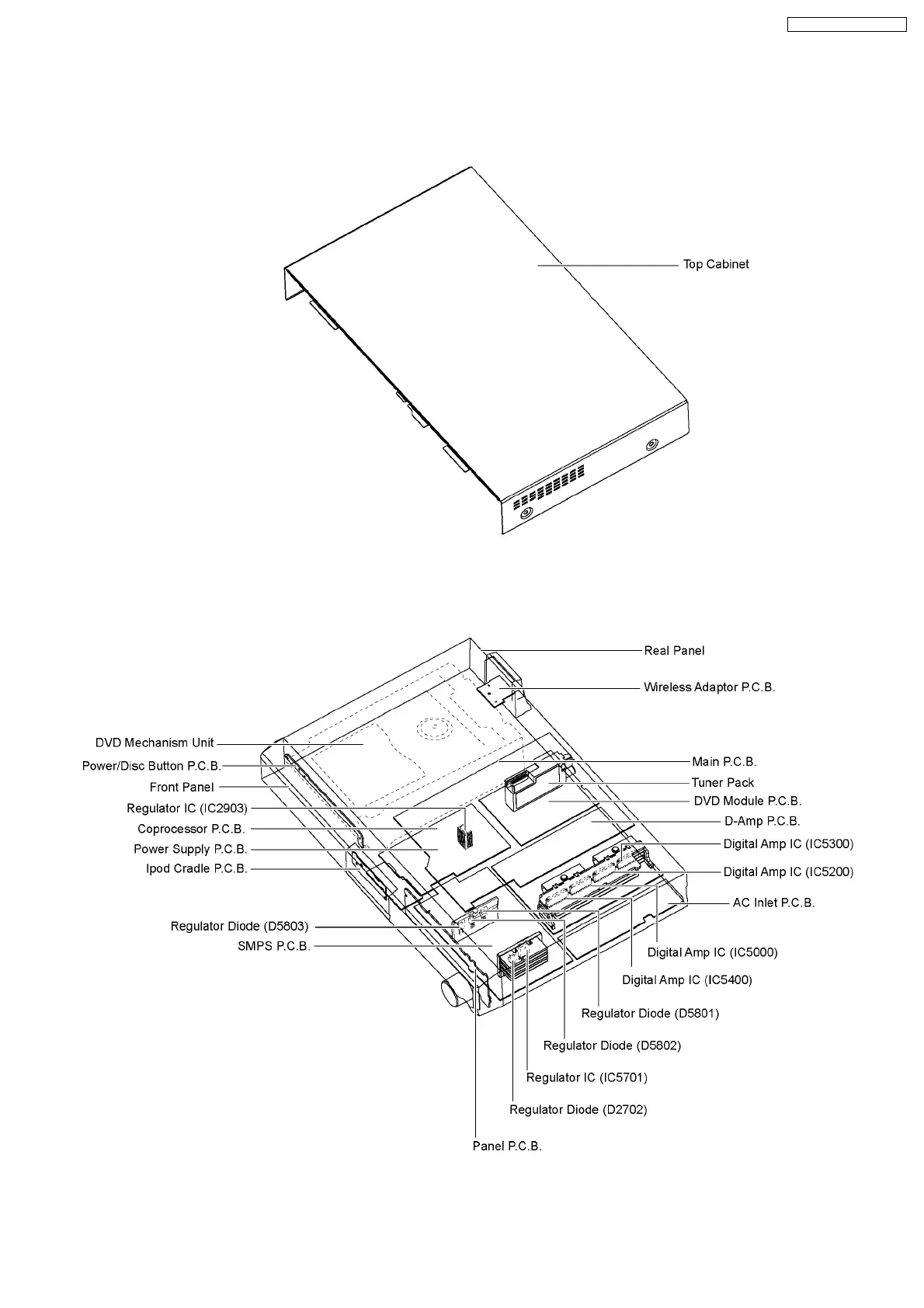

9.2. Main Components and P.C.B. Locations

SA-PT660P / SA-PT660PC

Main Page

Table of Contents3
Safety Precautions5
General Guidelines5
Before Repair and Adjustment5
Protection Circuitry6
Safety Parts Information6
Prevention of Electrostatic Discharge (ESD) to8
Electrostatically Sensitive (ES) Devices8
Precaution of Laser Diode9
About Lead Free Solder (Pbf)10
Service Caution Based on Legal Restrictions10
Handling Precautions for Traverse Unit11
Cautions to be Taken in Handling the Optical Pickup Unit11
Grounding for Electrostatic Breakdown Prevention11
Accessories13
Operation Procedures14
Remote Control Key Buttons Operations14
Main Unit Key Buttons Operations15
Using the VIERA Link "HDAVI Control16
Using the Ipod18
Audio and Video Connection20
Disc Information22
Self-Diagnosis and Special Mode Setting24
Service Mode Summary Table24
Service Mode Table (for DVD)24
Service Mode Table (for CR14)32
Wireless Service Mode Summary Table34
Service Mode Table (Wireless)35
DVD Self Diagnostic Function-Error Code37
Sales Demonstration Lock Function41
Service Precautions42
Assembling and Disassembling44
Disassembly Flow Chart46
Main Components and P.C.B. Locations47
Disassembly of Top Cabinet48
Disassembly of Rear Panel48
Disassembly of DVD Mechanism Unit48
Disassembly of Front Panel49
Disassembly of Panel P.C.B50
Disassembly of Power/Disc Button50
Disassembly of DVD Lid50
Disassembly of Ipod Cradle P.C.B51
Disassembly of AC Inlet P.C.B52
Disassembly of Main P.C.B53
Disassembly of D-Amp P.C.B54
Replacement of Digital Amp IC (IC5000)55
Replacement of Digital Amp IC (IC5200)56
Replacement of Digital Amp IC (IC5300)57
Replacement of Digital Amp IC (IC5400)59
Disassembly of SMPS P.C.B60
Replacement of Switch Regulator IC (IC5701)60
Replacement of Switch Regulator Diode (D5702)61
Replacement of Regulator Diode (D5801)63
Replacement of Regulator Diode (D5802)63
Replacement of Regulator Diode (D5803)64
Disassembly of Power Supply P.C.B65
Replacement of Regulator IC (IC2903)66
Disassembly of DVD Module P.C.B67
Disassembly of Coprocessor P.C.B68
Disassembly of Wireless Adapter P.C.B68
Assembling and Disassembling of DVD Mechanism Unit70
Disassembling of TRV Unit70
Assembly of TRV Unit70
Service Fixture and Tools72
Service Position73
Checking & Repairing Main P.C.B73
Checking & Repairing D-Amp P.C.B73
Checking & Repairing SMPS P.C.B75
Checking & Repairing Power Supply P.C.B75
Checking & Repairing DVD Module P.C.B76
Measurements and Adjustments79
Service Tools and Equipment79
Important Points in Adjustment79
Storing and Handling of Test Discs79
Optical Adjustment80
Voltage and Waveform Chart81
DVD Module P.C.B81
D-Amp P.C.B83
Main P.C.B84
Panel P.C.B85
Power Supply P.C.B85
Smps P.C.b86
Waveform Chart87
Illustration of IC's, Transistors and Diodes90
Wiring Connection Diagram91
Block Diagram93
System Control93
DVD (Servo)94
DVD (Audio)95
DVD (Hdmi)96
Video97
Audio98
Digital Audio Amp99
Power100
Schematic Diagram Notes101
Schematic Diagram103
DVD Module Circuit103
Main Circuit108
Panel, Power/Disc Button Circuit112
D-Amp Circuit113
Power Supply Circuit115
SMPS Circuit117
AC Inlet, Ipod Cradle Circuit119
Coprocessor, Wireless Adapter Circuit120
Printed Circuit Board121
DVD Module121
Main P.C.B122
Panel, Power/Disc Button, Power Supply & AC Inlet123
D-Amp124
Smps125
Ipod Cradle, Coprocessor & Wireless Adapter126
Basic Troubleshooting Guide127
Troubleshooting Guide for F61 And/Or F76127
Basic Troubleshooting Guide for Traverse Unit (DVD Module P.C.B.)133
Basic Troubleshooting Guide for HDMI AV Output134
Overall Simplified Block for PT660137
SMPS Module & Power Supply Block138
Terminal Function of Ics139
IC2001 (RFKWPT760P): IC System Control139
IC1701 (MFI341S2095): IC Ipod Video139
IC6901(C0HBB0000057): IC FL Driver140
Exploded Views141
Cabinet Parts Location141
Packaging142
Replacement Parts List143
Component Parts List144
