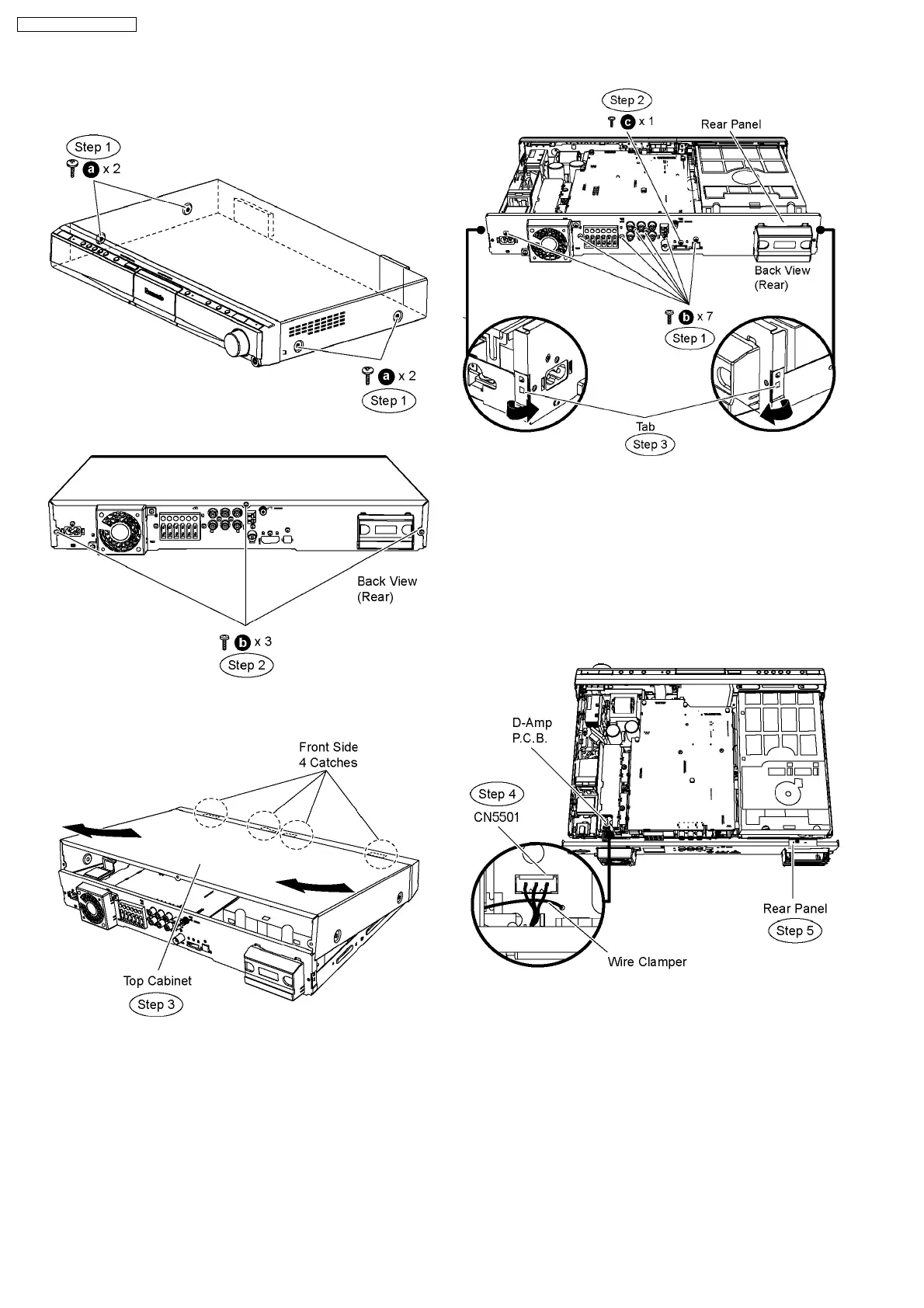

9.3. Disassembly of Top Cabinet
Step 1 Remove 4 screws at the side of the top cabinet.
Step 2 Remove 3 screws at the rear of the top cabinet.
Step 3 Lift up the back part of the top cabinet and remove it in
the direction of arrows.
9.4. Disassembly of Rear Panel
•
• •
• Follow (Step 1) to (Step 3) of Item 9.3.
Step 1 Remove 7 screws at the rear panel.
Step 1 Remove 1 screws at the rear panel.
Step 3 Release the tab of each side of the rear panel in the
direction of arrow.
Step 4 Remove the wire clamper to detach the fan unit
connector (CN5501) on D-Amp P.C.B.
Step 5 Remove the rear panel.
9.5. Disassembly of DVD
Mechanism Unit
•
• •
• Follow (Step 1) to (Step 3) of Item 9.3.
