Panasonic SA-PT660P - Disassembly of Coprocessor P.C.B; Disassembly of Wireless Adapter P.C.B

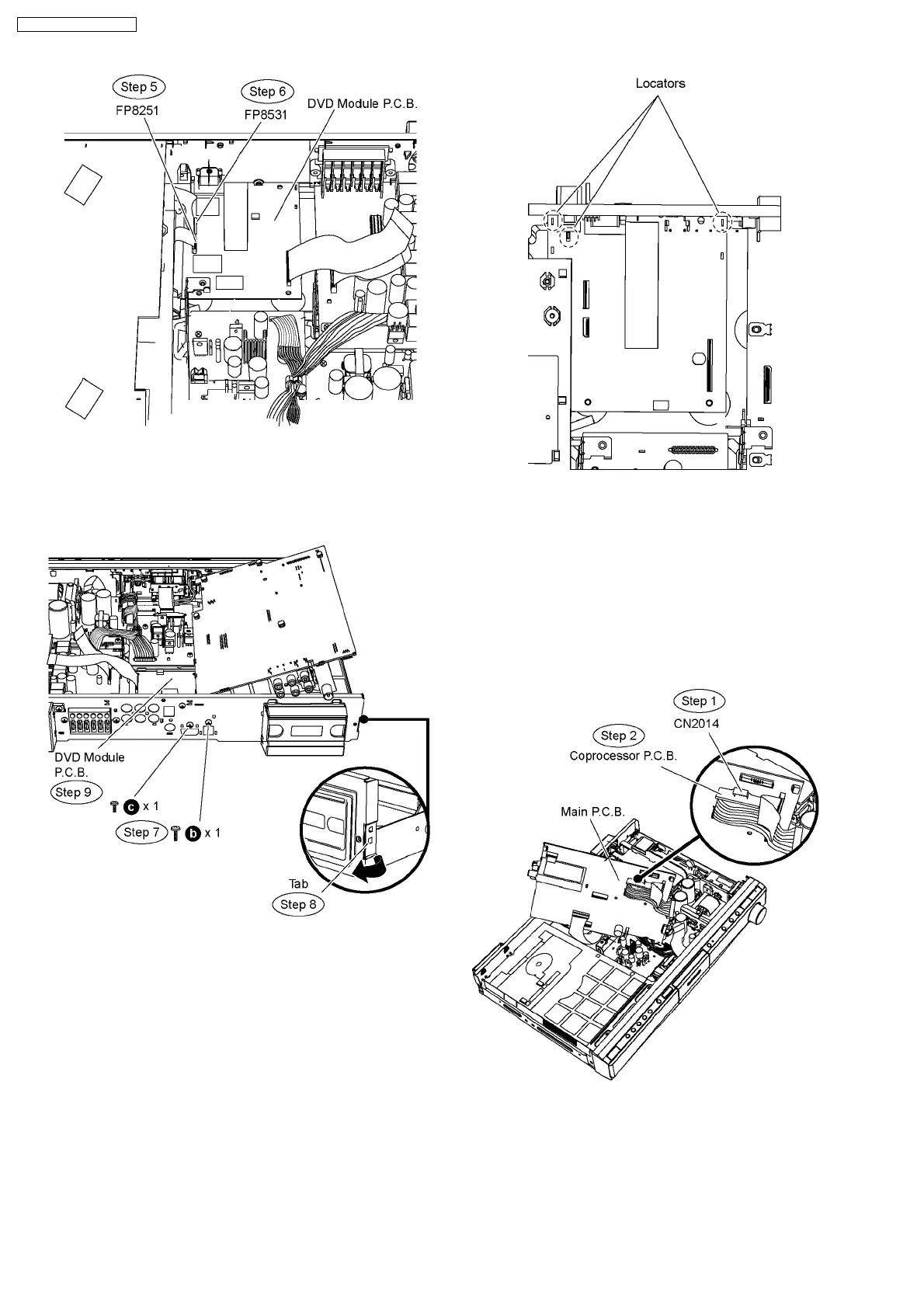

Step 7 Remove 2 screws at the rear panel.
Step 8 Release the tab of the rear panel in the direction of
arrow.
Step 9 Remove DVD Module P.C.B.
Special Note: During reassembling procedures, ensure the
P.C.B. is seated properly at the locators.
9.27. Disassembly of Coprocessor
P.C.B.
•
• •
• Follow (Step 1) to (Step 3) of Item 9.3.
•
• •
• Follow (Step 1) to (Step 8) of Item 9.12.
Step 1 Detach Coprocessor P.C.B. at the connector (CN2014)
on Main P.C.B.
Step 2 Remove Coprocessor P.C.B.
9.28. Disassembly of Wireless
Adapter P.C.B.
Step 1 Remove 1 screw on Wireless Adapter P.C.B.
68
SA-PT660P / SA-PT660PC
