Panasonic SA-PT660P - Waveform Chart

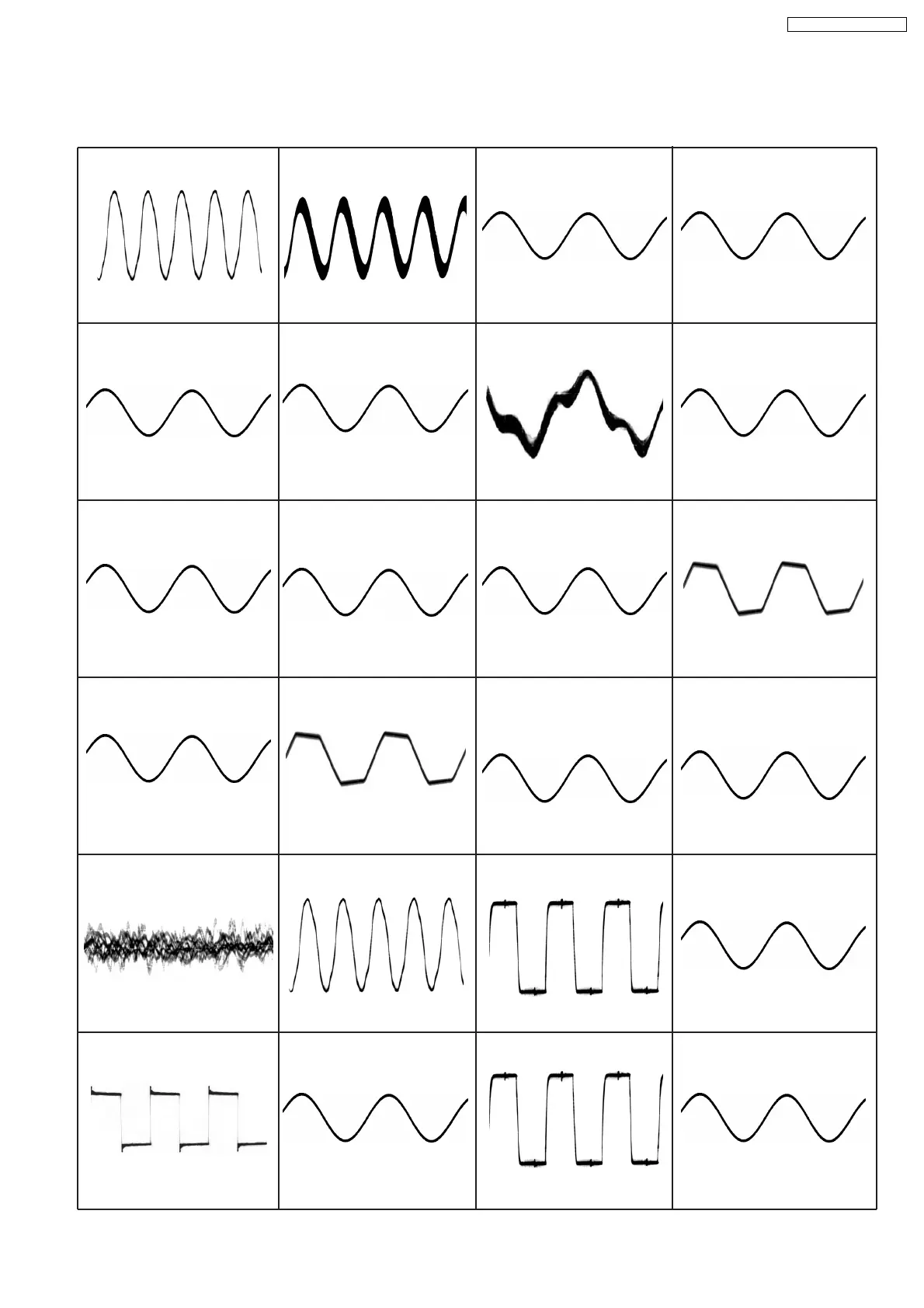

14.7. Waveform Chart
14.7.1. Waveform 1
WF No. IC2001-13 (PLAY)
5.2Vp-p(50usec/div)
WF No. IC2001-15 (PLAY)
3.8Vp-p(50usec/div)
WF No. IC2101-13 (PLAY)
5Vp-p(200usec/div)
WF No. IC2101-14,15,16,17,
18 (PLAY)
0.36Vp-p(200usec/div)
WF No. IC2101-19 (PLAY)
0.22Vp-p(200usec/div)
WF No. IC2101-52 (PLAY)
0.62Vp-p(200usec/div)
WF No. IC2101-60 (PLAY)
0.6Vp-p(20usec/div)
WF No. IC2101-80 (PLAY)
1.75Vp-p(200usec/div)
WF No. IC2101-81,82 (PLAY)
2.8Vp-p(200usec/div)
WF No. IC2101-95 (PLAY)
2.8Vp-p(200usec/div)
WF No. IC2101-96 (PLAY)
0.38Vp-p(200usec/div)
WF No. IC2101-99 (PLAY)
7.4Vp-p(200usec/div)
WF No. IC2101-100 (PLAY)
0.98Vp-p(200usec/div)
WF No. IC2102-1 (PLAY)
0.7Vp-p(200usec/div)
WF No. IC2102-7 (PLAY)
0.7Vp-p(200usec/div)
WF No. IC2101-30,41 (PLAY)
0.4Vp-p(200usec/div)
WF No. IC2101-44 (PLAY)
0.5Vp-p(5msec/div)
3.3Vp-p(20usec/div)
WF No. IC3901-87,88,89,90,
92,93,94,95 (PLAY)
WF No. IC5000-1 (PLAY)
5.6Vp-p(1usec/div)
WF No. IC5000-2 (PLAY)
0.84Vp-p(200usec/div)
WF No. IC5000-10,14 (PLAY)
80Vp-p(1usec/div)
WF No. IC5000-22 (PLAY)
0.84Vp-p(200usec/div)
WF No. IC5200-1 (PLAY)
5.6Vp-p(1usec/div)
WF No. IC5200-2 (PLAY)
0.84Vp-p(200usec/div)
87
SA-PT660P / SA-PT660PC
