10.1. Disassembling of TRV unit
•
• •

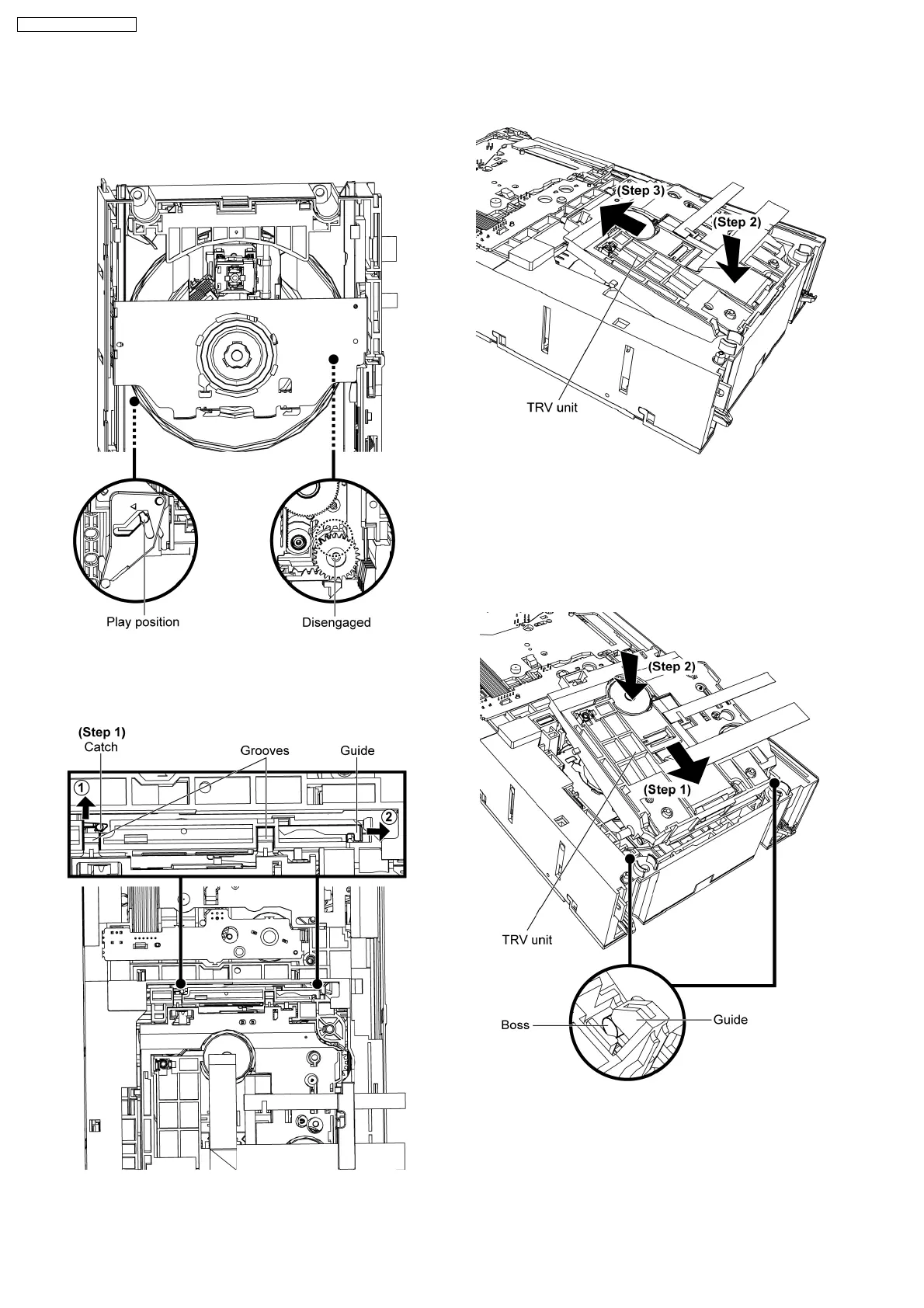

• Disassembly of TRV unit in play position
Note: The above picture shows the unit is in play
position.
Step 1: Release the catch and push the guide as arrows
shown to open both grooves.
Step 2: Press down the TRV unit.
Step 3: Remove the TRV unit as arrow shown.
10.2. Assembly of TRV unit
Step 1: Slot the TRV unit into the guides as arrow
shown.
Note: Ensure the bosses fix exactly onto the guides.
Step 2: Place down the TRV unit.
