Panasonic SA-PT860E - Main Components and P.C.B. Locations

159 pages

Save Page as PDF

To Next Page

To Previous Page

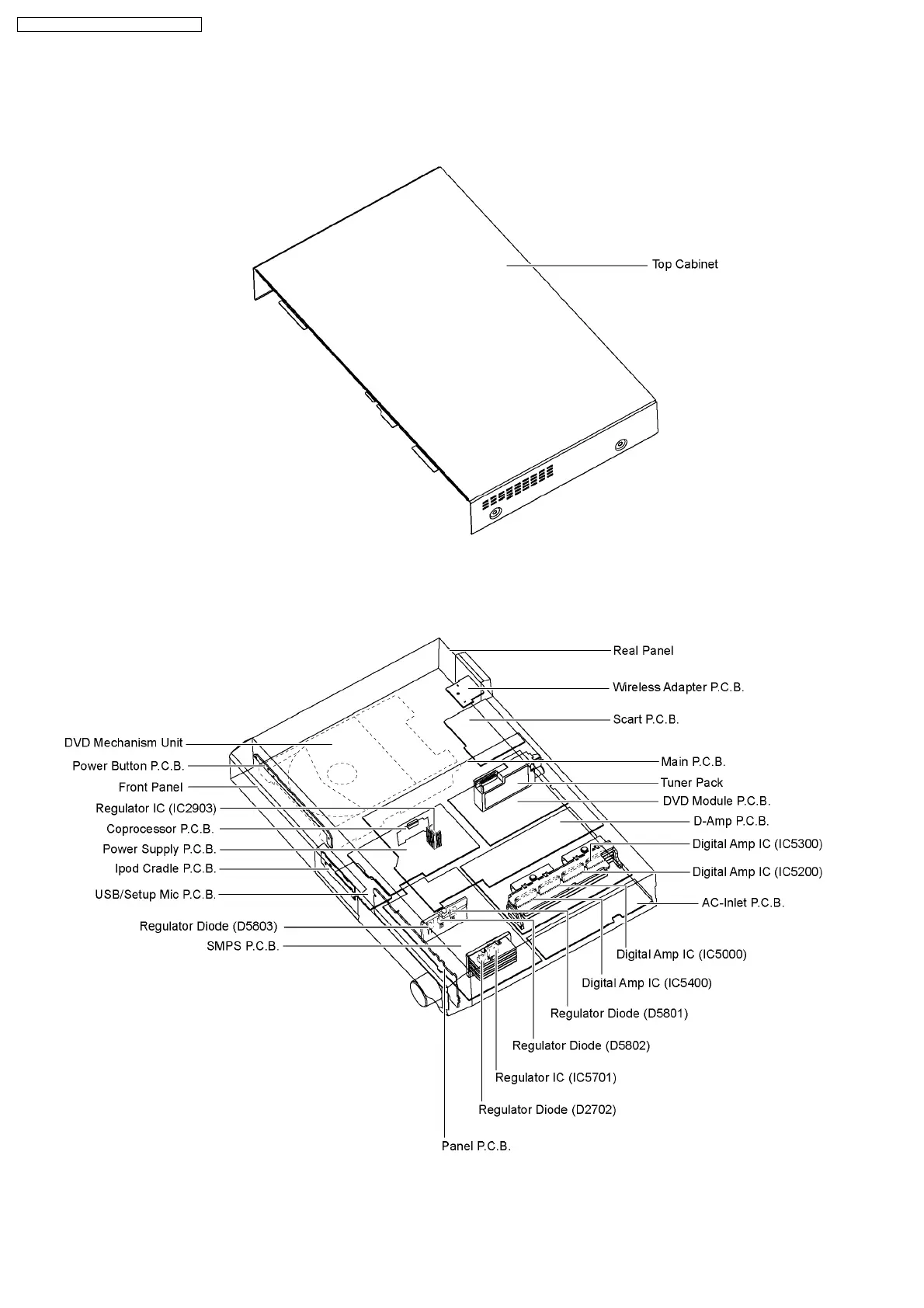

9.2. Main Components and P.C.B. Locations

SA-PT860E / SA-PT860EB / SA-PT860EG

Main Page

Table of Contents4
Safety Precautions6
General Guidelines6
Before Repair and Adjustment6
Protection Circuitry6
Safety Parts Information7
Caution for AC Cord (for EB Only)8
Prevention of Electrostatic Discharge (ESD) to Electrostatically Sensitive (ES) Devices9
Precaution of Laser Diode10
About Lead Free Solder (Pbf)11
Service Caution Based on Legal Restrictions11
Handling Precautions for Traverse Unit12
Cautions to be Taken in Handling the Optical Pickup Unit12
Grounding for Electrostatic Breakdown Prevention12
Accessories14
Operation Procedures15
Remote Control Key Buttons Operations15
Main Unit Key Buttons Operations16
Using the VIERA Link "HDAVI Control17
Using the Ipod19
USB Connection and Operation21
Audio and Video Connection22
Disc Information24
Self-Diagnosis and Special Mode Setting26
Service Mode Summary Table26
Service Mode Table26
Wireless Service Mode Summary Table33
Service Mode Table (Wireless - Eg. SH-FX67)34
DVD Self Diagnostic Function-Error Code36
Sales Demonstration Lock Function38
Service Precautions39
Assembling and Disassembling41
Disassembly Flow Chart43
Main Components and P.C.B. Locations44
Disassembly of Top Cabinet45
Disassembly of Rear Panel45
Disassembly of Scart P.C.B45
Disassembly of DVD Mechanism Unit46
Disassembly of Front Panel46
Disassembly of Panel P.C.B47
Disassembly of Power Button47
Disassembly of Usb/Setup MIC47
Disassembly of DVD Lid48
Disassembly of Ipod Cradle48
Disassembly of AC Inlet P.C.B49
Disassembly of Main P.C.B50
Disassembly of D-Amp51
Replacement of Digital Amp IC (IC5000)51
Replacement of Digital Amp IC (IC5200)53
Replacement of Digital Amp IC (IC5300)54
Replacement of Digital Amp IC (IC5400)56
Disassembly of SMPS57
Replacement of Switch Regulator IC (IC5701)57
Replacement of Switch Regulator Diode (D5702)58
Replacement of Regulator Diode (D5801)60
Replacement of Regulator Diode (D5802)60
Replacement of Regulator Diode (D5803)61
Disassembly of Power Supply62
Replacement of Regulator IC (IC2903)63
Disassembly of DVD Module64
Disassembly of Coprocessor65
Disassembly of Wireless Adapter65
Assembling and Disassembling of DVD Mechanism Unit66
Disassembly of Traverse Unit66
Assembly of Traverse Unit68
Service Fixture and Tools70
Service Position71
Checking & Repairing Main71
Checking & Repairing D-Amp71
Checking & Repairing SMPS73
Checking & Repairing Power Supply73
Checking & Repairing DVD Module74
Measurements and Adjustments77
Service Tools and Equipment77
Important Points in Adjustment77
Storing and Handling of Test Discs77
Optical Adjustment78
Voltage and Waveform Chart79
DVD Module79
D-Amp81
Main P.C.B82
Panel P.C.B83
Power Supply P.C.B83
Usb/Setup MIC AC Inlet P.C.B84
Scart P.C.B84
Smps P.C.b84
Waveform Chart85
Illustration of IC's, Transistors and Diodes88
Wiring Connection Diagram89
Block Diagram91
System Control91
DVD (Servo)92
DVD (Audio)93
DVD (Hdmi)94
Video95
Audio96
Digital Audio Amp97
Power98
Schematic Diagram Notes99
Schematic Diagram101
DVD Module Circuit101
Main Circuit106
Panel, Power Button Circuit110
Usb/Setup MIC Circuit111
D-Amp Circuit112
Power Supply Circuit114
SMPS Circuit116
AC Inlet, Ipod Cradle118
Coprocessor, Wireless Adapter Circuit119
Scart Circuit120
Printed Circuit Board121
DVD Module P.C.B121
Main P.C.B122
Panel, Power Button, Usb/Setup MIC, Power Supply & AC123
D-Amp P.C.B127
Basic Troubleshooting Guide127
Troubleshooting Guide for F61 And/Or F76127
Basic Troubleshooting Guide for Traverse Unit134
Basic Troubleshooting Guide for HDMI AV Output135
Overall Simplified Block for PT860137
SMPS Module & Power Supply Block138
Terminal Function of Ics139
IC1701 (MFI341S2095): IC Ipod Video139
Exploded Views141
Cabinet Parts Location141
Packaging142
Replacement Parts List143
Component Parts List144
