Panasonic SB-AFC301

soldered to the pattern part of the P.C.B..
For the replacement of the IC,the following instructions should be observed.

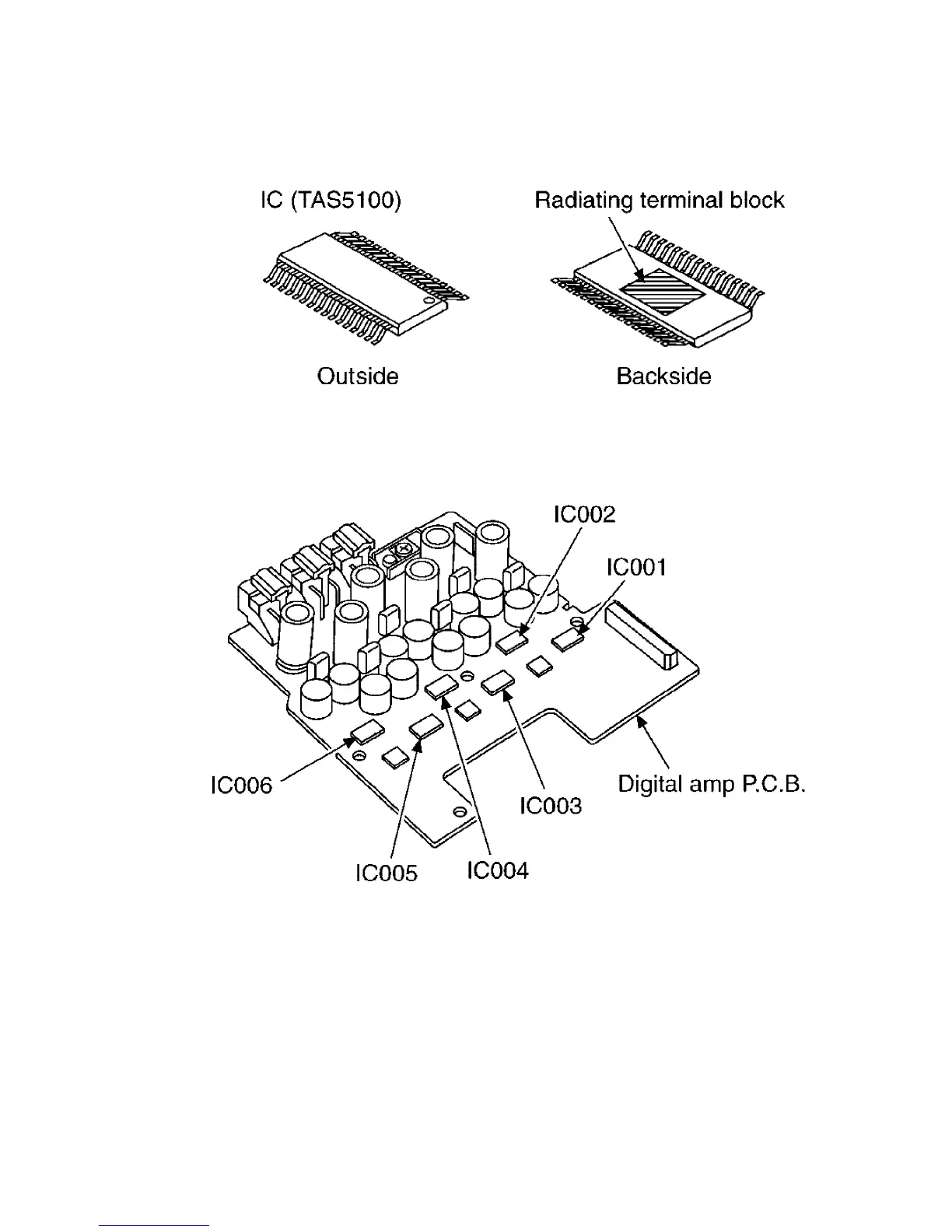

- IC001 - IC006 shown in the drawing below are ICs each equipped with a radiating
terminal block.
[Disassembly]
1. Use a blower and heat the IC (about 20 seconds).
23
