Getting started
13
VQT2S28

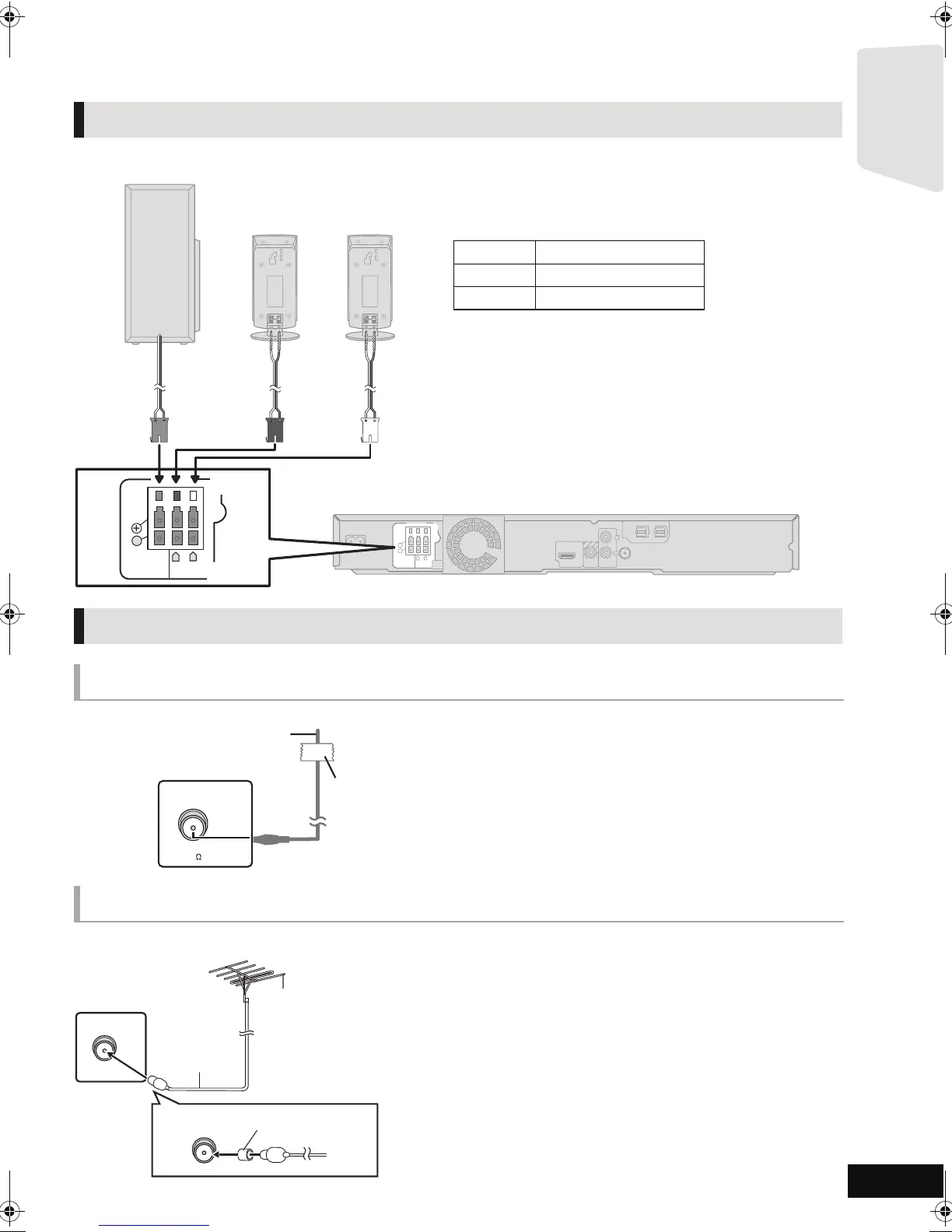

STEP 3: Connections
Turn off all equipment before connection and read the appropriate operating instructions.
Do not connect the AC mains lead until all other connections are complete.
Connect to the terminals of the same colour.
Use outdoor antenna if FM radio reception is poor.
Speaker cable connection
Radio antenna connection
Using an indoor antenna
Using an outdoor antenna
6Ω
FRONT
SUBWOOFER
3Ω
R
L
-
+
6Ω
FRONT
SUBWOOFER
3Ω
R
L
-
+
Main unit
PURPLE Subwoofer
RED Front speaker (Rch)
WHITE Front speaker (Lch)
FM ANT
(75 )
Main unit
A FM indoor antenna (included)
B Adhesive tape
Affix this end of the antenna where reception is best.
FM ANT
Ω
(75 )
Main unit
A FM outdoor antenna [Using a TV antenna
(not included)]
The antenna should be installed by a competent technician.
B 75 ≠ coaxial cable (not included)
C Antenna plug adaptor
≥ Keep the adaptor out of reach of children to prevent swallowing.
