Panasonic SC-BT222 - Main Unit (Front); Main Unit (Rear)

Getting started
9
VQT2S28
1 Standby/on switch (Í/I) (> 16)
Press to switch the unit from on to standby mode or vice
versa. In standby mode, the unit is still consuming a small
amount of power.
2 Power indicator
The indicator lights when this unit is turned on.
3 Connect iPod/iPhone (> 28)
4 Adjust the volume of the main unit
5 Open or close the disc tray (> 17)
6 Disc tray
7 SD card slot (> 17)
8 USB port (> 17)
9 Display (FL display)
10 Remote control signal sensor
Distance: within approx. 7 m.
Angle: Approx. 20e up and down, 30e left and right
11 Select the source (> 18)
12 Stop (> 20)
13 Start play (> 20)
∫ If the front cover comes off
1 Hold rear side of main unit by one hand and match up left
or right side protruding hook on the cover first with the
corresponding slot on the unit.
2 Push the hook firmly towards the unit until it clicks into
place. Then push the succeeding hooks one by one until
all have clicked into place.
3 Check that the cover now moves correctly.
≥ If it does not, remove it and repeat the above procedure.
1 AC IN terminal (> 16)
2 Speaker terminals (> 13)
3 Cooling fan
4 HDMI AV OUT terminal (> 15)
5 FM radio antenna terminal (> 13)
6 DIGITAL AUDIO IN terminals (> 14 , 15)
Terminal 1 is designated for connection with the TV.
Terminal 2 can be used with equipment other than the
STB.
7 VIDEO OUT terminal (> 14)
8 AUX terminal (> 14)

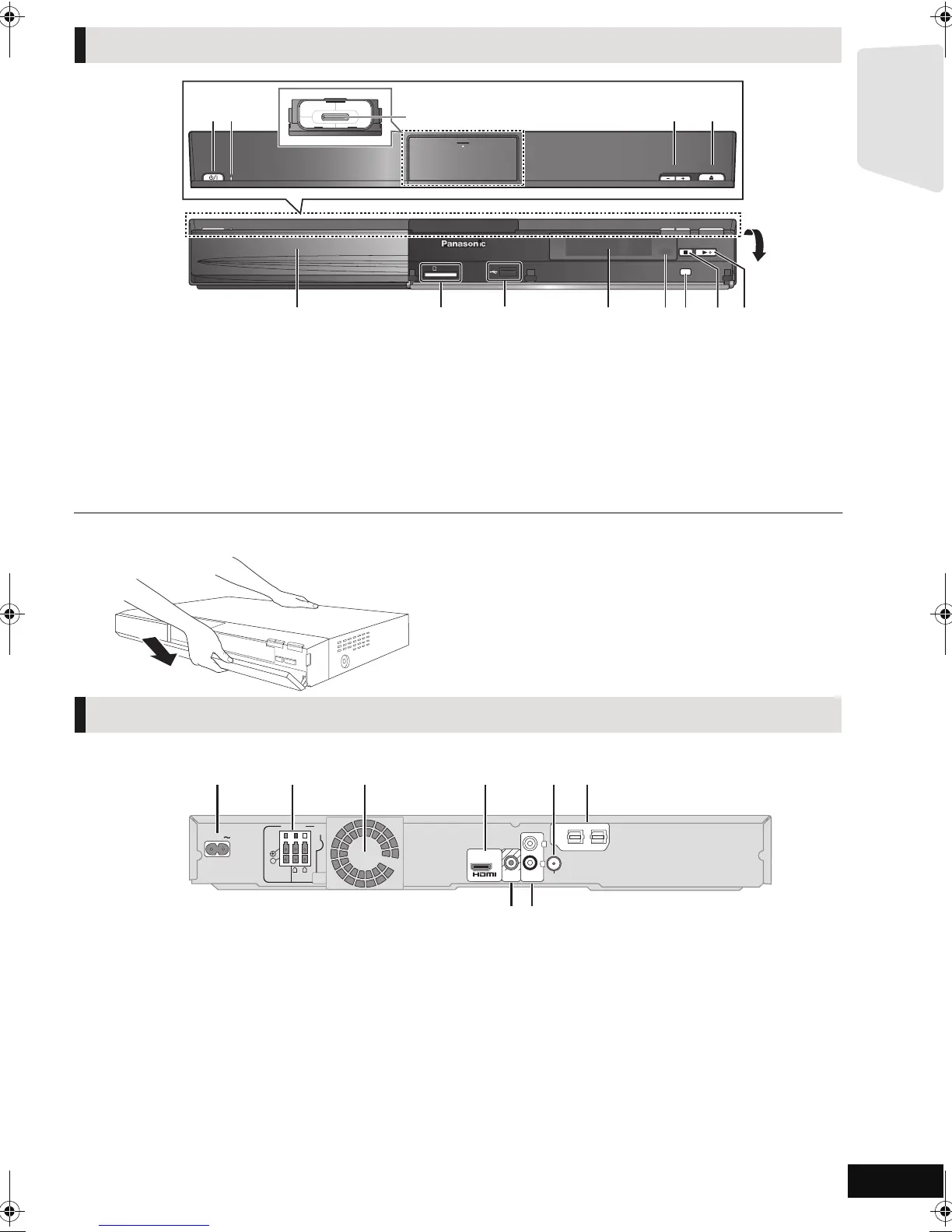

Main unit (Front)
OPEN/CLOSEVOLUME
iPod
SELECTOR
SD CARD
1 2
3
45
678
9
11
12 13
10
Pull open.
Main unit (Rear)
AC IN
6Ω
FRONT
SUBWOOFER
3Ω
R
L
-
AV
OUT
VIDEO
OUT
AUX
OPTICAL
21
DIGITAL AUDIO IN
+
FM ANT
75
()
Ω
L
R
AC IN
AV
OUT
(ARC)
VIDEO
OUT
AUX
OPTICAL
21
DIGITAL AUDIO IN
L
R
FM ANT
75
()
Ω
6Ω
FRONT
SUBWOOFER
3Ω
R
L
-
+
1 2 3 4 5 6
7 8
