Panasonic SC-BT222 - Advanced TV Connectivity; Best Picture and Audio Connections

Getting started
15
VQT2S28

≥To enjoy TV audio from this home theatre system’s speakers, select “DIGITAL IN 1 (TV)” or “D-IN 1” as a source (> 18).
ARC (Audio Return Channel)
(Available when using an ARC compatible TV)
With this function it is possible to receive the digital audio signal from the TV without connecting any other audio cables.
≥Select “ARC (TV)” as the audio input source (> 18)
≥Refer to the operating instructions of the TV for the settings to output digital audio.

≥To enjoy TV audio from this home theatre system’s speakers, select “DIGITAL IN 2 (CABLE/SAT)” or “D-IN 2” as a source
(> 18).
NECESSARY SETTINGS
≥ “HDMI Audio Output” : “Off” (> 34)

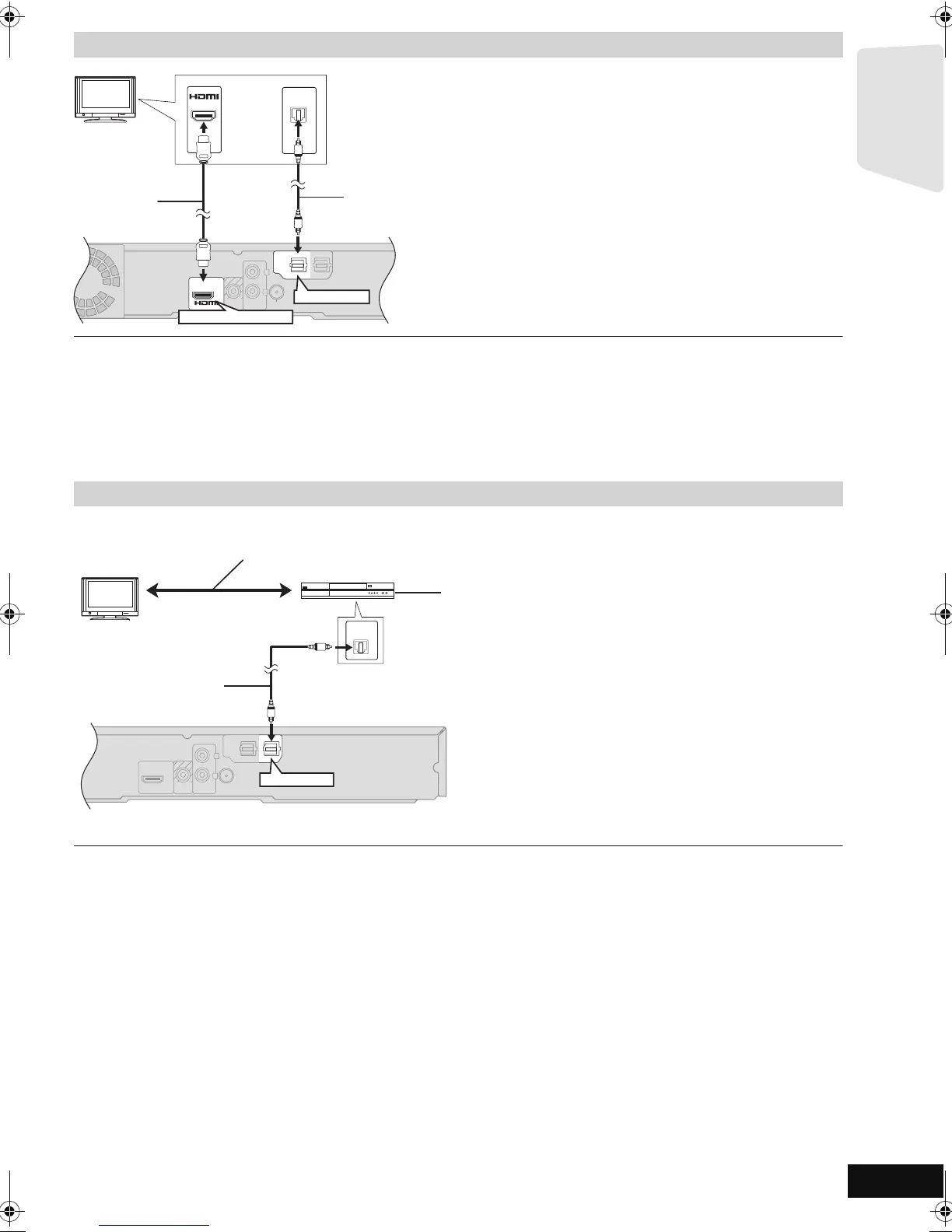

Connection for the best picture and audio
AV
OUT
VIDEO
OUT
AUX
OPTICAL
21
DIGITAL AUDIO IN
FM ANT
75
()
Ω
L
R
AV
OUT
AUX
OPTICAL
21
DIGITAL AUDIO IN
L
R
FM ANT
75
()
Ω
(ARC)
2
OPTICAL
1
DIGITAL AUDIO IN
OPTICAL
OUT
AV IN
OPTICAL 1
HDMI AV OUT (ARC)


TV
A HDMI cable (not included)
B Optical digital audio cable (not included)
≥ For the TV audio, an audio cable (not included) can be also
used by connecting the AUX terminal with the AUDIO OUT
terminal on the TV.
Connection with Set Top Box, etc.
AUX
L
R
L
R
OPTICAL
21
DIGITAL AUDIO IN
OPTICAL
1
DIGITAL AUDIO IN
OPTICAL
OUT
OPTICAL 2


TV
A Optical digital audio cable (not included)
B Set Top Box, cable TV, VCR, DVD recorder, etc.
Refer to the operating instructions of the respective
devices for the optimal connections.
