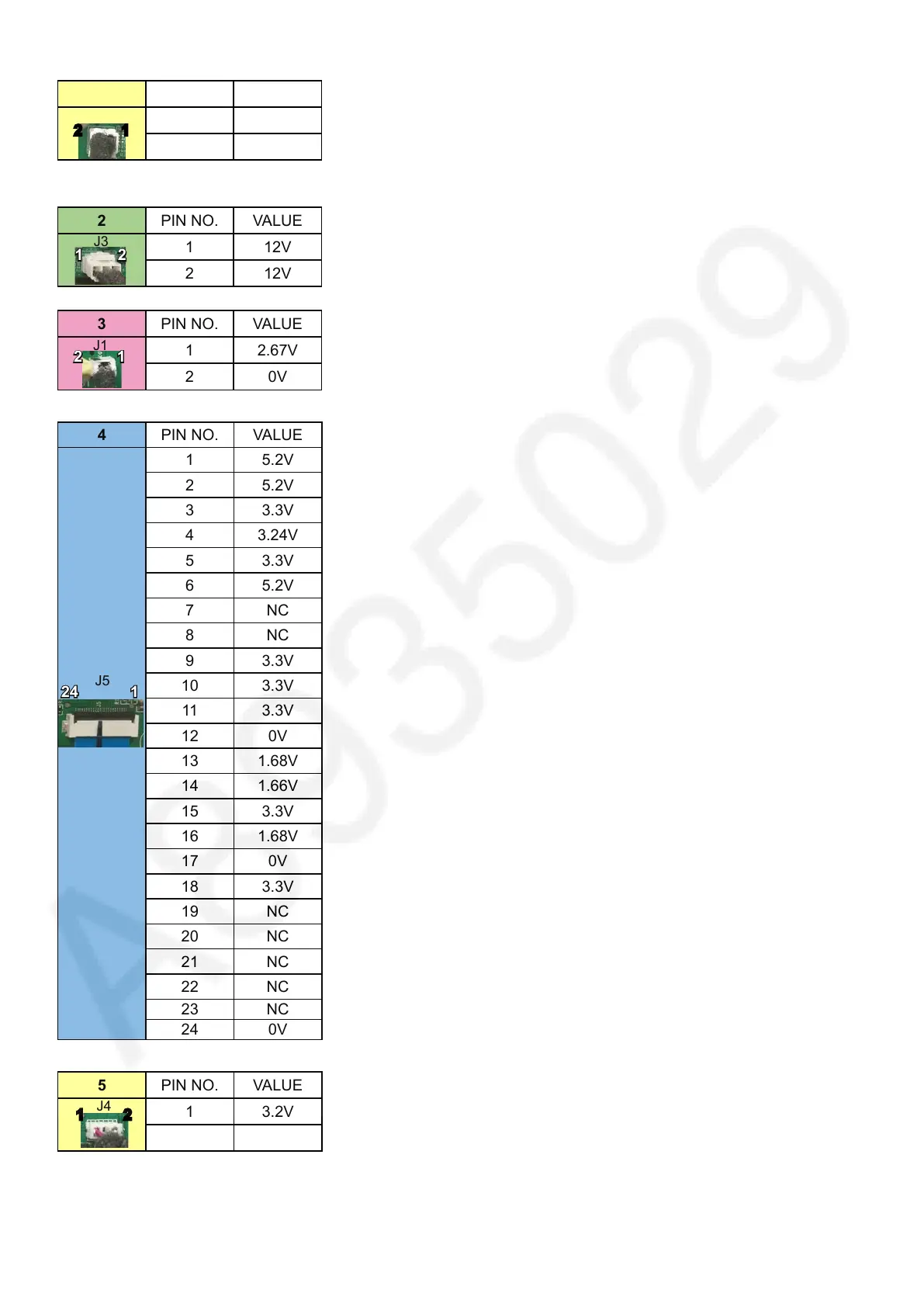

VOLTAGE DATA (measurement status:Power On and No external signal input )
1 PIN NO. VALUE
1 24V
2 0V
J2
2 PIN NO. VALUE
1 12V
2 12V
J3
4 PIN NO. VALUE
1 5.2V
2 5.2V
3 3.3V
4 3.24V
5 3.3V
6 5.2V
7 NC
8 NC
9 3.3V
10 3.3V
11 3.3V
12 0V
13 1.68V
14 1.66V
15 3.3V
16 1.68V
17 0V
18 3.3V
19 NC
20 NC
21 NC
22 NC
23 NC
24 0V
J5
24 1
CN207
3 PIN NO. VALUE
1 2.67V
2 0V
J1
XP114
5 PIN NO. VALUE
1 3.2V
2 0V
J4
2 1
1 2
2 1
1 2
