9.3.1. Top Cabinet Unit

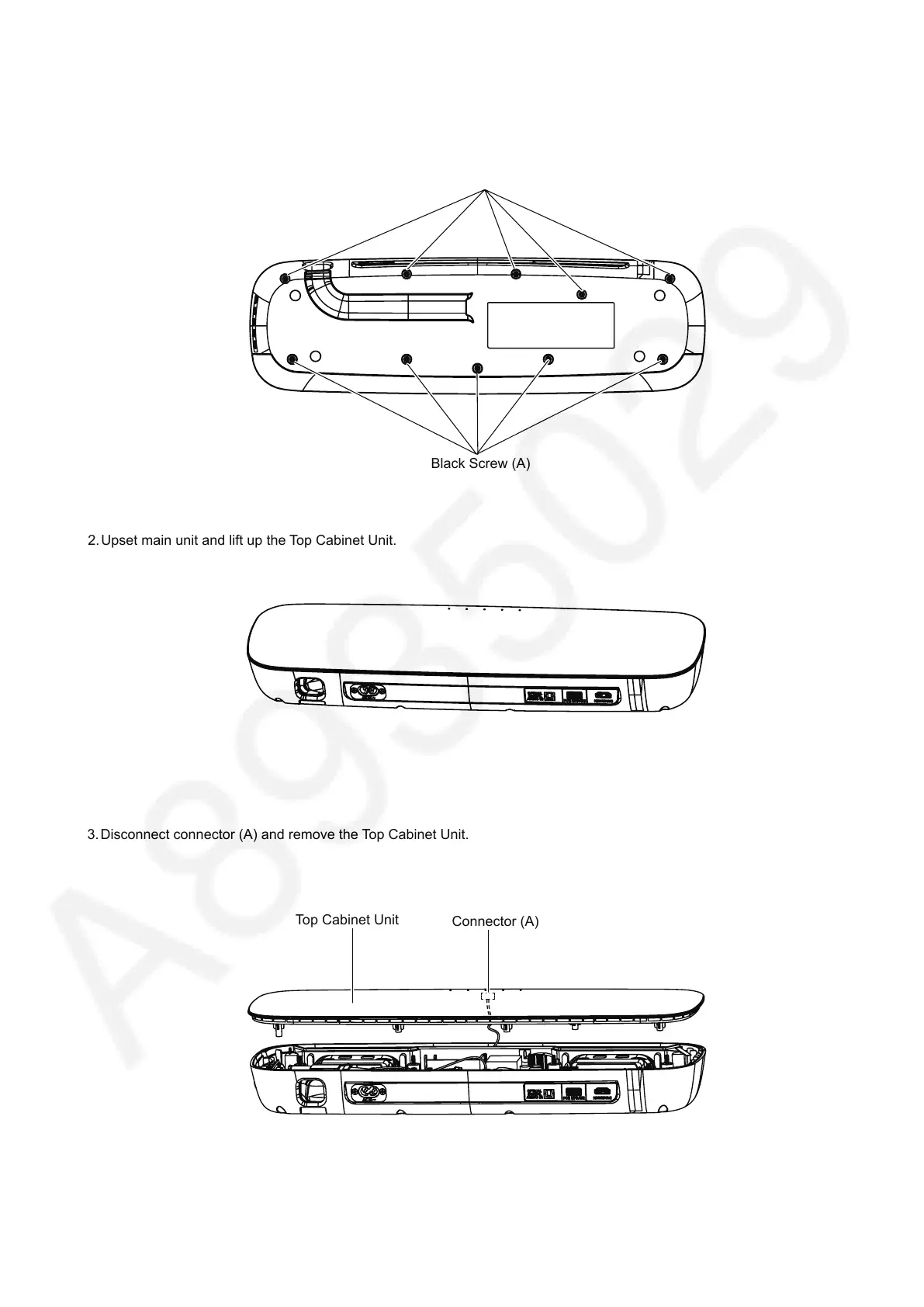

1. Remove 10 Black Screws (A) on the bottom cabinet.
Top Cabinet Unit
9.3. Disassembly Procedure of Main Unit (SU-HTB250)
Black Screw (A)
Black Screw (A)
2. Upset main unit and lift up the Top Cabinet Unit.
3. Disconnect connector (A) and remove the Top Cabinet Unit.
Connector (A)
