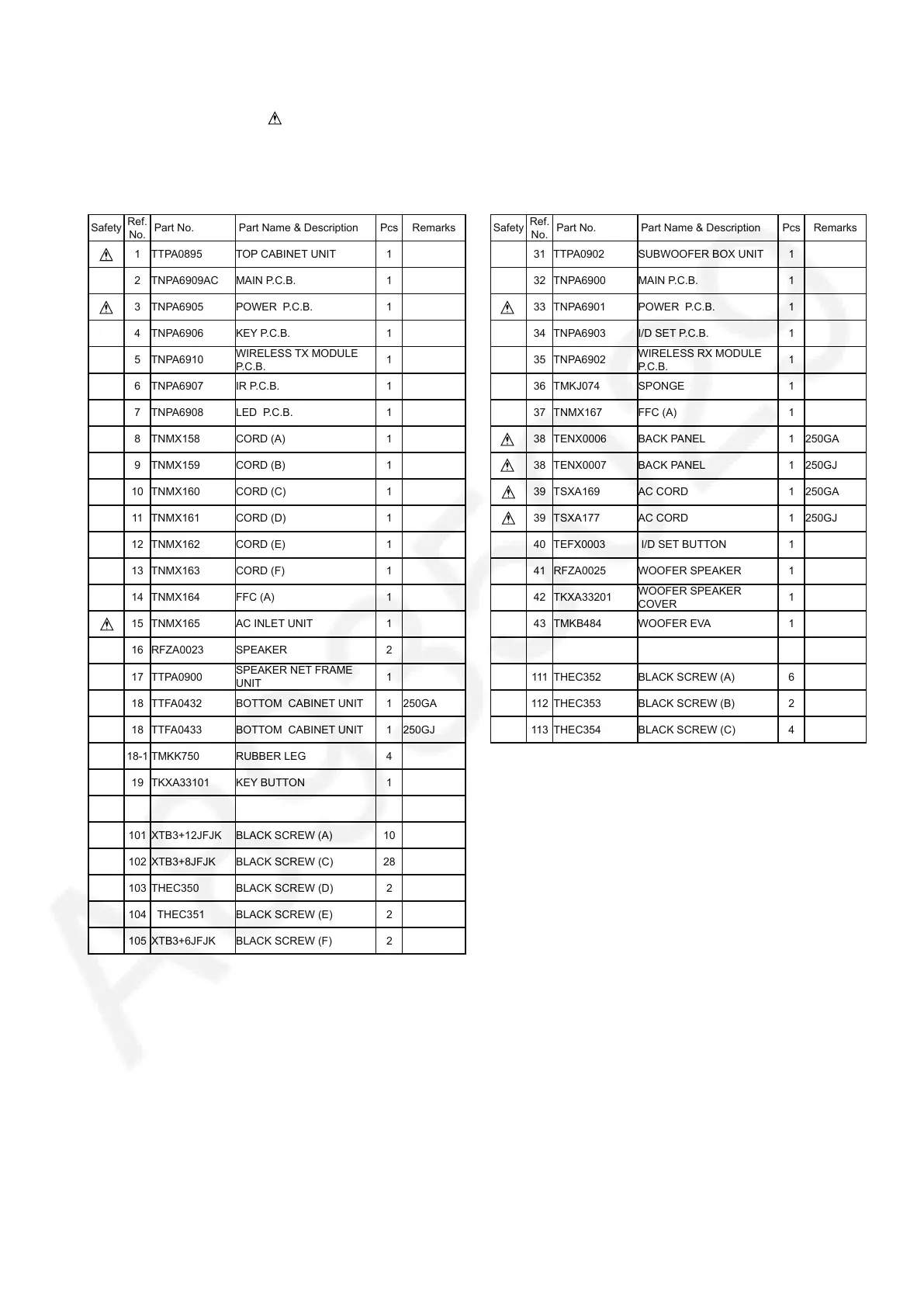

10.4. Replacement Parts List
Notes:
*Important safety notice:
Components identied by mark have special characteristics important for safety.
When replacing any components, be sure to use only manufacture’s specied parts shown in the parts list.
*All Parts are supplied by PHK.
10.4.1. Main Unit (SU-HTB250) 10.4.2. Active Subwoofer (SB-HWA250)
Safety
Ref.
No.
Part No. Part Name & Description Pcs Remarks
1 TTPA0895 TOP CABINET UNIT 1
2 TNPA6909AC MAIN P.C.B. 1
3 TNPA6905 POWER P.C.B. 1
4 TNPA6906 KEY P.C.B. 1
5 TNPA6910
WIRELESS TX MODULE
P.C.B.
1
6 TNPA6907 IR P.C.B. 1
7 TNPA6908 LED P.C.B. 1
8 TNMX158 CORD (A) 1
9 TNMX159 CORD (B) 1
10 TNMX160 CORD (C) 1
11 TNMX161 CORD (D) 1
12 TNMX162 CORD (E) 1
13 TNMX163 CORD (F) 1
14 TNMX164 FFC (A) 1
15 TNMX165 AC INLET UNIT 1
16 RFZA0023 SPEAKER 2
17 TTPA0900
SPEAKER NET FRAME
UNIT
1
18 TTFA0432 BOTTOM CABINET UNIT 1 250GA
18 TTFA0433 BOTTOM CABINET UNIT 1 250GJ
18-1 TMKK750 RUBBER LEG 4
19 TKXA33101 KEY BUTTON 1
101 XTB3+12JFJK BLACK SCREW (A) 10
102 XTB3+8JFJK BLACK SCREW (C) 28
103 THEC350 BLACK SCREW (D) 2
104 THEC351 BLACK SCREW (E) 2
105 XTB3+6JFJK BLACK SCREW (F) 2
Safety
Ref.
No.
Part No. Part Name & Description Pcs Remarks
31 TTPA0902 SUBWOOFER BOX UNIT 1
32 TNPA6900 MAIN P.C.B. 1
33 TNPA6901 POWER P.C.B. 1
34 TNPA6903 I/D SET P.C.B. 1
35 TNPA6902
WIRELESS RX MODULE
P.C.B.
1
36 TMKJ074 SPONGE 1
37 TNMX167 FFC (A) 1
38 TENX0006 BACK PANEL 1 250GA
38 TENX0007 BACK PANEL 1 250GJ
39 TSXA169 AC CORD 1 250GA
39 TSXA177 AC CORD 1 250GJ
40 TEFX0003 I/D SET BUTTON 1
41 RFZA0025 WOOFER SPEAKER 1
42 TKXA33201
WOOFER SPEAKER
COVER
1
43 TMKB484 WOOFER EVA 1
111 THEC352 BLACK SCREW (A) 6
112 THEC353 BLACK SCREW (B) 2
113 THEC354 BLACK SCREW (C) 4
