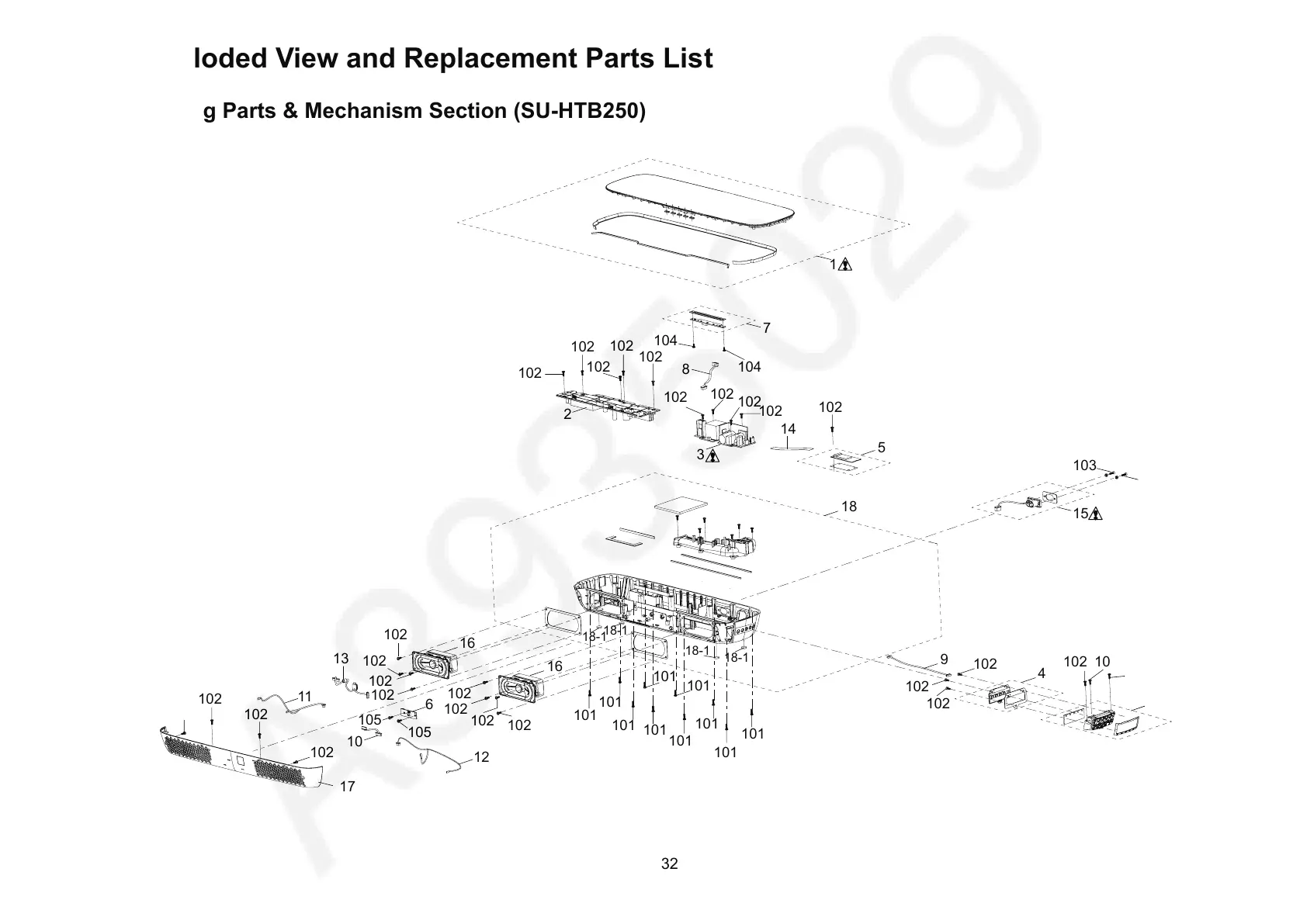

10 Exploded View and Replacement Parts List
10.1. Casing Parts & Mechanism Section (SU-HTB250)
1
102
2
102
3
8
7
15
5
14
18
9
4
19
102
102
102
102
102
102
101
101
101
101
101
101
101
101
101
101
105
102
102
102
102
102
102
102
102
102
102
102
102
102
102
102
102
104
104
102
102
102
16
17
12
10
11
13
6
105
16
103
18-1
18-1
18-1
18-1
103
102
