31
Figure. 2
2. Remove 4 Black Screws (C).
3. Slightly lift up Woofer Speaker in the direction of arrow.
4.Disconnect speaker wire.
5.Remove the Woofer Speaker.
Black
Screw (C)
Woofer Speaker
Red (+) Black (-)
Woofer Speaker
Cover
9.4.5. Wireless RX Module P.C.B.
1. Disconnect FFC cable.
2. Pull out the Sponge by thin brade driver in the direction of
arrow (1).
3. Pull out the Wireless RX Module P.C.B by thin brade driver
in the direction of arrow (2).
Note:
Before the installment,wipe off the double sticky
tape left on the subwoofer box unit completely.Moreover
when installing press the Wireless RX Module P.C.B.
onto the subwoofer box unit tightly.
(2)
(1)
Sponge
FFC cable
Wireless RX Module P.C.B.

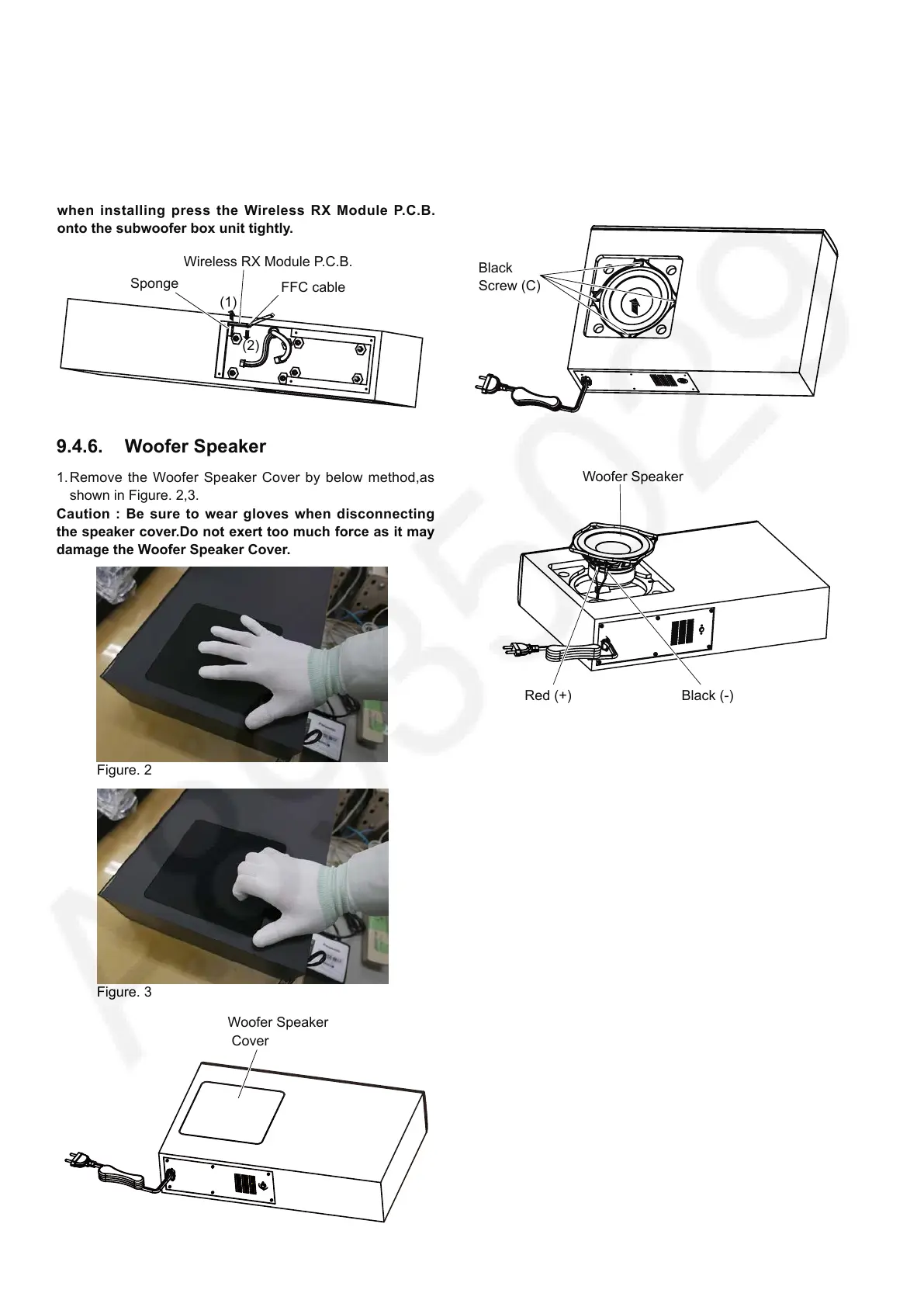

9.4.6. Woofer Speaker
1. Remove the Woofer Speaker Cover by below method,as
shown in Figure. 2,3.
Caution : Be sure to wear gloves when disconnecting
the speaker cover.Do not exert too much force as it may
damage the Woofer Speaker Cover.
Figure. 3
To Next Page
