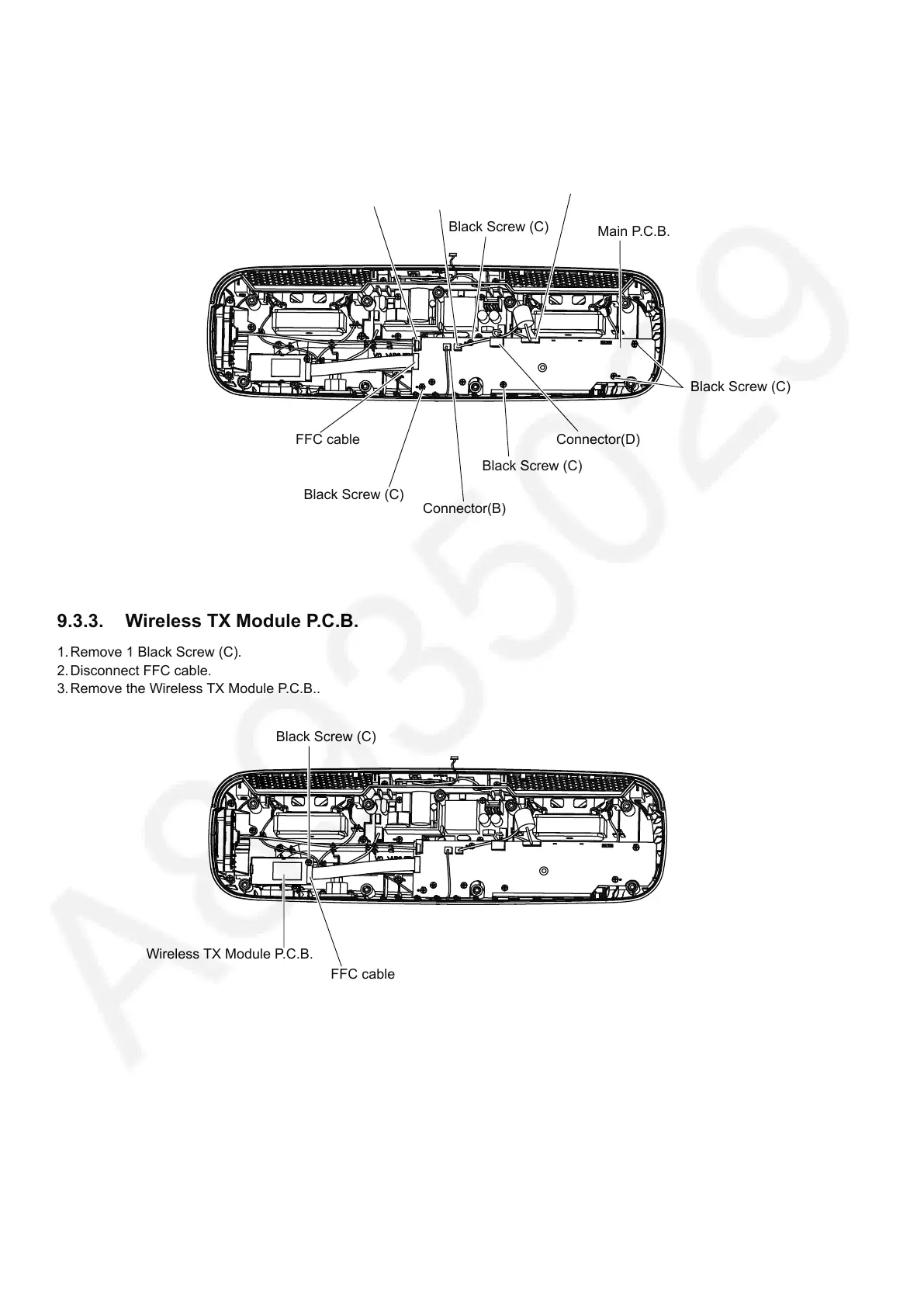

9.3.2. Main P.C.B.
1. Remove 5 Black Screws (C).
2. Disconnect connector (A)-(E) and FFC cable.
3. Remove the Main P.C.B..
Connector(C)
9.3.3. Wireless TX Module P.C.B.
1. Remove 1 Black Screw (C).
2. Disconnect FFC cable.
3. Remove the Wireless TX Module P.C.B..
Wireless TX Module P.C.B.
Connector(A)
Black Screw (C)
FFC cable
Black Screw (C)
Connector(B)
Black Screw (C)
Black Screw (C)
Connector(D)
Connector(E)
Main P.C.B.
Black Screw (C)
FFC cable
