Panasonic SC-HTB510 User Manual

12
TQBJ2196
Placing the main unit in a rack or on a table
Additionally required accessories (commercially available)
 Fall prevention cord (x2)
 Screw eyes (to attach the fall prevention cord) (x2)
Note:
• Use commercially available screws that are capable of supporting over 24 kg.
• Use a cord that is capable of supporting over 24 kg (with a diameter of about 1.5 mm).

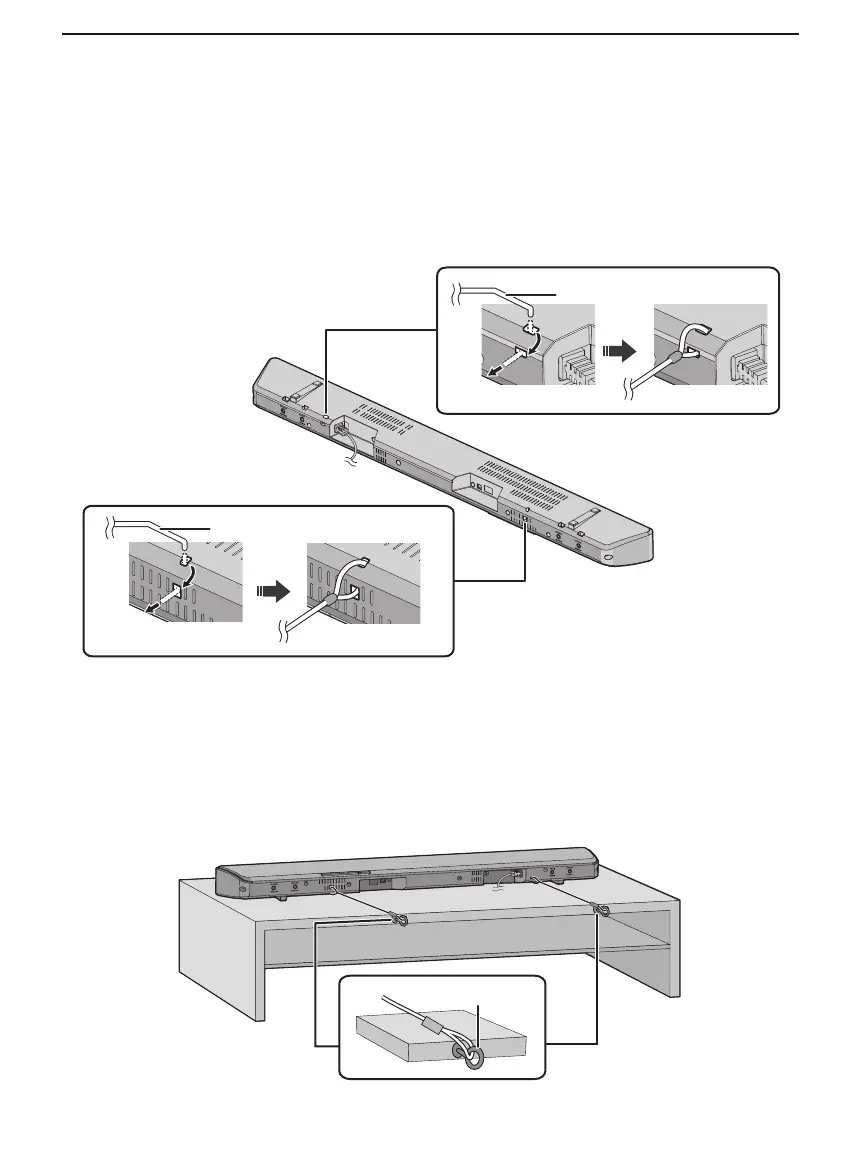

1 Attach the cord to the main unit.
If the cord cannot be threaded through the holes, try bending the cord, about 5 mm apart from the tip,
at an angle of 45° (as illustrated above).
2 Place the main unit in the desired position and attach each cord onto the
rack or table.
Make sure that the slack of the cord is minimal.
Do not lean the main unit against the TV or wall.
Attach the screw eye at a position capable of supporting over 24 kg.
Depending on the placement of the main unit, the screwing position of the screw eye may differ.
Cord
Cord
Screw eye
TQBJ2196_en.fm Page 12 Tuesday, February 26, 2019 6:32 PM

Panasonic SC-HTB510 Specifications

General

Audio decoders	DTS Digital Surround, Dolby Digital
RMS rated power	240 W
Audio output channels	2.1 channels
Audio Return Channel (ARC)	Yes
Wi-Fi	No
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Digital audio coaxial in	0
AC input voltage	220 - 240 V
AC input frequency	50 Hz
Power consumption (standby)	2 W
Product color	Black
Handheld remote control	-
Apple docking compatibility	Not supported
Woofer diameter (subwoofer)	6.3 \
Number of full-range drivers	2

Weight and Dimensions

Width	- mm
Soundbar weight	- g
