1 Use the measurements indicated below to identify the screwing positions on
the wall.
≥ Position the unit with at least 50 mm of space above the unit. If not, it may not be possible to access the buttons on this
unit.
2 Attach the wall mount brackets to the wall.
≥ The position in the wall where the screw is to be attached as well as the screw should be capable of supporting over
33 kg.
≥ Be sure to use a spirit level to ensure that both screwing positions are horizontal to each other.
≥ Keep the screws out of reach of children to prevent swallowing.
≥ Keep the wall mount brackets out of reach of children to prevent swallowing.
3 Complete all the necessary connections to this unit. (> 16 to 19)
≥ Connect the AC mains lead cord to this unit, but do not connect it to the household mains socket until the installation is
completed.
4 Attach the rear pads to the rear of the unit.
≥ Keep the rear pads out of reach of children to prevent swallowing.
5 Attach a cord (not supplied) to 2 safety holders.
≥ Use a cord which is capable of supporting over 33 kg.
≥ Keep the safety holders out of reach of children to prevent swallowing.

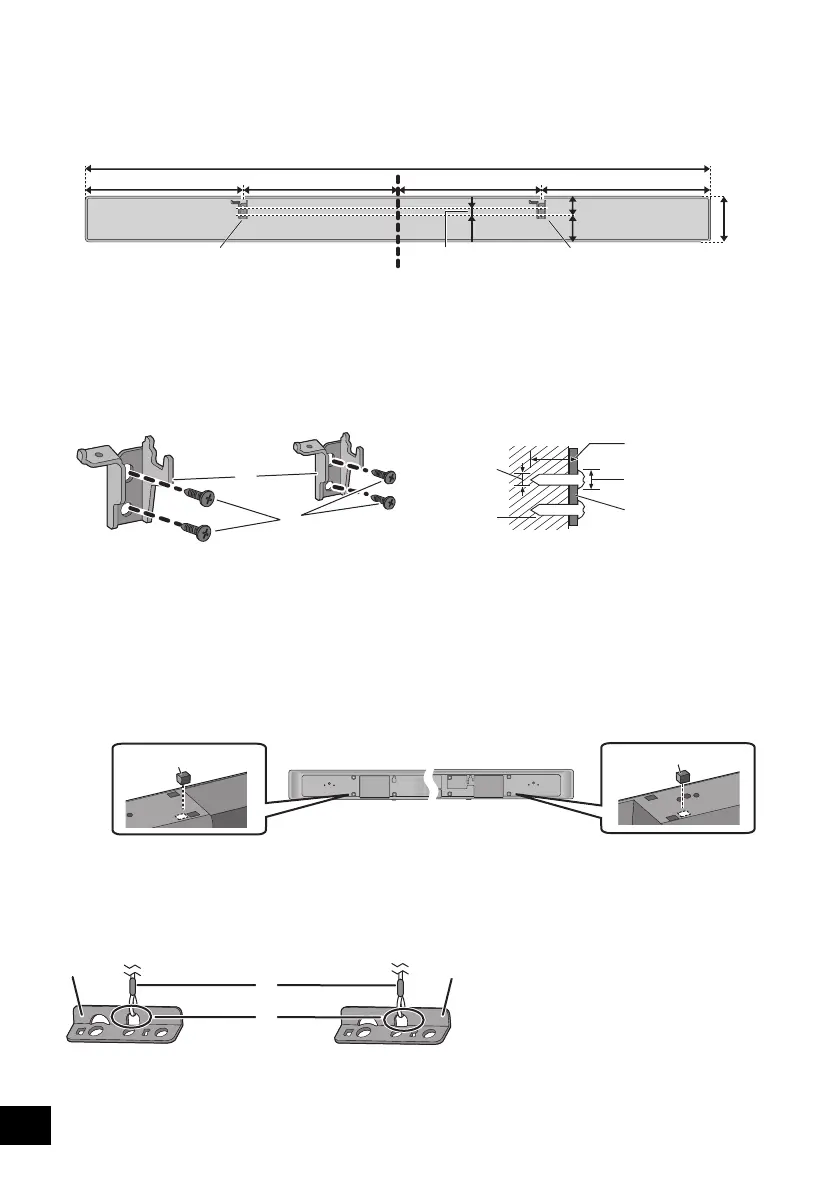

A Wall mount bracket
A At least 30 mm
B ‰4.0 mm
C ‰7.5 mm to
‰9.4 mm
D Wall
E Wall mount
bracket
B Wall mount bracket (supplied)
C Screws (not supplied)
D Rear pads (supplied)
E Safety holder (supplied)
F Cord (not supplied)
G Thread a cord through the holes.
Refer to the Operating
Instructions of the cord for
details.
252 mm257 mm 233.5 mm 275.5 mm
1018 mm
75 mm
31.5 mm
43.5 mm
12.5 mm
