RQT9666
11

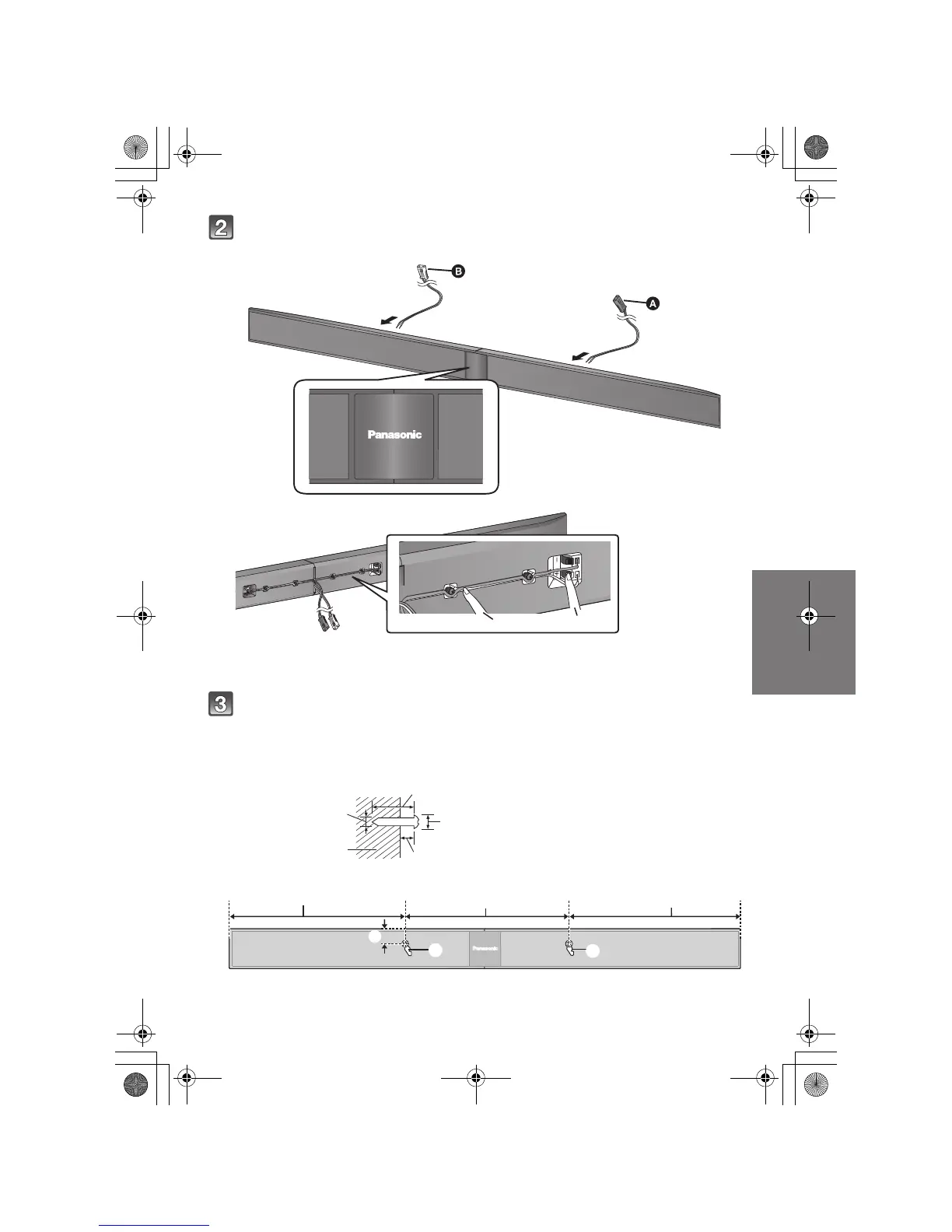

Connect the speaker cables.
≥ Use the “Panasonic” logo to identify the left and right speakers, then connect the cables (as illustrated).
≥ Insert the wire fully, taking care not to insert beyond the wire insulation.
Drive a screw into the wall.
≥ Use the measurements indicated below to identify the screwing positions on the wall.
≥ Leave at least 20 mm of space above and on each side of the speaker to allow enough space for fitting the speaker.
≥ The position on the wall where the screw is to be attached, as well as the screw, should be capable of supporting over
33 kg.
≥ Keep the screws out of reach of children to prevent swallowing.
1 Insert the wire
fully.
r: White
s: Blue line
2 Press into the
groove.
A RED: Right speaker channel (R)
B WHITE: Left speaker channel (L)
C At least 30 mm
D ‰4.0 mm
E ‰7.0 mm to ‰9.4 mm
F Wall or pillar
G 5.5 mm to 6.5 mm
H 326 mm I 316 mm J 316 mm K 26 mm
L Wall mounting hole
To Next Page
