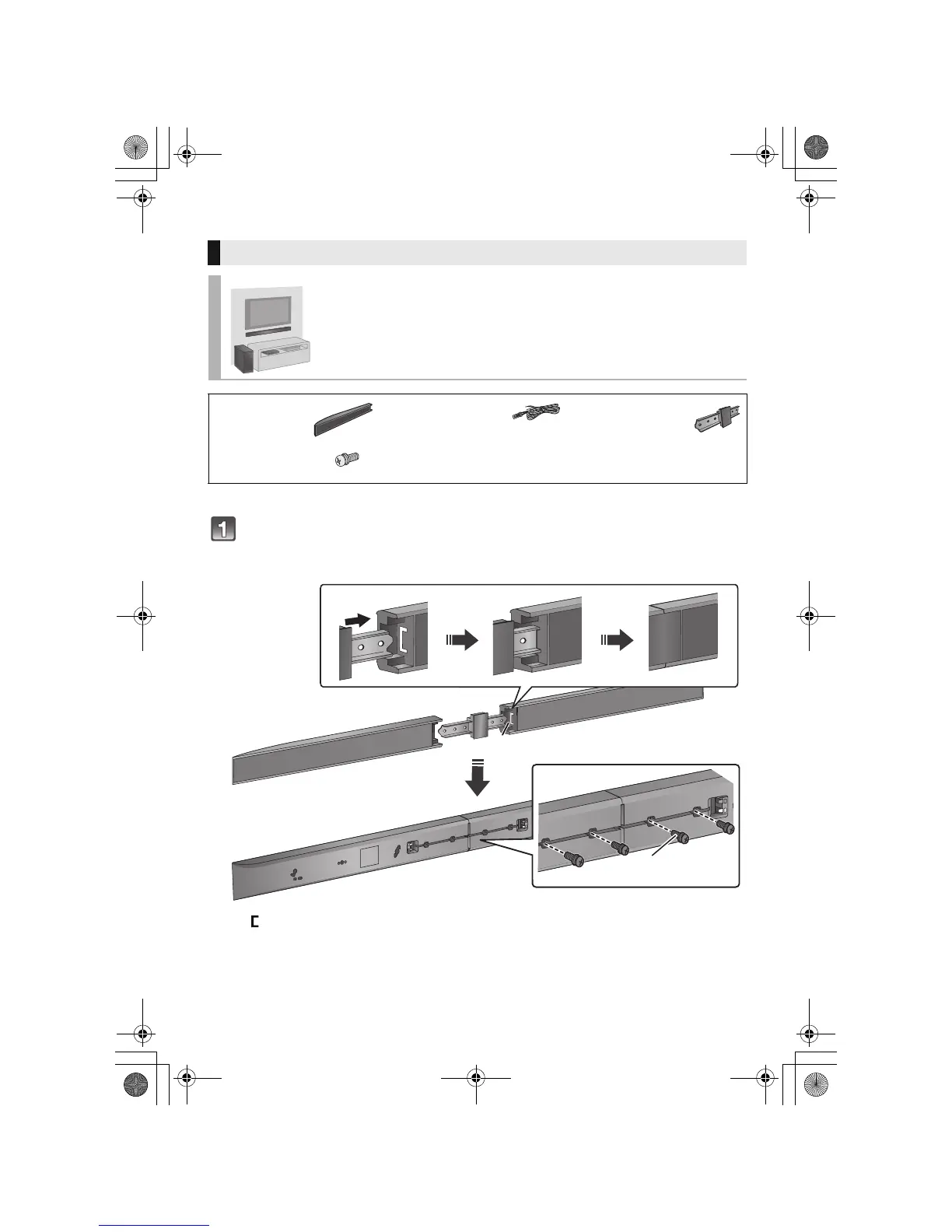

Step 2 Assembling the speakers
≥For a safety measure to prevent the speakers from falling, refer to page 17.
≥To prevent damage or scratches, lay down a soft cloth and perform the assembly on it.
Assemble the speakers.
≥ The two speakers are interchangeable.
When attaching the speakers to a wall
Place the speakers horizontally
∏ 2 Speakers ∏ 2 Speaker cables
(L): WHITE
(R): RED
∏ 1 Speaker joint
∏ 4 Screws
A
“”
shaped slit
≥ Insert the speaker joint fully into the slit.
B Screw (supplied)
≥ Be sure to insert the screws following the order as indicated in the illustration.
≥ Keep the screws out of reach of children to prevent swallowing.

2
4
1
3

