Indicator illumination

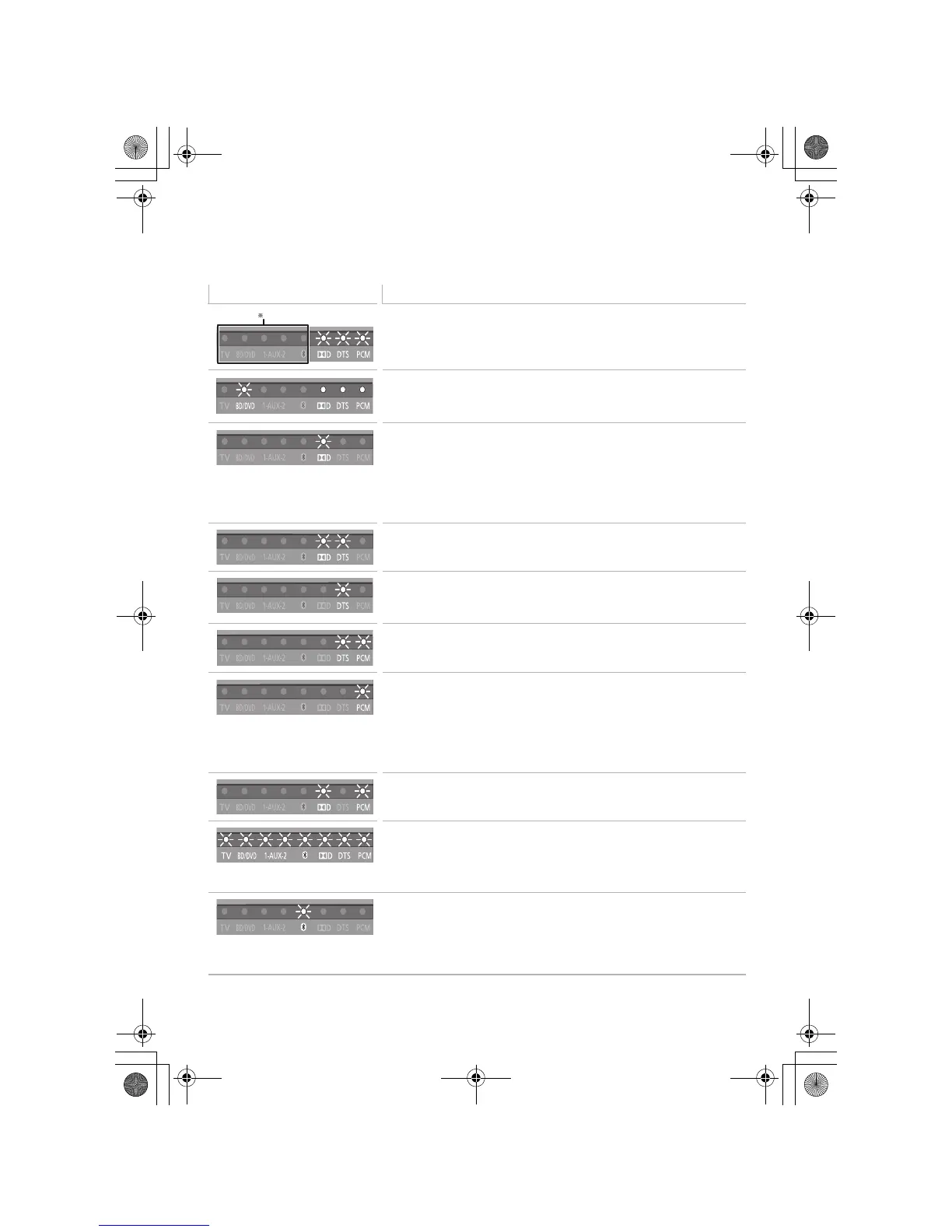

The indicators display the condition of this system by flashing. The indicator patterns illustrated below
are displayed during normal operational conditions. They do not refer to the indications of a problem.
Refer to “Troubleshooting” (> 28) if the indicators do not light up as illustrated below.
§1 The selected source indicator will also light.
§2 The BD/DVD indicator stops blinking and lights once the wireless pairing is successful.
Indicator Description
The indicators blink simultaneously.
≥ When “MUTE” is on (> 23)
The BD/DVD indicator blinks
§2
and audio format indicators light up in
sequence for 1 minute.
≥ When the main unit is in wireless pairing mode with the active subwoofer
(> 29)
The indicator blinks for 10 sec.
≥ When the dialog effect level or the subwoofer level is 1 (> 23)
≥ When the audio output mode is Multi-channel mode (> 24)
≥ When the dual audio setting is Main (> 26)
≥ When the auto gain control is on (> 26)
≥ When the Bluetooth
®
communication is mode 1 (> 26)
≥ When 3D surround effect and clear-mode dialog effect are on (> 26)
≥ When the auto standby function is on (> 27)
The indicators blinks for 10 sec.
≥ When the dialog effect level or the subwoofer level is 2 (> 23)
≥ When the audio output mode is Auto mode (> 24)
The indicator blinks for 10 sec.
≥ When the audio output mode is Auto mode (> 24)
The indicators blinks for 10 sec.
≥ When the dialog effect level or the subwoofer level is 3 (> 23)
The indicator blinks for 10 sec.
≥ When the dialog effect level or the subwoofer level is 4 (> 23)
≥
When the audio output mode is 2ch mode
(> 24)
≥ When the dual audio setting is Secondary (> 26)
≥ When the auto gain control is off (> 26)
≥ When the Bluetooth
®
communication is mode 2 (> 26)
≥ When 3D surround effect and clear-mode dialog effect are off (> 26)
≥ When the auto standby function is off (> 27)
The indicators blink for 10 sec.
≥ When the dual audio setting is Main and Secondary (> 26)
The indicators blink for 10 sec.
≥ When the remote control code is changed (> 27)
The indicators blink once.
≥
When changing the setting (“To reduce the clear-mode dialog effect”, “To turn
off VIERA Link “HDAVI Control””, and “To turn off the volume limitation”) (
>
27)
Bluetooth
®
indicator blinks quickly.
≥ When the main unit is ready for pairing
Bluetooth
®
indicator blinks slowly.
≥ When the main unit is waiting to connect
Bluetooth
®
indicator turns on.
≥ When the main unit is connected with a Bluetooth
®
device
