6
RQT9666

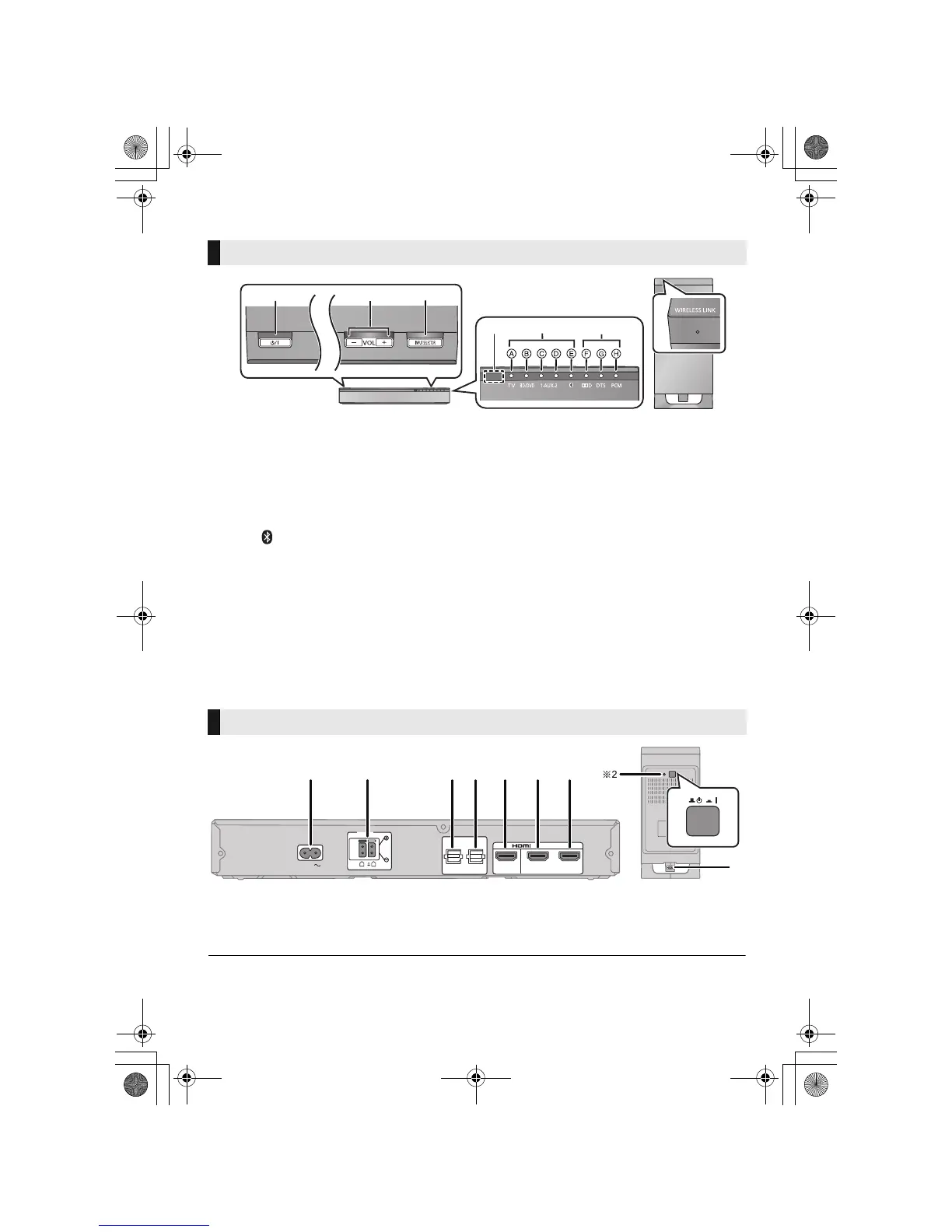

Control reference guide
1 Standby/on switch (Í/I)
Press to switch the unit from on to standby
mode or vice versa. In standby mode, the unit
is still consuming a small amount of power.
2 Adjust the volume of the speakers
3 Select the input source
“TV”#“BD/DVD”#“AUX1”
^--- “”(-- “AUX2”(}
4 Remote control signal sensor (> 7)
5 Input selector indicators
§1
A TV indicator
Lights green when the TV is the audio
source
B BD/DVD indicator
Lights amber when the device connected
to the BD/DVD terminal is the audio
source
C AUX1 indicator
Lights amber when the device connected
to the AUX1 terminal is the audio source
D AUX2 indicator
Lights amber when the device connected
to the AUX2 terminal is the audio source
E Bluetooth
®
indicator
Lights blue when the Bluetooth
®
device is
the audio source
6 Audio format indicators
§1
F Dolby Digital indicator
Lights when Dolby Digital is the current
audio format
G DTS indicator
Lights when DTS is the current audio
format
H PCM indicator
Lights when PCM (2ch, Multi-channel) is
the current audio format
7 WIRELESS LINK indicator (> 22)
1 AC IN terminal (> 21)
2 Speaker terminals (> 21)
3 TV terminal (> 19)
4 AUX2 terminal (> 20)
5 HDMI OUT terminal (ARC compatible) (> 19)
6 BD/DVD terminal (> 20)
7 AUX1 terminal (> 20)
8 Active subwoofer on/off button
§1 The indicators will also blink in various conditions (> 30)
§2 The I/D SET button is only used when the main unit is not paired with the active subwoofer (> 29)
Main unit and active subwoofer (Front)
