You can direct the audio signal from the connected Blu-ray Disc
TM
player, DVD player, Set Top Box, etc.
to this system.
Preparation
≥Connect the main unit to the TV (> 19).
∫ HDMI standby pass-through
Even if the main unit is in standby mode, the audio and/or video signal from the device connected to the BD/DVD or AUX1
terminal will be sent to the TV connected to the HDMI OUT terminal (the sound will not be output from this system). When
devices are connected to both BD/DVD and AUX1 terminals, audio and/or video signal of the device whose input is lastly
selected is output.
∫ 3D compatibility
Compatible with FULL HD 3D TV and Blu-ray Disc
TM
player.
≥ The main unit can pass the 3D video signal from a 3D compatible Blu-ray Disc
TM
player to a FULL HD 3D TV.

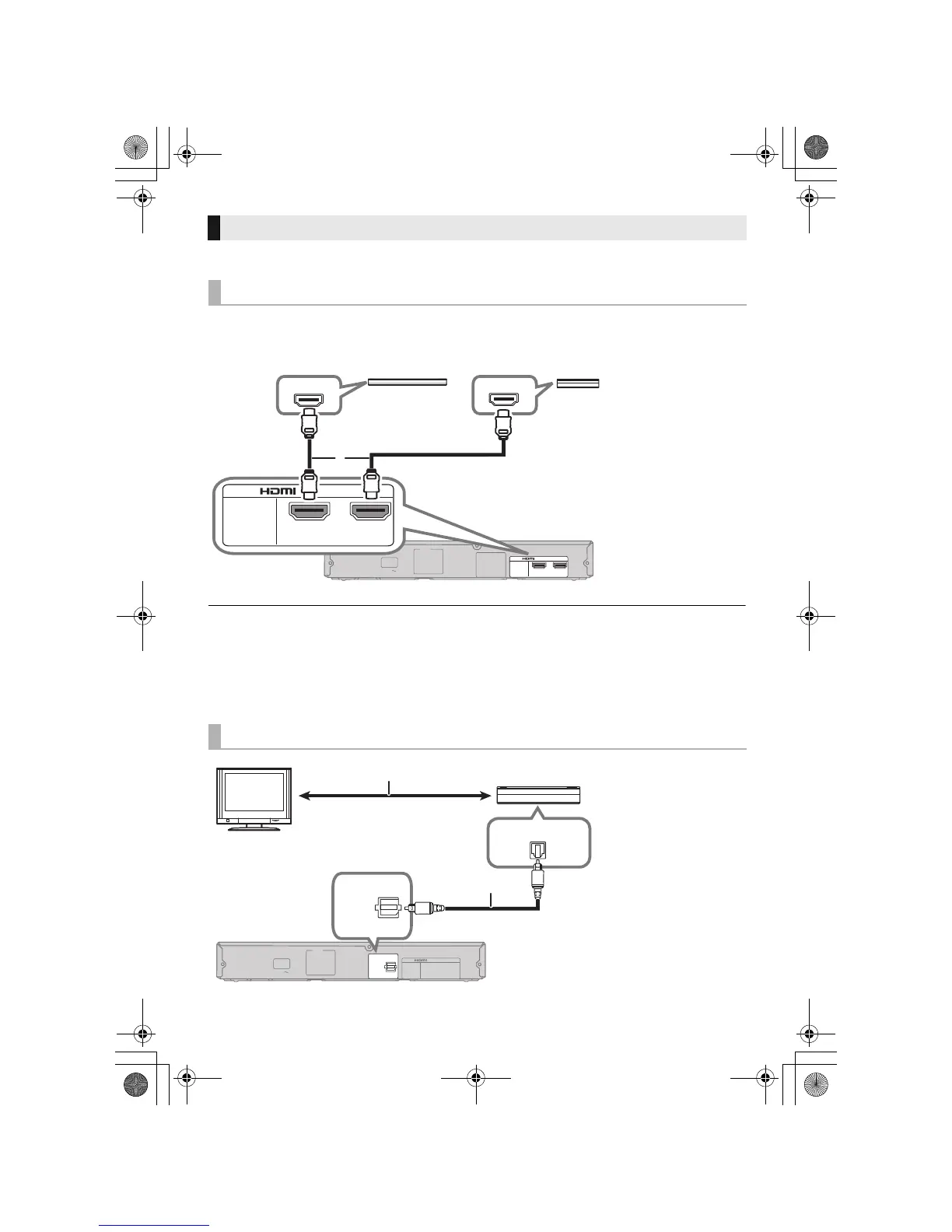

Connection with other devices
When the device has an HDMI terminal
A HDMI cable
When the device has an optical digital audio output terminal
B Refer to the operating
instructions of the
respective devices for
the optimal connection
C Optical digital audio
cable
HDMI OUT
HDMI OUT
SPEAKERS
AV IN
DIGITAL
AUDI O
IN
BD/DVD
(HDMI1)
BD/DVD
(HDMI1)
AUX1
(HDMI2)
AC IN
AV IN
BD/DVD
(HDMI1)
BD/DVD
(HDMI1)
AUX1
(HDMI2)

e.g., Video game console
Main unit
e.g., Blu-ray Disc
TM
player
OPTICAL OUT
SPEAKERS
DIGITAL
AUDIO
IN
AUX2
(OPT2)
AC IN
DIGITAL
AUDIO
IN
AUX2
(OPT2)


e.g., Set top box
Main unit
TV
SC-HTB550_RQT9660_mst.book Page 20 Monday, January 30, 2012 4:53 PM

Panasonic SC-HTB550 Specifications

General

Audio decoders	Dolby Digital, Dolby Pro Logic II, DTS
RMS rated power	240 W
Audio output channels	2.1 channels
Audio Return Channel (ARC)	Yes
Impedance	6 Ω
Woofer diameter	65 mm
Tweeter diameter	25 mm
Soundbar speaker RMS power	120 W
Total Harmonic Distortion (THD)	10 %
Subwoofer connectivity	Wireless
FM radio	No
Product color	Black
Recommended usage	Home theatre
Consumer Electronics Control (CEC)	VIERA Link
Apple docking compatibility	Not supported
Soundbar dimensions (WxDxH)	956 x 35 x 75 mm
Subwoofer dimensions (WxDxH)	180 x 306 x 408 mm
Connectivity technology	Wired
Digital audio optical in	1
Power source	AC
AC input voltage	220-240 V
AC input frequency	50 Hz
Power consumption (standby)	0.4 W
Power consumption (typical)	50 W

Weight and Dimensions

Soundbar weight	1540 g
Subwoofer weight	5200 g
