1. Remove a screw from the solenoid.
2. Remove the solenoid holder plate and spring A.
Before turning the body upside down, remove the kneading
blade, bread pan assembly, measuring spoon, and
measuring cup.
1. Turn the body upside down and remove the four screws
from the rubber foot.
2. Remove the two screws labeled A and two screws labeled
H from the bottom plate.
Caution:
Screw A: Bottom plate, Body
Screw H: Bottom plate, Angle unit

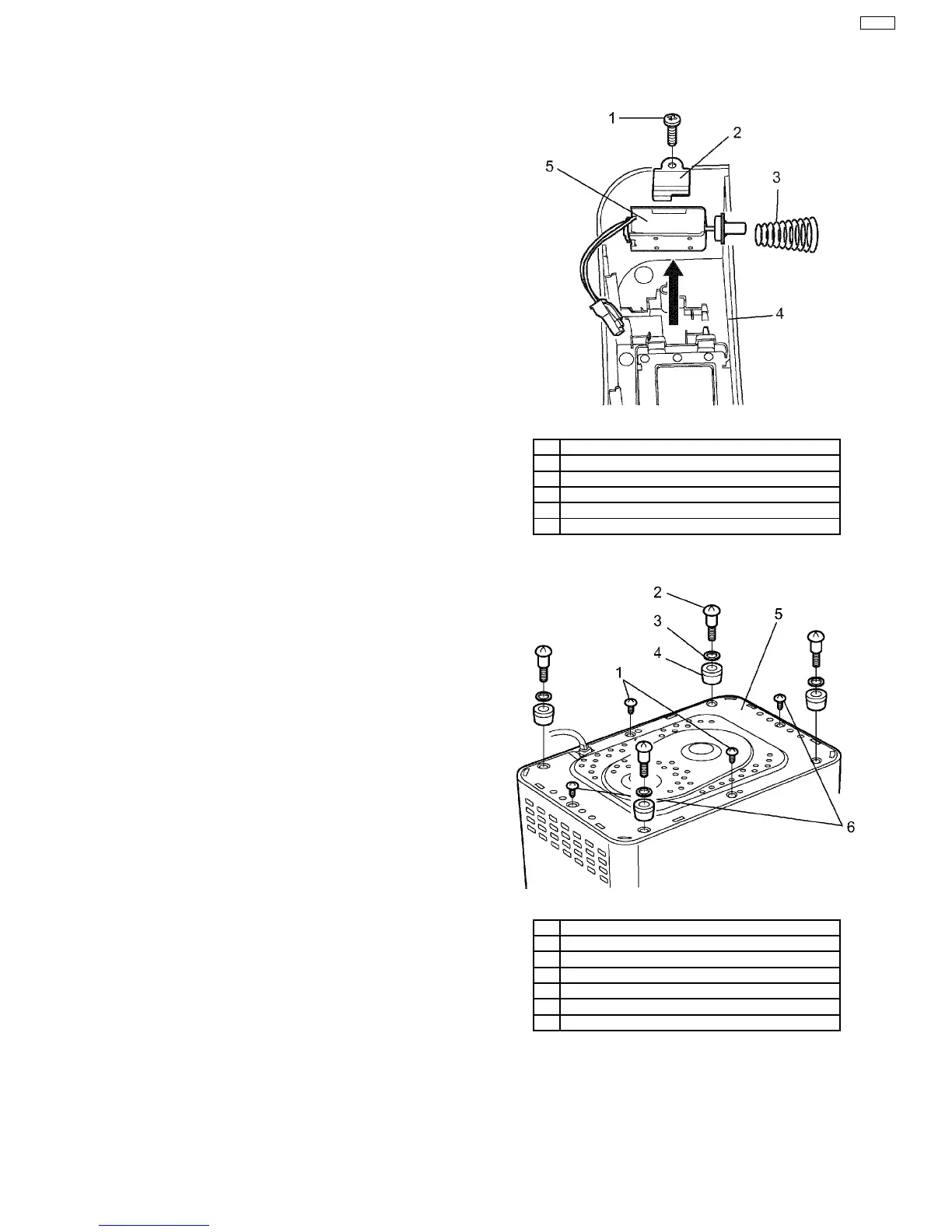

Fig.8
No. Parts Name
1 Screw
2 Solenoid holder plate
3 Spring A
4 Control panel Ass’y
5 Solenoid Ass’y
Fig.9
No. Parts Name
1 Screw H
2 Screw
3 Washer
4 Rubber foot
5 Bottom plate
6 Screw A
3.4. Solenoid
3.5. Bottom plate
13
SD-253
To Next Page
