7. SETTING PROCEDURE
 Make sure to perform setting operations 2, 3 in the power supply off condition.
1. S-LINK system side output setting in case of upper network failure
Perform the S-LINK system side output setting for the case when data exchange cannot be
done with the master as per “8. S-LINK SYSTEM SIDE OUTPUT IN CASE OF UPPER NET-
WORK FAILURE.”
2. S-LINK system side settings
Set the following items as per “3. FUNCTIONAL DESCRIPTION.”
 Mode setting
 I/O channel No. setting
 I/O setting
 Status setting
3. DeviceNet side setting
Set the following items as per “3. FUNCTIONAL DESCRIPTION.”
 Transmission speed setting
 Address setting (MAC ID)
4. S-LINK system address recognition
After completion of the S-LINK10. S-
LINK SYSTEM SIDE ADDRESS RECOGNITION” and “11. DISPLAY OF RECOGNIZED AD-
DRESSES.”

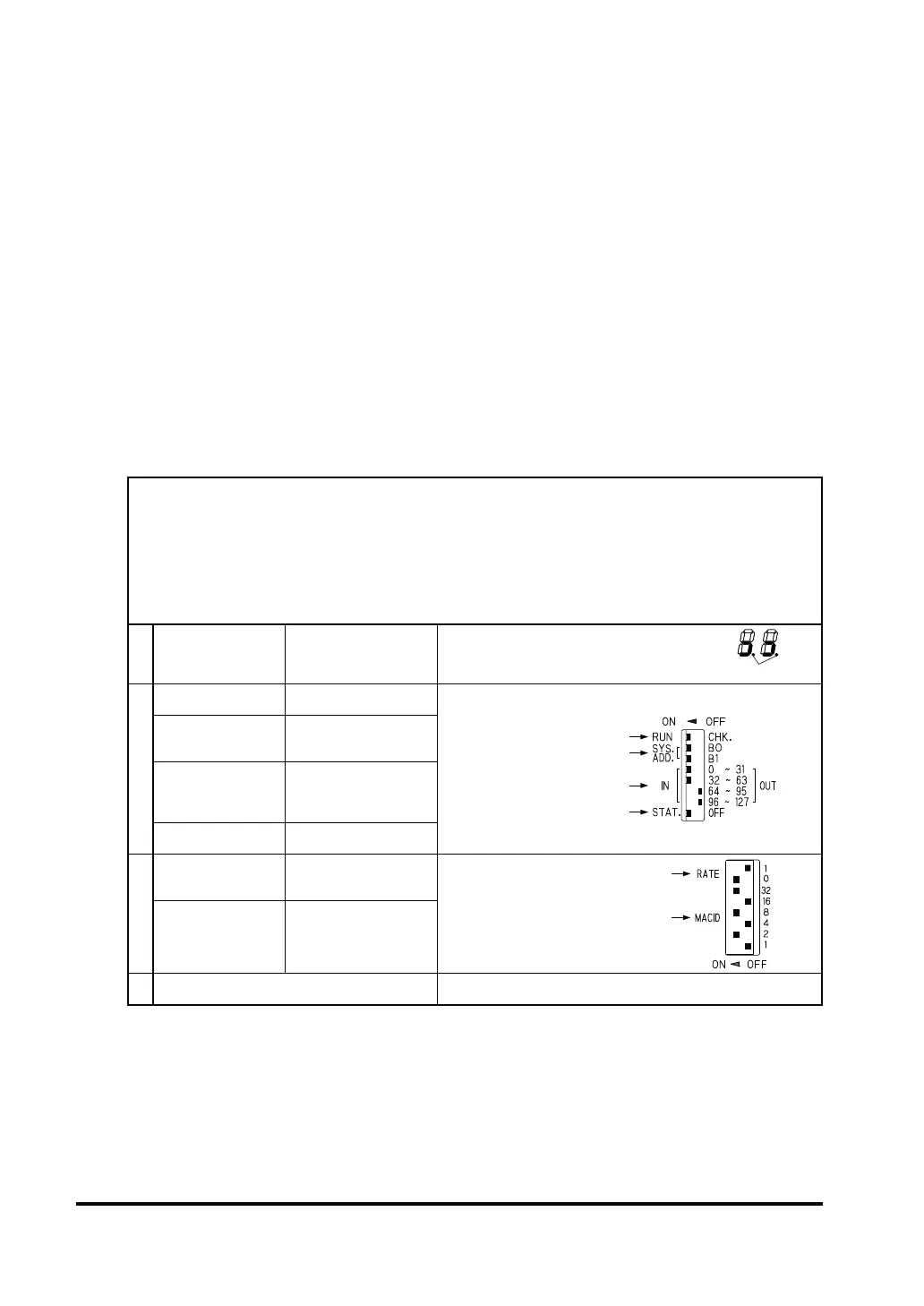

 Example of setting
1. S-LINK system side output setting in case of upper network failure
All outputs maintained
2. S-LINK system side setting
Mode setting: Operation mode
I/O channel No.: 128 Nos.
Address 0 to 63: Input, Address 64 to 127: Output
Status data: Added
3. DeviceNet side setting
Transmission speed: 250kbps
Address (MAC ID): 42
1
S-LINK system side
output setting in case
of upper network failure
Set to all outputs
maintained.
If set to all outputs maintained, decimal
points in the address display light up. (al-
ways-on)
Decimal points light up
2
Mode switch
(RUN/CHK.)
“RUN” side
Mode switch
I/O channel No. control switch
I/O setting switch
Status setting switch
I/O channel No. con-
trol switch (SYS.ADD.)
I/O channel No.: 128 Nos.
B0: ON side
B1: ON side
I/O setting switch
Address 0 to 31 : IN side
Address 32 to 63: IN side
Address 64 to 95: OUT side
Address 96 to 127: OUT side
Status setting switch
(STAT./OFF)
“STAT.” side
3
DeviceNet transmis-
sion speed setting
switch (RATE)
250kbps
DeviceNet transmission speed setting
DeviceNet address setting
DeviceNet address
setting switch (MAC
ID)
42
4 S-LINK system address recognition
The number of recognized S-LINK devices blinks in hexadecimal
form in the address display.
