11.6. Active Subwoofer (SB-HWA520)

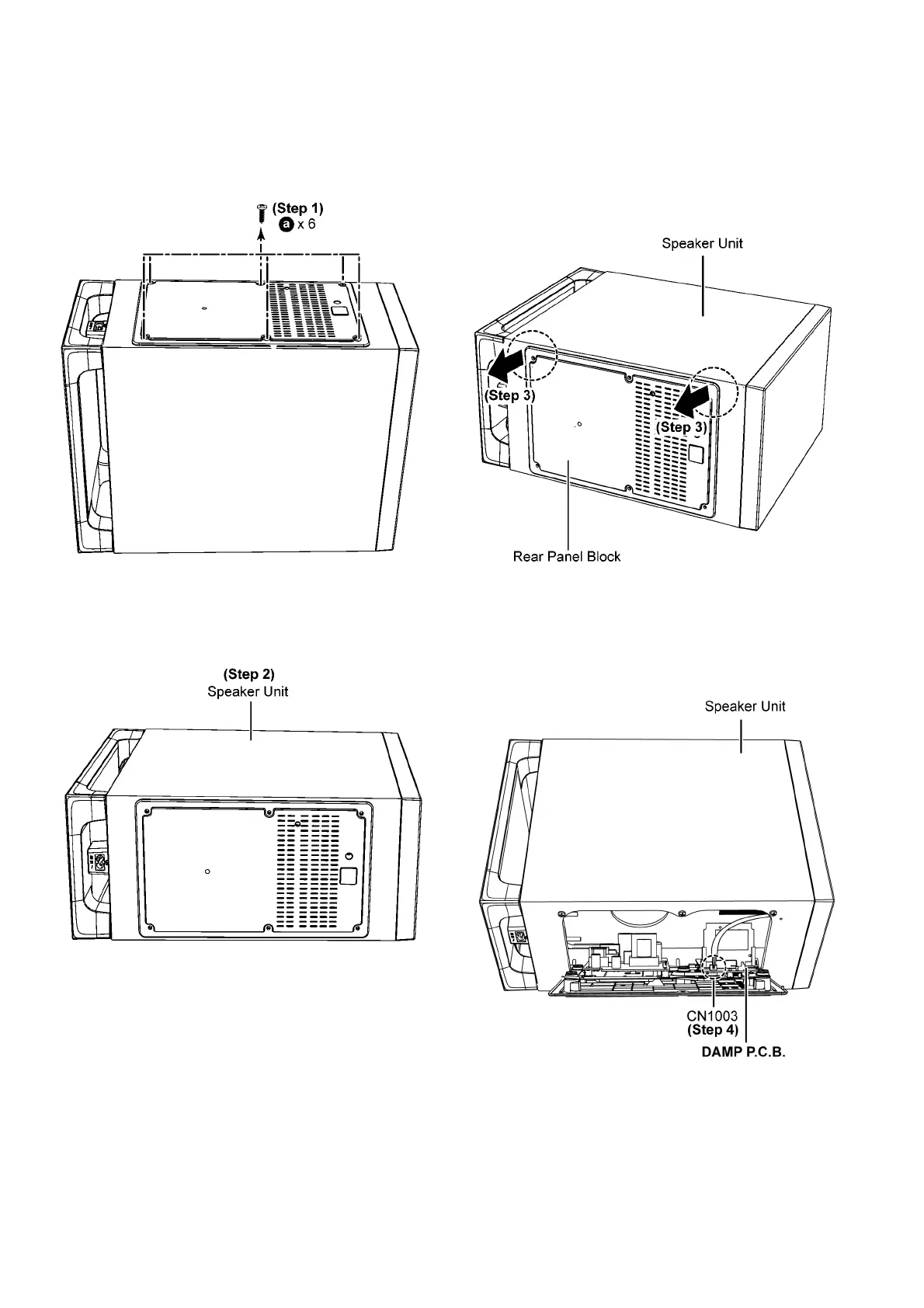

11.6.1. Disassembly of Rear Panel Block
Step 1 : Remove 6 screws.
Step 2 : Upset the Speaker Unit as shown.
Step 3 : Slightly lift out the Rear Panel Block as shown.
Caution : Do not exert too much force as it may damage
the wiring inside.
Step 4 : Detach 3P Cable Wire of the connector (CN1003) on
the DAMP P.C.B..
