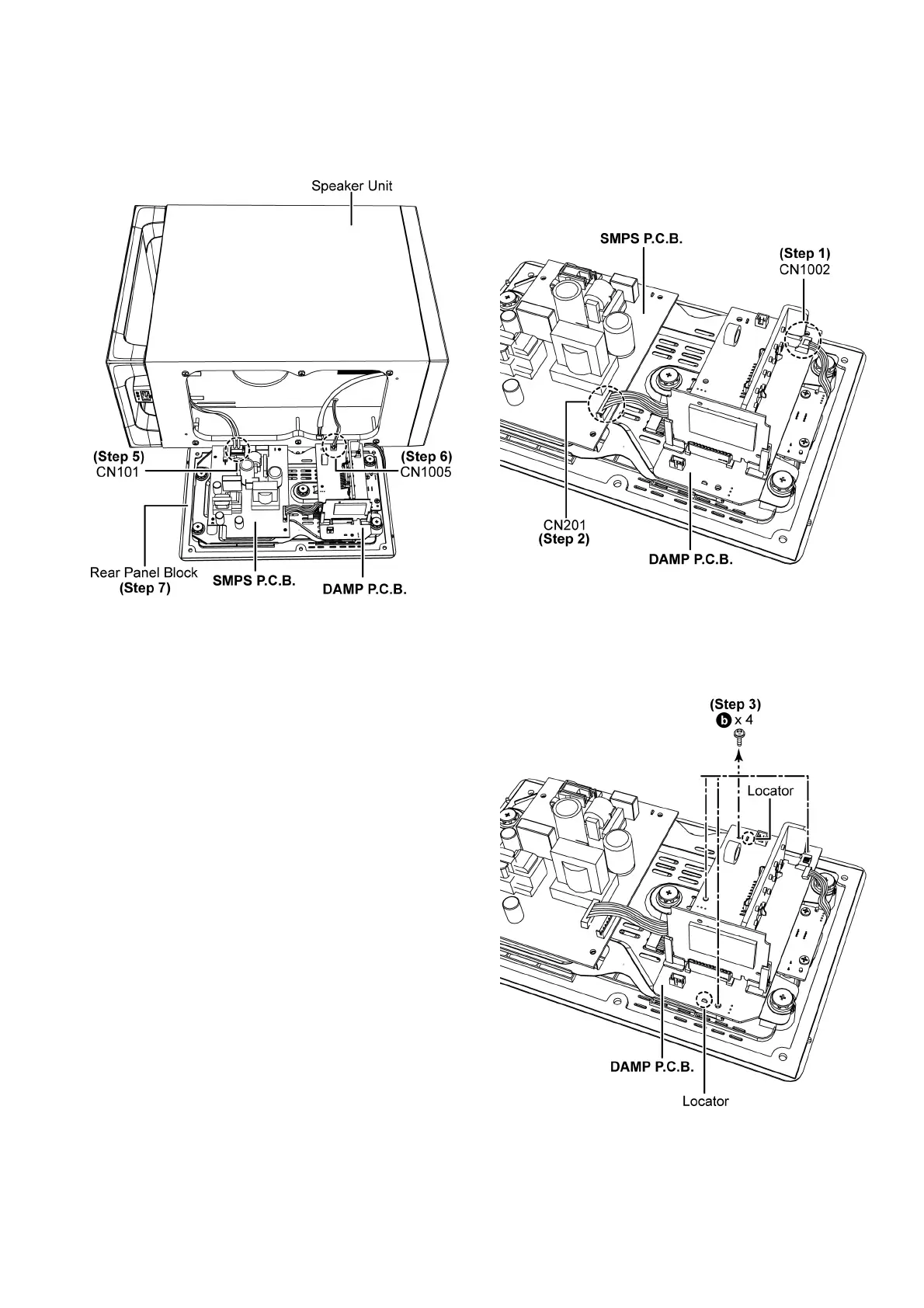

Step 5 : Detach 2P Cable Wire of the connector (CN101) on
the SMPS P.C.B..
Step 6 : Detach 2P Cable Wire of the connector (CN1005) on
the DAMP P.C.B..
Step 7 : Remove the Rear Panel Block.
11.6.2. Disassembly of DAMP P.C.B.
• Refer to “Disassembly of Rear Panel Block”.
Step 1 : Detach 4P Cable Wire from the connector (CN1002)
on the DAMP P.C.B..
Step 2 : Detach 7P Cable Wire from the connector (CN201) on
the SMPS P.C.B..
Step 3 : Remove 4 screws.
Caution : During assembling, ensure that the DAMP P.C.B.
is seated properly onto the locators.
