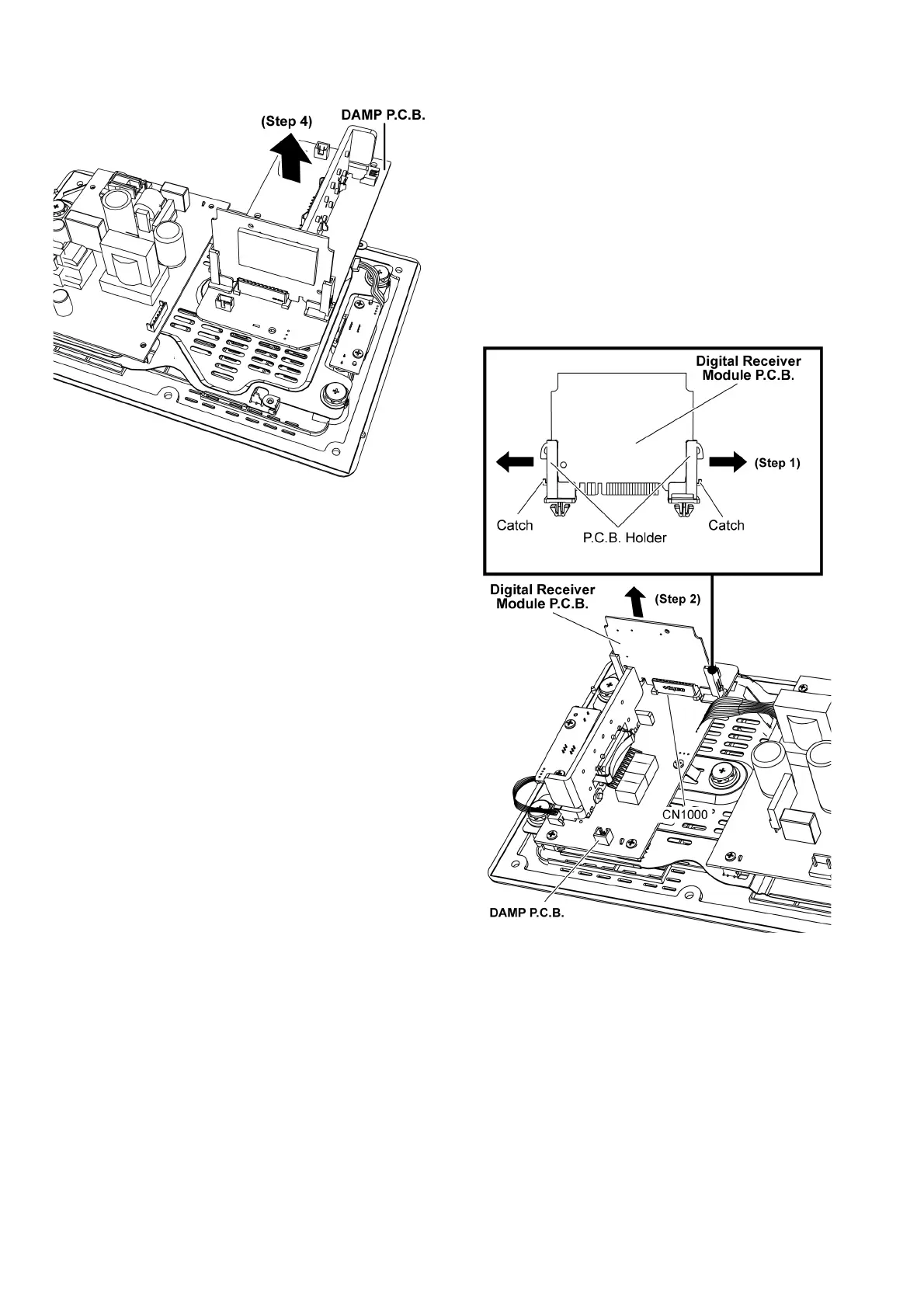

Step 4 : Remove the DAMP P.C.B. as shown.
11.6.3. Disassembly of Digital Receiver
Module P.C.B.
• Refer to “Disassembly of Rear Panel Block”.
• Refer to “Disassembly of DAMP P.C.B.”.
Step 1 : Release the P.C.B. Holders slightly outwards as
arrows shown.
Step 2 : Detach the Digital Receiver Module P.C.B. from the
connector (CN1000) on the DAMP P.C.B..
Caution : During assembling, ensure the Digital Receiver
Module P.C.B. is properly and fully inserted onto the con-
nector (CN1000) on the DAMP P.C.B. and locked by the
catches.
To Next Page
