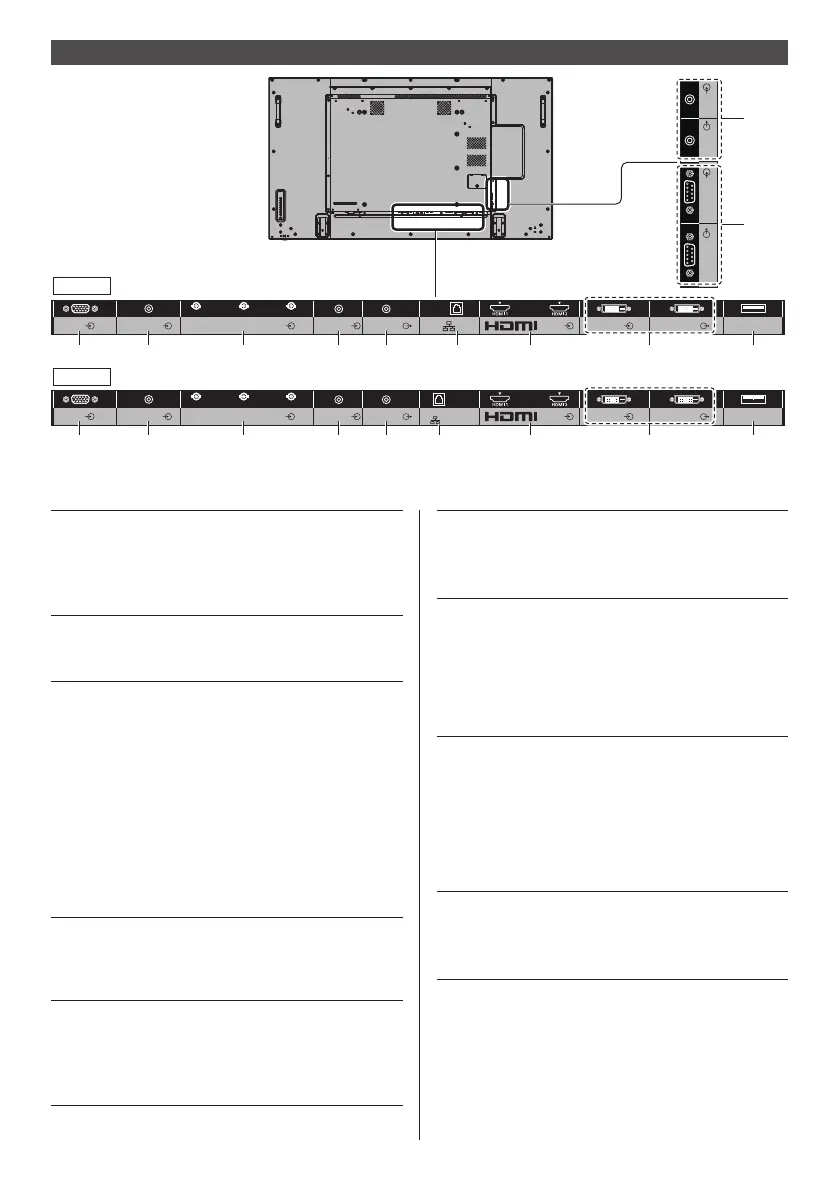

Panasonic th-42lf80w - Video and Audio Terminal Connections; Video Input Terminals; Audio Terminals

13
English
IR INSERIAL OUT IR OUTSERIAL IN
DIGITAL LINK
LAN
G/Y VIDEO
B/P
B/CB
R PR/CR
AUDIO1 IN AUDIO2 IN COMPONENT/RGB/VIDEO IN
DVI-D IN DVI-D OUT
AUDIO OUT
USB
PC IN
AV IN
G/Y VIDEO
B/P
B/CB
R PR/CR
AUDIO1 IN AUDIO2 IN COMPONENT/RGB/VIDEO IN
DVI-D IN DVI-D OUT
AUDIO OUT
USB
PC IN
AV IN
LAN
LF8
LF80
11
12
1 2 3 4 5 9 6 7 8
1 2 3 4 5 10 6 7 8
1 PC IN: PC Input Terminal
Connect to video terminal of PC,
video equipment with “YP
BPR /
YCBCR” or “RGB” output.
(see page 17)
2 AUDIO1 IN: Audio input terminal shared
with DVI-D IN and PC IN
(see page 16, 17)
3 COMPONENT /
RGB /
VIDEO IN:
COMPONENT / RGB Video
Input Terminal (R/P
R/CR, B/PB/
CB, G/Y)
Connect to video equipment
with “YP
BPR / YCBCR” or “RGB”
output.
(see page 19)
Composite Video Input
Terminal (VIDEO)
Connect to video equipment with
Composite signal output.
(see page 18)
4 AUDIO2 IN: Audio Input Terminal shared
with COMPONENT/RGB IN and
VIDEO IN
(see page 18, 19)
5 AUDIO OUT: Analogue Audio Output
Terminal
Connect to audio equipment with
analogue audio input terminal.
(see page 22)
6 AV IN
(HDMI 1,
HDMI 2):
HDMI Input Terminal
Connect to video equipment such
as VCR or DVD player, etc.
(see page 15)
7 DVI-D IN,
DVI-D OUT:
DVI-D Input / Output Terminal
Connect to video equipment
with DVI-D output. Also, when
displaying the picture by daisy
chaining multiple displays,
connect to the other display.
(see page 16)
8 USB: USB Memory Terminal
Connect the USB memory to use
the USB media player function.
Also, this can be used to supply
power of up to 5V/1A to an
external device when receiving
images.
(see page 22, 84)
9 LAN: LAN Terminal (LF8 series only)
Control the Display by connecting
to Network.
(see page 68)
Video equipment connection
