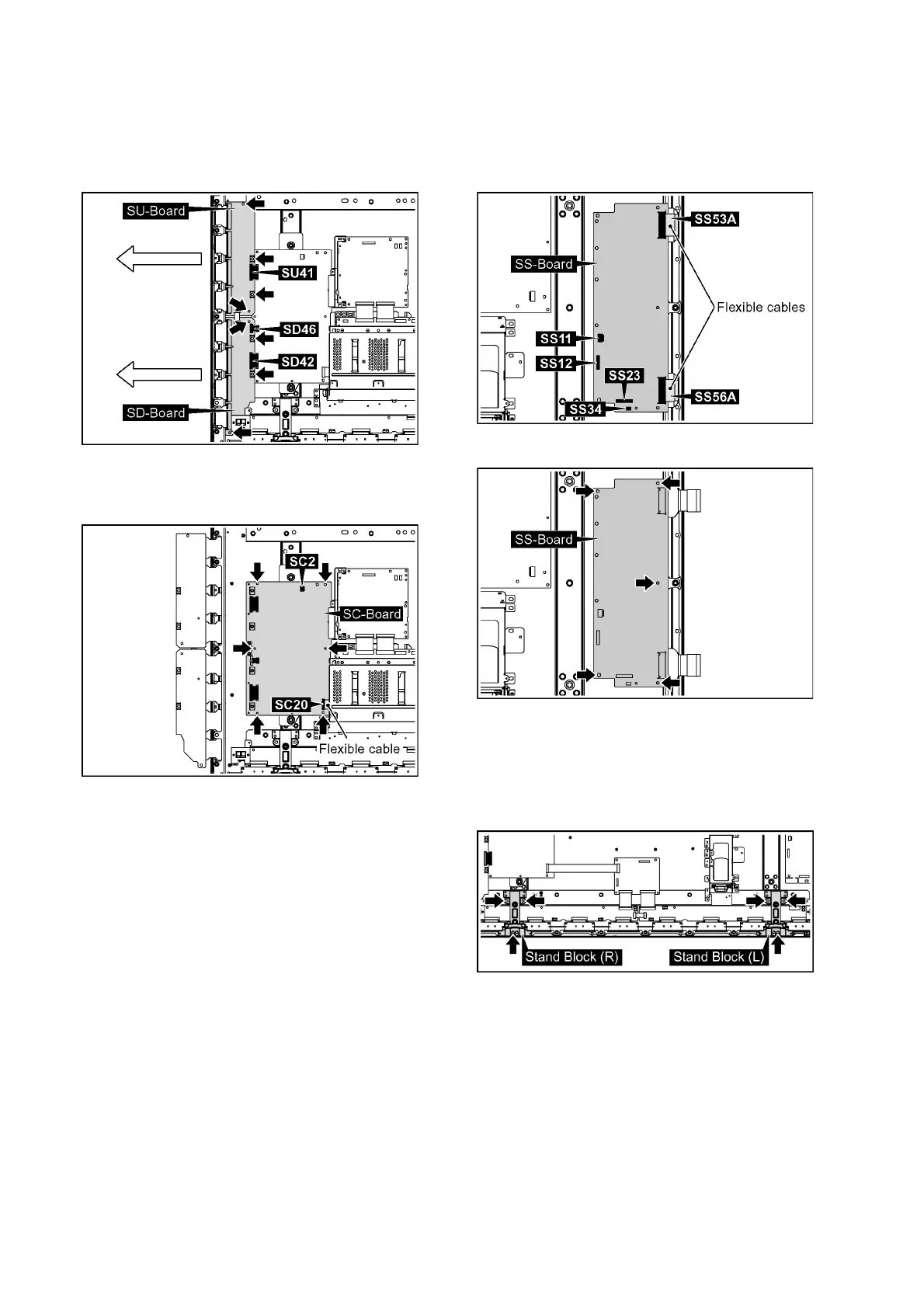

8.11. Removal of SC-Board
1. Disconnect the connectors (SU41, SD42, SD46).
2. Remove 8 screws.
3. Slide SU-Board and SD-Board to the left.
4. Disconnect the connector (SC2).
5. Remove the flexible cable from the connector (SC20).
6. Remove 6 screws and then remove SC-Board.
8.12. Removal of SS-Board
1. Disconnect the connectors (SS11, SS12, SS23, SS34).
2. Remove the flexible cables from the connectors (SS53A,
SS56A).
3. Remove 5 screws and then remove SS-Board.
8.13. Removal of C1, C2-Board
1. Remove the Slot Block.
(Refer to remove of Slot Block).
2. Remove 6 screws and then remove the Stand Block (L,
R).
